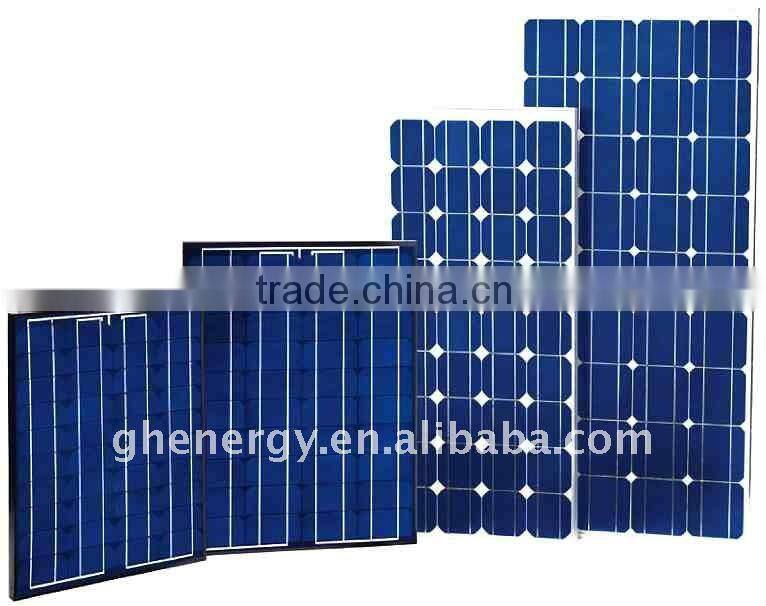

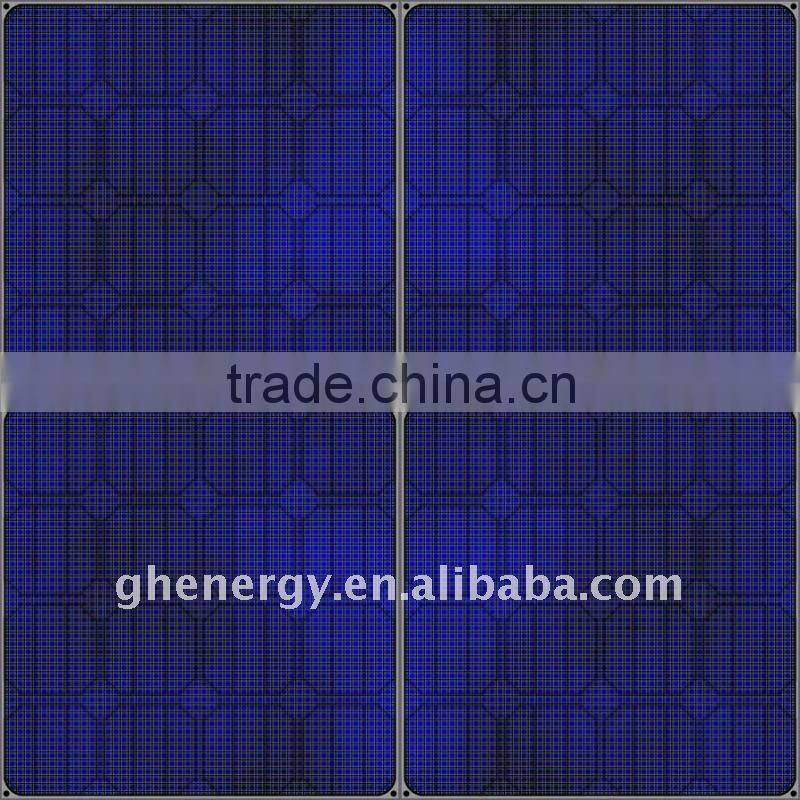

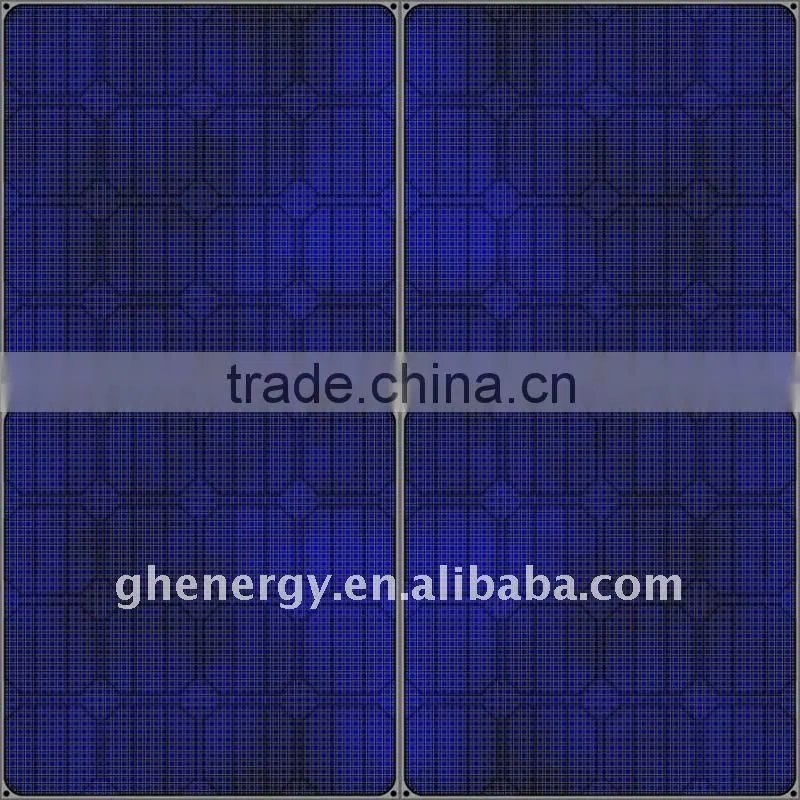

Monocrystalline Solar Electricity Panels Solar PV Panels

US$ 300 - 320 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Model Number:

GH-L-34

Zhejiang Ganghang Solar Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo/shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name GH

Model Number GH-L-34

Specification Normal

Application Home

Output Voltage (V) 34.3

Load Power (W) 280w

Solar Power (W) 260w

Work Time (h) 12h

Specifications

1).Solar module:280W
2).Certification:TUV/IEC61215&61730,UL1703/CSA,MCS,KAS,CE,RoHS,ISO9001:2008
3).Monocrystalline module

Monocrystalline Solar Electricity Panels Solar PV Panels Details:

Place of Origin: Zhejiang China (Mainland)	Brand Name: GH	Model Number: GH-L34-280W
Material: Monocrystalline Silicon	Size: 172899445MM	Number of Cells: 72pcs
Max. Power: 280W	Certification: TUV/IEC61215&61730,UL1703/CSA,MC...

Packaging & Delivery

Packaging Detail:	26pcs/carton 364pcs per 20'GP.
Delivery Detail:	1st delivery within 15-20 days from deposit 30%(negotiable)

Specifications

1).Solar panel:190W
2).Certification:TUV/IEC61215&61730,UL1703/CSA,MCS,KAS,CE,RoHS,ISO9001:2008
3).Monocrystalline

Electrical Data
MONO	GH-L--280W
Nominal peak power(Pmax)	280Wp
Maximum power voltage(Vmp)	36.7V
Maximum power current(Imp)	5.19A
Short-circuit current(Isc)	5.56A
Open circuit voltage(Voc)	44.8V
Optimized cell efficiency(η)	17.00%
Power tolerance:	±3%

Limits
Operating temperature	-40°C to +85°C
Maximum system voltage	1000VDC

Temperature and Coefficients
NOCT	48°C±2°C
Current temperature coefficient	%/K	0.06±0.01
Voltage temperature coefficient	mV/K	-(115±10)
Power temperature coefficient	%/K	-(0.5±0.05)
NOCT:Nominal Operation Cell Temperature

Additional Data
Number of cells and type of connection	72,serial connection
Dimensions	Length:1580mm Width:808mm Height:35mm
Net weight	14.80kgs/pc
Gross weight	418.8kgs/ctn(26pcs/ctn)
Package dimension	1620x860x1085mm
Container loading	728PCS/40'GP 26PCS/CTN 364PCS/20'GP 26PCS/CTN
STC: Irradiance of 1000W /m2, Air Mass of 1.5, Cell Temperature of 25°C

Guaranteed Power Output Warranted Tolerance: ±5%	15 year:90% of its nominal power rating
	25 year:80% of its nominal power rating
Impact Resistance	Can bear the force that is generated by one 227g
	steel ball fall down from 1m height
Warranty period	10 years:Materials and workmanship defects
Certificates	CE,ISO,IEC61215&61730(TUV),UL1703/CSA,MCS
Cells	Monocrystalline silicon photovoltaic cell
