Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Cell > 300W Monocrystalline High Efficiency PV Solar Panel

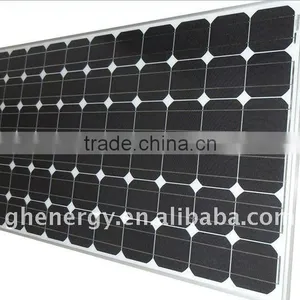

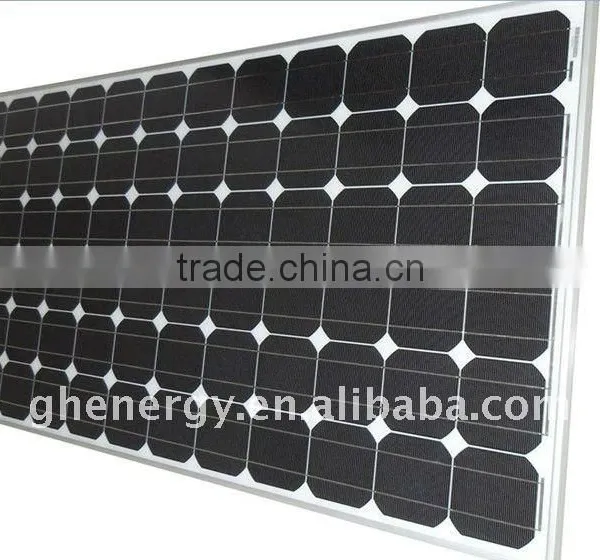

300W Monocrystalline High Efficiency PV Solar Panel

US$ 0.77 - 1 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Model Number:

GH182

Zhejiang Ganghang Solar Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name GH

Model Number GH182

Material Monocrystalline Silicon

Size 1956x992x45mm(

Number of Cells 72PCS

Max. Power 300W

Specifications

solar cell panels
Certifications: CE, IEC, TUV UL
Delivery time:10days
MOQ: 10PCS
Nice Service & Lowest price

300W Monocrystalline High Efficiency PV Solar Panel Details:

1.Monocrystalline solar panel 300W

2.Strict quality control and power classification of modules

3.High Effcient with competitive price

4.Be resistant to atmospheric exposure and effects of delaminatio

5.We can design grid solar system and off-grid solar system

specification of 300w pv solar panel:

Cell Type	Mono-crystalline Silicon Solar cells
Maximum power (Wp)	300wp
Maximum power voltage (V)	35.95V.
Maximum power current (A)	7.79A
Open circuit voltage (V)	44.31V
Short circuit current (A)	8.26A
Number of cells (Pcs)	72(6*12) PCS
Size of module (mm)	1956x992x45mm( 156*156mm cell)
Temperature Range	-40°C~+85°C
NOVT(Nominal Operating Cell Temperature)	47°C(±2°C)
Voltage temperature coefficient (VOC)	-0.35%/°C
Current temperature coefficient(ISC)	+0.04%/°C
Power temperature coefficient (Pmmp)	-0.5%/°C
Maximum system voltage (V)	1000V
Surface Maximum Load Capacity	60m/s(200kg/sq.m)
Allowable Hail Load	steel ball fall down from 1m height
Certificates	TUV,IEC,CE,ISO,CQC
Output tolerance (%)	±3%
Weight per piece (kg)	28KG
Glass Type	Tempered Glass
Junction Box Type	Passed the TUV certified
Length of Cables (mm)	900mm
Connector Type	MC4
Backside Foil Type	PVDF-W250 (0.349)
Frame (Material, Corners, etc.)	Aluminum
Cell Efficiency (%)	≥16.8%
Module Efficiency (%)	≥15.6%
FF (%)	77%
Standard Test Conditions	AM1.5 100mW/cm2 25’C
Warranty	5 years product warranty and 10years 90% of power
