125*125mm Mono 12v 100w Solar Panel PV Module

Name: 125*125mm Mono 12v 100w Solar Panel PV Module
Brand: Ganghang
SKU: 130616217
Availability: InStock

US$ 0.7 - 1.5 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Ganghang

Model Number:

GH-M-021

Zhejiang Ganghang Solar Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Ganghang

Model Number GH-M-021

Material Monocrystalline Silicon

Size 1150*680*35 mm

Number of Cells 36(4*9)

Max. Power 110W

Specifications

1.the 12v 100w solar panel:mono or poly silicon
2.warranty 25years
3.CE,TUV etc.
4.for home,inquiry,commercial use.

125*125mm Mono 12v 100w Solar Panel PV Module Details:

Main products: solar cell, solar panel, solar power system etc.
MOQ: 100pcs(sample order and trial order are welcomed)
Warranty: 6month-1year for solar cells, 5years product warranty,10years 90% and 20years 85% for solar panels, 1year for solar systems
OEM order: welcomed
Certificate: CE,TUV, UL etc.
Package: carton, wooden case or as your spec.
Delivery term: about 30days by sea

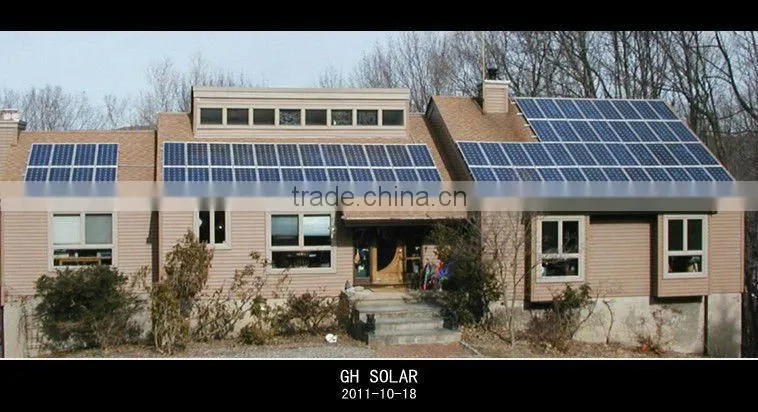

Widely used for electricity, home, industry, communication, navigation, irrigation, PV house and remote power requirements etc.

Parameter:

Model	GH-M-021
Pmax	110W
power tolerance:	±3%
Vmp	17.2V
Imp	6.4A
Voc	21.6V
Isc	7.2A
Pcs	36(4*9)
Cell Type	125*125 monocrystalline solar cell
Size	115068035 mm
Net weight	8kg
STC	1000W/m2,AM 1.5,25oC
Warranty	3 year warranty for products,10 years for 90% power ,25 years for 80% power
Accessory	3.2mm thick tempered glass,aluminium frame
Others	There are drainage holes on the Border components, eliminating the framework of deformation caused by rain or snow accumulated in the framework
