Help CenterJIHPUMP OEM Peristaltic Pump With Easy Install Panel of Flow Rate 750ml/min
Related Products
-
JIHPUMP OEM Peristaltic Pump Quick Install Panel Type of Flow Rate Less Than 1760ml/minUS$ 78 - 78MOQ: 1 Piece -
JIHPUMP OEM Peristaltic Pump Quick-install Panel Type of Flow Rate Less Than 5900ml/minUS$ 110 - 110MOQ: 1 Piece
-
JIHPUMP OEM Peristaltic Pump With Quick Install Panel Type of Flow Rate 930ml/minUS$ 78 - 78MOQ: 1 Piece
-
JIHPUMP OEM Peristaltic Pump Quick-install Panel Type of Flow Rate Less Than 1738ml/minUS$ 78 - 78MOQ: 1 Piece
-
JIHPUMP OEM Peristaltic Pump Quick-install Panel Type of Flow Rate Less Than 290ml/minUS$ 63 - 63MOQ: 1 Piece
| Transport Detergent:Washing Machines,Dishwashers | Analytical Instruments:Analytical Instruments Injection |
| Printing Equipment:Delivery Ink | Food Machinery:Beverage Machine |
| Warewashing Equipment:Warewashing Equipment | Laundry Equipment:Laundry Equipment t |
Max flow rate up to 750ml/min
Max Inside Diameter(ID) up to 6.4mm
Pump cover easy to dismount,convenient to replace tubing
DC gear motor(fixed speed),DC planetary gear motor,AC synchronous motor and stepper motor(adjustable speed) are available. The stepper motor has longer life and lower noise.
Pump cover in two colors for option(blue and transparent,no request will delivery in random)
Housing material:PC & PA66
Roller material:PA66 & MoS2
For operation at intervals,no requirement for flow rate accuracy,serious cost control,please select DC gear motor or AC synchronous motor.
For accurately controlled flow rate,longer lifetime motor demanded,please choose stepper motor.
For continuous long-term operation, please work at low speed (within 160r).
Specification
Item |
204K/ZLX-B16 |
204K/ZL-B16 |
204K/BT-B16 |
204K/TB-B16 |
|||||||
| Description | B for transparent pump cover,L for blue pump cover 16 for tube wall 1.6mm,24 for wall 2.4mm |
||||||||||
Speed |
150,300r | 160r |
0.1~300r |
5,10,30,60,100r | |||||||

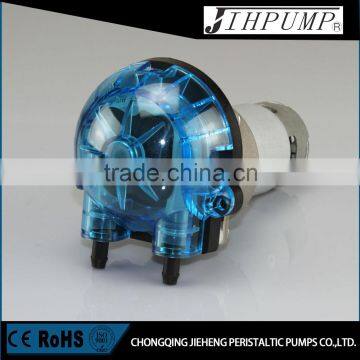

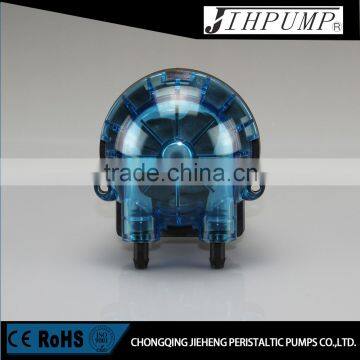

| Picture(without mounting panel) | |
|
|
|
|||||||

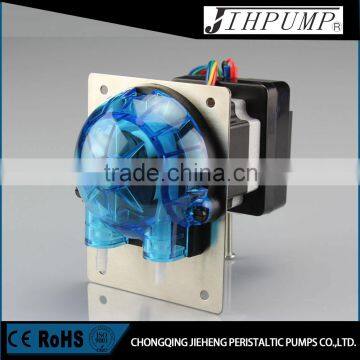

Picture(with stainless steel mounting panel) |
|
|
|
|
|||||||
Tubing |
25#(ID 4.8×wall 1.6mm),17#(ID 6.4×wall 1.6mm),15#(ID 4.8×wall 2.4mm), 24#(ID 6.4× wall 2.4mm) | ||||||||||
Flow rate |
109~750ml/min |
38~335ml/min | ≤750ml/min | 3.75~210ml/min | |||||||
Roller |
2 working rollers & 2 guiding rollers | ||||||||||
Power |
6-16W |
6-16W |
25-50W |
14W | |||||||
| Motor | DC planetary gear motor | DC gear motor |
57 type stepper motor (controller essential for operation, default is without controller) |
AC synchronous motor (fixed speed) |
|||||||
| Drive | Can be equipped with controller to fine tuning speed |
JIHPUMP controller for option | No need for controller,operate upon power on | ||||||||
Voltage |
24V (12V optional) | 6~36V |
220V50HZ(110V60HZ optional) | ||||||||
| Weight | 499g | 734g | 899g | 729g | |||||||
| Flow rate ( ml/min,media:Water) | |||||||||||
| Motor type | DC planetary motor | DC gear motor | Stepper motor | Synchronous motor |
|||||||
| Motor speed | 150--300 | 50 | 120 | 160 | 0-300 | 5 | 10 | 30 | 60 | 100 | |
15#(4.8×2.4) |
225--425 | 82.5 | 198 | 219 | 0-425 | 6 | 12 | 36 | 72 | 165 | |
25#(4.8×1.6) |
240--495 | 92 | 220 | 245 | 0-495 | 6.5 | 13 | 37 | 77 | 183 | |
17#(6.4×1.6) |
360--750 | 130 | 312 | 415 | 0-750 | 9.5 |
19 | 57 | 115 | 260 | |

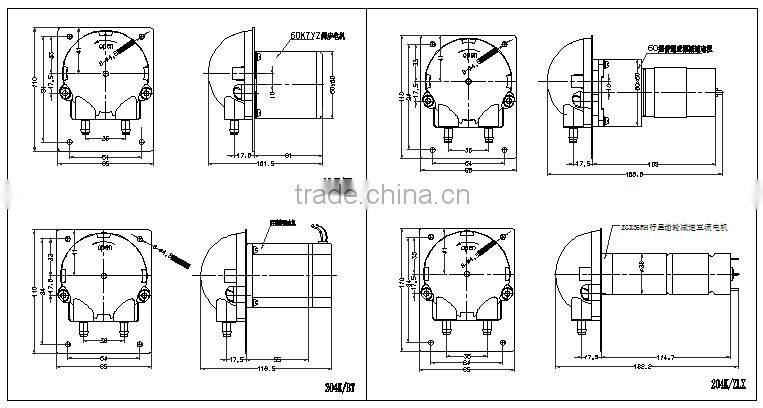

| Dimension | |||||||||||
| |||||||||||

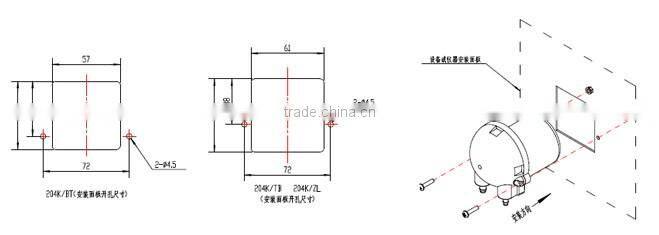

| Dimension of installation panel | |||||||||||
| |||||||||||
