JIHPUMP OEM Peristaltic Pump Quick-install Panel Type of Flow Rate Less Than 290ml/min

JIHPUMP OEM Peristaltic Pump Quick-install Panel Type of Flow Rate Less Than 290ml/min thumbnail-1
JIHPUMP OEM Peristaltic Pump Quick-install Panel Type of Flow Rate Less Than 290ml/min thumbnail-2
JIHPUMP OEM Peristaltic Pump Quick-install Panel Type of Flow Rate Less Than 290ml/min thumbnail-3
JIHPUMP OEM Peristaltic Pump Quick-install Panel Type of Flow Rate Less Than 290ml/min thumbnail-4
JIHPUMP OEM Peristaltic Pump Quick-install Panel Type of Flow Rate Less Than 290ml/min photo-1
JIHPUMP OEM Peristaltic Pump Quick-install Panel Type of Flow Rate Less Than 290ml/min photo-2
JIHPUMP OEM Peristaltic Pump Quick-install Panel Type of Flow Rate Less Than 290ml/min photo-3
JIHPUMP OEM Peristaltic Pump Quick-install Panel Type of Flow Rate Less Than 290ml/min photo-4
US$ 63 - 63 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
JIHPUMP
Model Number:
TH15
Contact Supplier Request Quote Chat Now
Chongqing Jieheng Peristaltic Pumps Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Chongqing, China
Brand Name JIHPUMP
Model Number TH15
Theory Rotary Pump
Structure Other, Peristaltic pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Other, Electricity
Pressure Low Pressure
Application Metering



Specification

Model

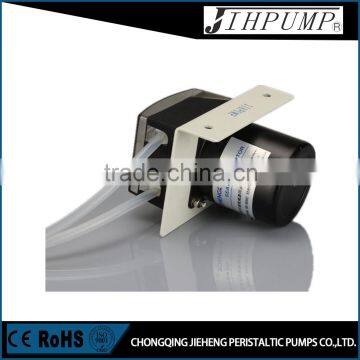

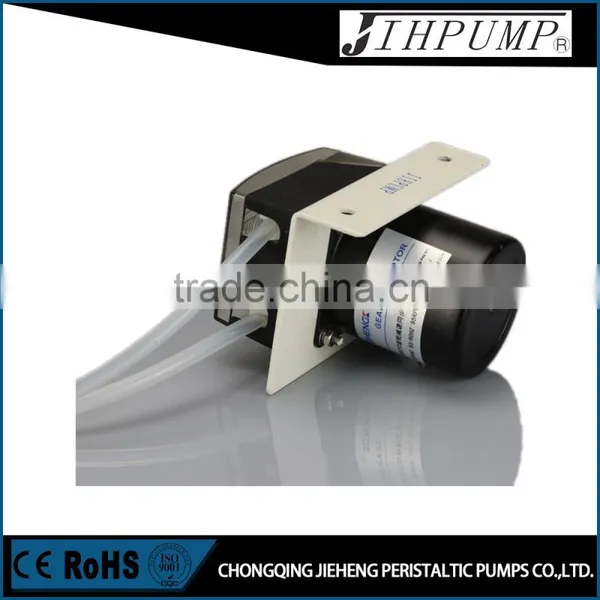

TH15/TB(AC motor)

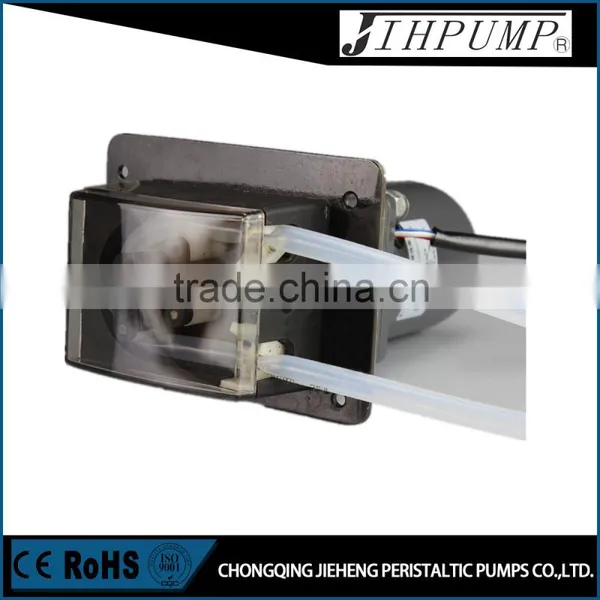

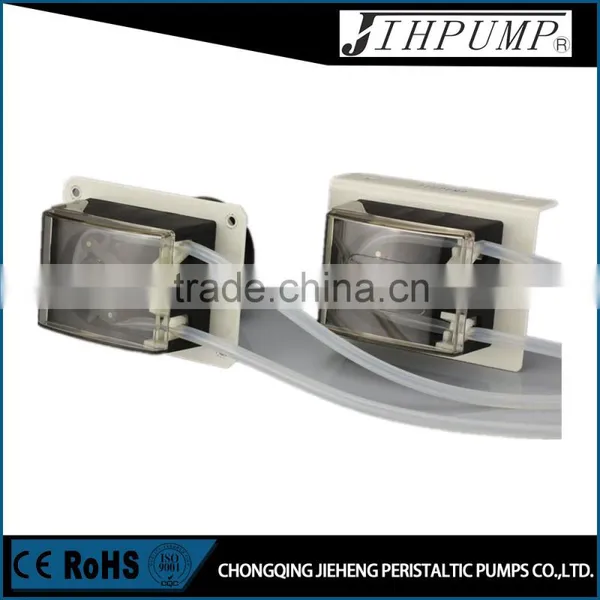

Mounting panel:straight or L-shaped optional

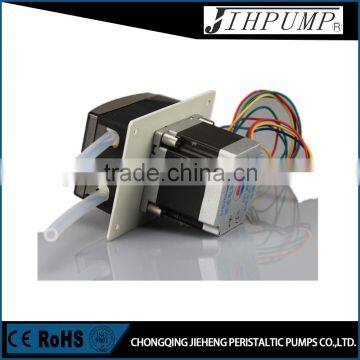

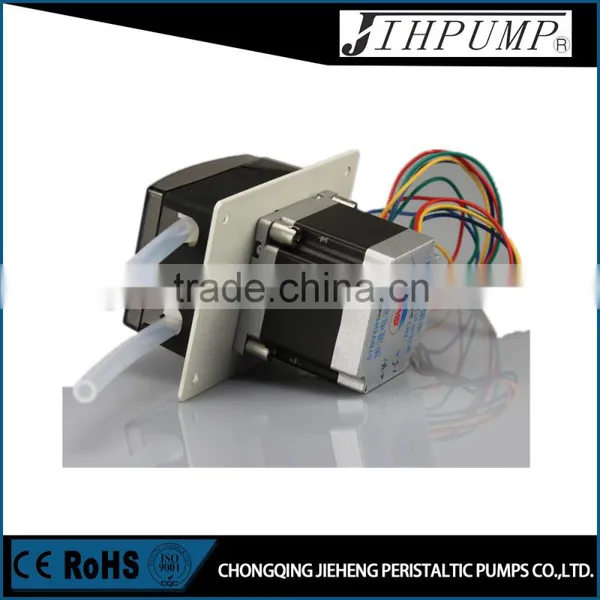

TH15/BT(stepper motor)

Mounting panel:straight or L-shaped optional
Flow Rate  0.9-280ml/min Constant speed or flow as indicate  0.001-290ml/min
Tube 14# 16# 25# 17#
Speed 5,30,60,100rpm 57 Stepper Motor(0~100rpm,controller optional)
Application Install on the device or instrument panel,such as flue gas analyzer,condenser,etc.
Picture  JIHPUMP OEM peristaltic pump quick-install panel type of flow rate less than 290ml/min  JIHPUMP OEM peristaltic pump quick-install panel type of flow rate less than 290ml/min

Flow Rate (ml/min,media:Water)
Motor

AC Synchronous Motor

Stepper Motor
Speed/rpm

5

30

60

100

50

100
14#(1.6×1.6)

0.9

6.2

12.5

18.5

8.5

18.5
16#(3.2×1.6)

5.2

22.5

43

80

35

72

25#(4.8×1.6)

8.4

52

103

160

70

140
17#(6.4×1.6)

14.5

86

166

280

125

245

Note:Run clockwise can get large flow,and operation counterclockwise can get biger outlet pressure.
          Load import tube or harder tube,please counterclockwise operation to increase the pressure tube torque.
Feature:1.Rollers made by imported nylon,not become brittle;solid but not brittle
              2. A special part link the roller box with motor shaft to ensures stable
              3. Snaps into the tube,not slippery silk,more fixture
              4. Crust use streamlined design,With card bit,easily snaps into the pump





 Dimension
 JIHPUMP OEM peristaltic pump quick-install panel type of flow rate less than 290ml/min

 JIHPUMP OEM peristaltic pump quick-install panel type of flow rate less than 290ml/minJIHPUMP OEM peristaltic pump quick-install panel type of flow rate less than 290ml/min
