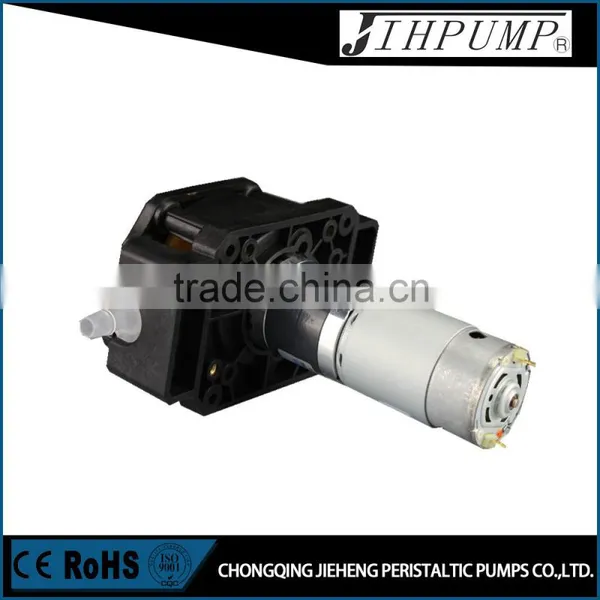

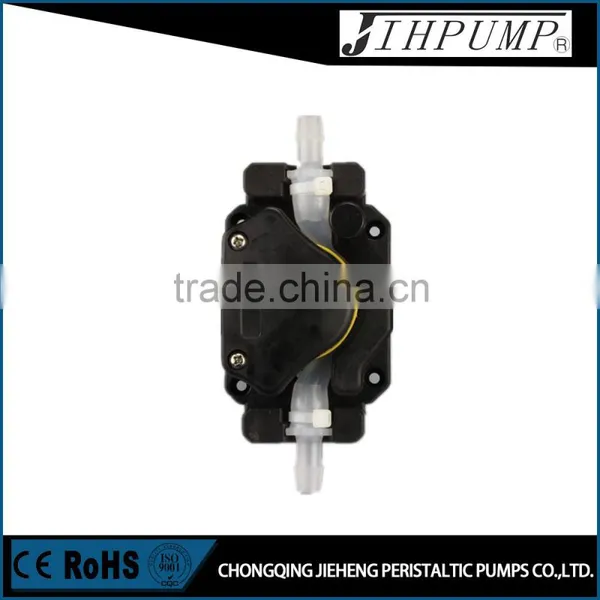

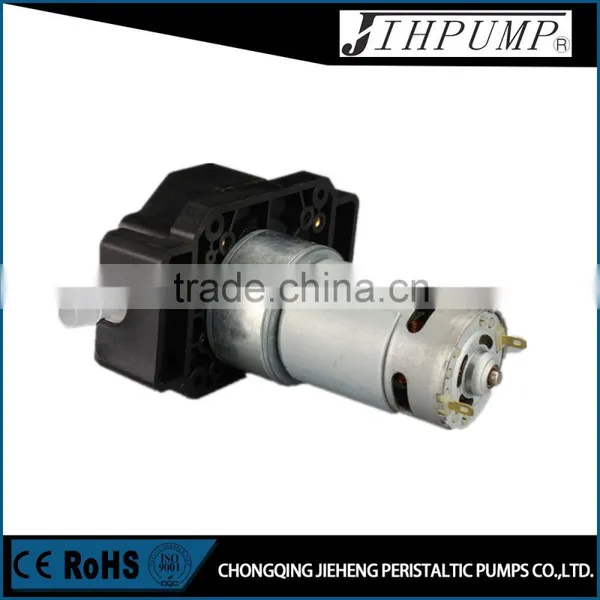

JIHPUMP OEM Peristaltic Pump Quick-install Panel Type of Flow Rate Less Than 1738ml/min
US$ 78 - 78
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
JIHPUMP
Model Number:
313KA
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
JIHPUMP OEM Peristaltic Pump Quick-install Panel Type of Flow Rate Less Than 290ml/minUS$ 63 - 63MOQ: 1 Piece -
JIHPUMP OEM Peristaltic Pump Quick Install Panel Type of Flow Rate Less Than 200ml/minUS$ 20 - 60MOQ: 5 Pieces
-
JIHPUMP Quick Install Panel Type OEM Peristaltic Pump of Flow Rate 3600ml/minUS$ 50 - 100MOQ: 1 Piece
-
JIHPUMP OEM Peristaltic Pump Easy Install Support Type of Flow Rate Less Than 33.9ml/minUS$ 100 - 200MOQ: 10 Pieces
-
Peristaltic Pump Used in Beverage Machine for Transfer Juice Model 203KA With DC MotorUS$ 50 - 100MOQ: 50 Pieces
Place of Origin
Chongqing, China
Brand Name
JIHPUMP
Model Number
313KA
Theory
Rotary Pump
Structure
Other, Peristaltic pump
Usage
Water
Power
Electric
Standard or Nonstandard
Standard
Fuel
Other, Electricity
Pressure
Low Pressure
Application
Metering
Typical application
| Pumping detergent:washing machine,dishwashing machine etc. | Analytical instrument:test sampling |
| Printing equipment:pumping ink | Food machinery:beverage,coke syrup machine etc. |
| Kitchen equipment | Laundry equipment |
Feature
1. JIHPUMP newest peristaltic pump researched and developed by Jieheng Co,provided with advanced technology and reliable
quality
2. Entrance and exit of pumped fluid are on a straight line,in the vertical route system,fluid can pass by via the shortest path
3. Dismountable press-tubing structure,to ensure operator to change tubing very quickly
4. 3-roller design,to guarantee flow rate maximization
5. Compact structure design,to occupy minimal space and offer more possibilities for your system minimization
6. Assemble tubing 24# & 35# of wall 2.4mm,to pump viscous fluid easily
7. Stepper motor,DC gear motor,DC planetary gear motor & DC brushless planetary gear motor available
8. Mounting hole designed on pump base,no need to prepare mounting panel by users,to save application cost
Parameter
| Model # | 313KA/ZLX | 313KA/ZL | 313KA/WTT | 313KA/BT | |
| Rotation speed | 150rpm, 300rpm | 166rpm, 326rpm | 150~290rpm | 0.1~300rpm | |
| Product picture | |
|
|
|
|
| Tubing | 24# (ID 6.4mm,wall 2.4mm) 35# (ID 7.9mm,wall 2.4mm) |
||||
| Flow rate | 975~1433ml/min | 537~1738ml/min | 467~1380ml/min | ≤1500ml/min | |
| Motor power | 48W | 6-16W | 48W | 72W | |
| Motor | DC planetary gear motor | DC gear motor | DC brushless planetary gear motor | stepper motor | |
| Drive | JIHPUMP controller for DC motor optional(pulse width governing speed) | with drive itself | driver optional,please select JIHPUMP controller for stepper motor | ||
| Operation voltage | 12V,24V | 12V,24V | 12V,24V | 6~36V | |
| Product weight | 620g | 735g | 615g | 920g | |
| Pump material | PA66 | ||||
| Roller material | Swiss high-function plastics | ||||
Flow rate(ml/min,medium:water)
| Model # | 313KA/ZLX | 313KA/ZL | 313KA/WTT | 313KA/BT | |
| Rotation speed | 300rpm | 166rpm | 326rpm | 150~290rpm | 0-300rpm |
| 24#(6.4×2.4) | 975 | 537 | 1055 | 467-902 | 0-975 |
| 35#(7.9×2.4) | 1433 | 885 | 1738 | 714-1380 | 0-1500 |

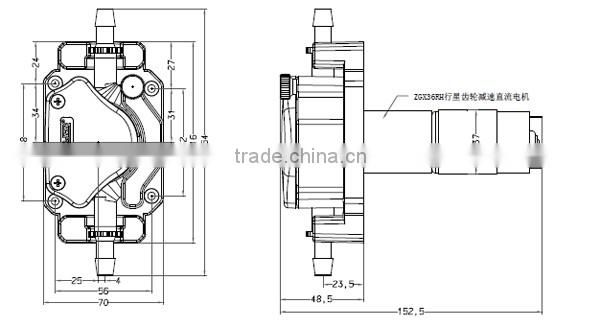

Dimension (313KA/ZLX)

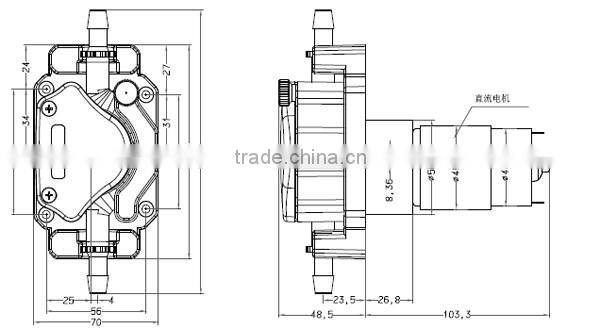

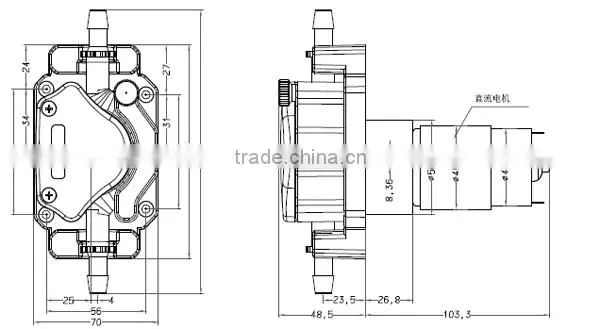

Dimension (313KA/ZL)

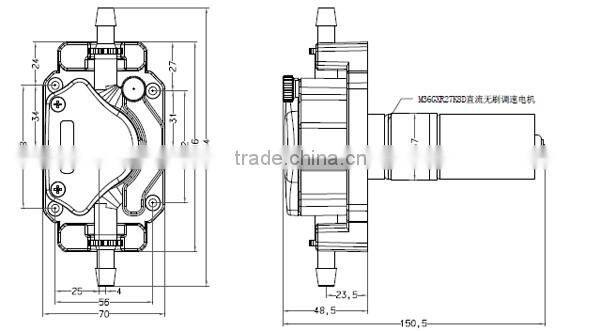

Dimension (313KA/WTT)

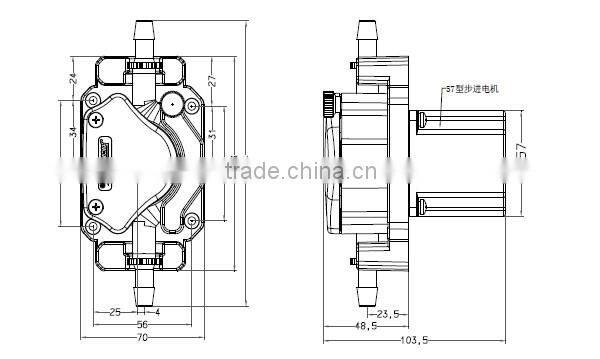

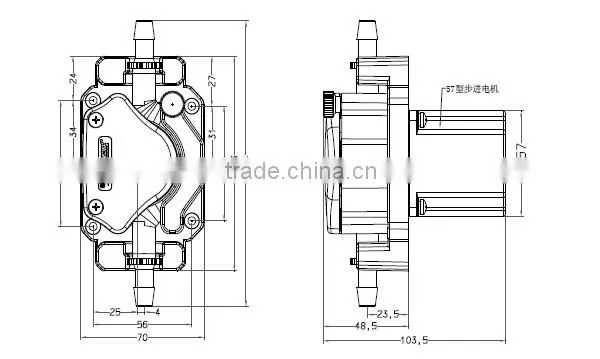

Dimension (313KA/BT)
