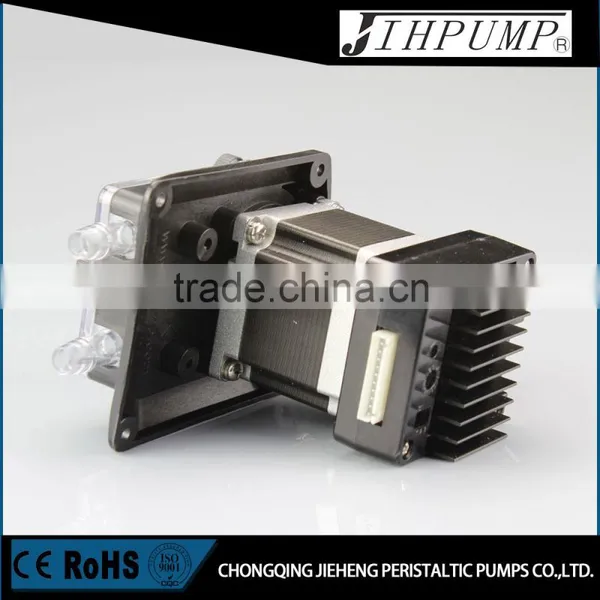

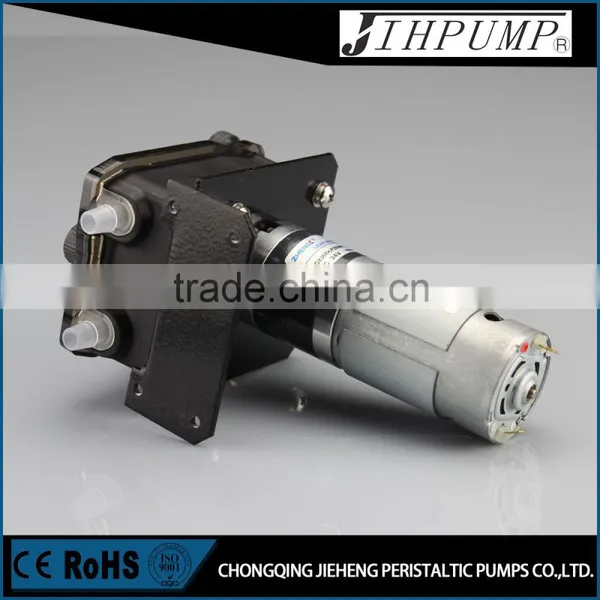

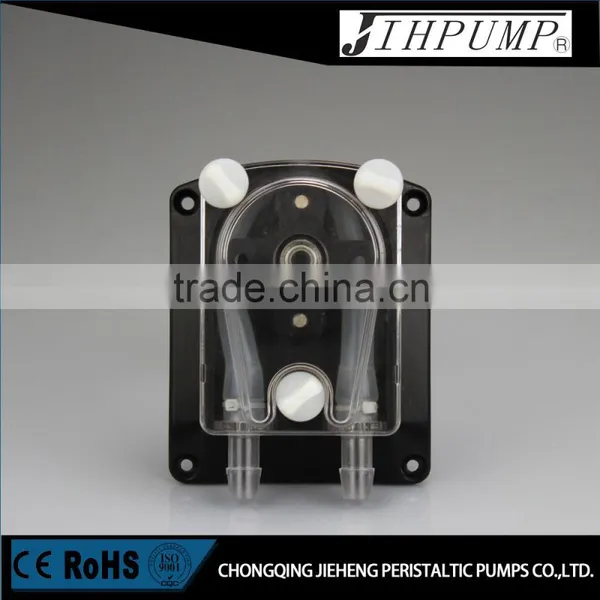

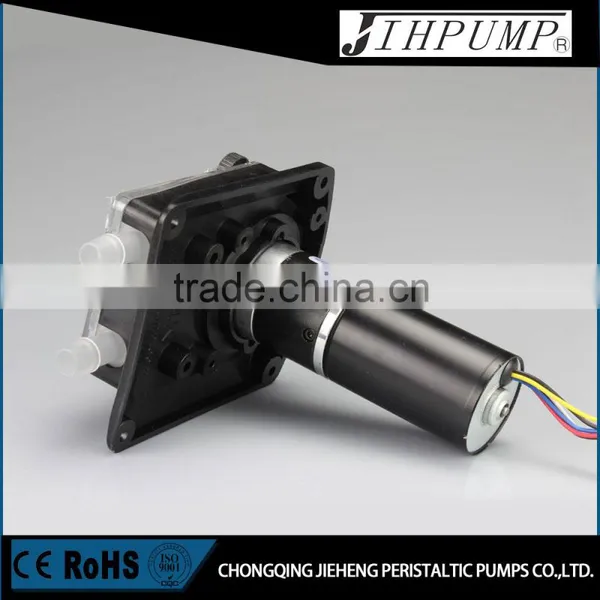

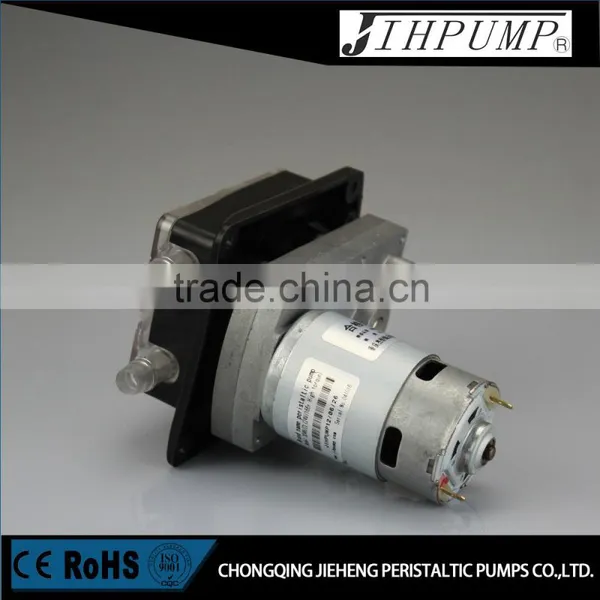

JIHPUMP OEM peristaltic pump quick install panel type of flow rate less than 1760ml/min
- 5000 Piece / Pieces per Month
- China port
- T/T D/P D/A
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Chongqing, China | Brand Name: | JIHPUMP | Model Number: | 304K |
Theory: | Rotary Pump | Structure: | Other, Peristaltic pump | Usage: | Water |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, Electricity |
Pressure: | Low Pressure | Application: | Metering |
Product Description
Transport Detergent:Washing Machines,Dishwashers | Analytical Instruments:Analytical Instruments Injection |
Printing Equipment:Delivery Ink | Food Machinery:Beverage Machine |
Warewashing Equipment:Warewashing Equipment | Laundry Equipment:Laundry Equipment |
1. Max Flow Rate up to 1500ml/min
2. uitable for 24#,35# tube,for inner diameter 6.4mm and 7.9mm
3. Easy to load the pump cover and tube
4. Can equipped with a fixed speed DC gear motor,DC planetary gear motor and stepper motor(Speed
adjstable).The stepper motor can meet the demand of motor long life low noise running
Crust Material:PC,PA66
Roller Material:Nylon+MoS2
Item | 304K/ZLX (DC motor) | 304K/ZL (DC motor) | 304K/WTT (DC brushless planetary motor) | 304K/BT (stepper motor) | |||
Speed | 150,300rpm | 120r,135r,166rpm | 150-290rpm | 0.1~300r | |||
Picture | |||||||
Tube | Can be fitted with 24#(ID6.4mm,wall 2.4mm) and 35#(ID 7.9mm,wall 2.4mm) | ||||||
Flow Rate | ≤1760ml/min | ≤900ml/min | 469-1578ml/min | ≤1760ml/min | |||
Power | 6-16W | 6-16W | 48W | 30-50W | |||
Power Type | DC planetary gear motor | DC gear motor | 36 type DC brushless governing-speed motor | 57 Stepper motor | |||
Drive | DC speed control board can be equipped with fine-tune speed(PWM speed) | DC brushless planetary gear motor | Drive motor in optional,include Type A(Inner-velometer) and Type B(External-velometer) | ||||
Voltage | 12V,24V | 12V,24V | 24V | 6~36V | |||
Weight | 0.6KG | 0.6KG | 565g | 0.8KG | |||
Flow Rate (ml/min, Medium:Water) | |||||||
Motor | DC planetary motor | DC motor | DC brushless planetary motor | Stepper motor | |||
Speed | 150rpm | 300rpm | 50rpm | 120rpm | 166rpm | 150-290rpm | 0-300rpm |
24#(6.4×2.4) | 670 | 1340 | 204 | 490 | 700 | 469-908 | 0-1000 |
35#(7.9×2.4) | 880 | 1760 | 265 | 636 | 880 | 816-1578 | 0-1500 |
304K/ZLX Dimension
304K/ZL Dimension
304K/WTT Dimension
304K/BT Dimension
