Help CenterJIHPUMP OEM Peristaltic Pump Quick-install Panel Colorful Type of Flow Rate Less Than 88ml/min
Related Products
-
JIHPUMP OEM Peristaltic Pump Quick Install Panel Colorful Type of Flow Rate Less Than 115ml/minUS$ 54 - 54MOQ: 1 Piece -
JIHPUMP OEM Peristaltic Pump Quick-install Panel Colorful Type of Flow Rate Less Than 140ml/minUS$ 46 - 46MOQ: 1 Piece
-
JIHPUMP OEM Peristaltic Pump With Easy Install Panel of Flow Rate 750ml/minUS$ 62 - 62MOQ: 1 Piece
-
JIHPUMP OEM Peristaltic Pump Quick Install Panel Type of Flow Rate Less Than 1760ml/minUS$ 78 - 78MOQ: 1 Piece
-
JIHPUMP OEM Peristaltic Pump Quick-install Panel Type of Flow Rate Less Than 5900ml/minUS$ 110 - 110MOQ: 1 Piece
| Detergent delivery:such as washing machines,dishwashers | Analytical Instruments:Analytical instrumentation injector |
| Printing Equipment:transportation Ink | Food machinery:such as drinks machine |
| Kitchen Equipment: Warewashing Equipment | Laundry facilities: Laundry Equipment |
| Car wash equipment: Car wash Equipment | Analysis equipment: Analytical Equipment |

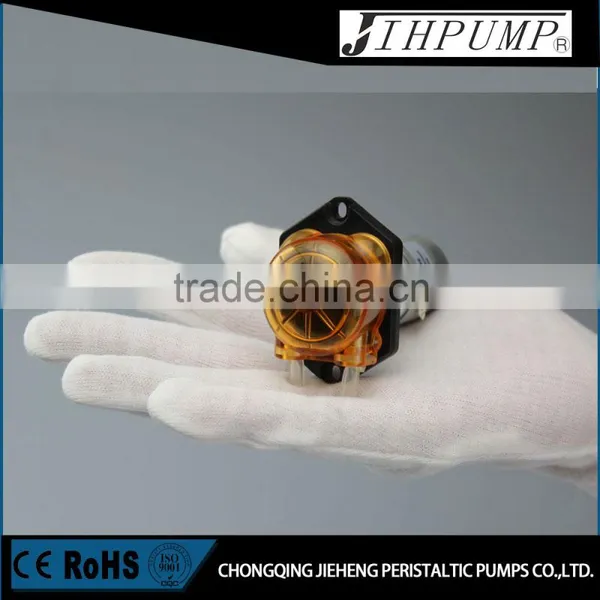

1. New products in 2013,mini peristaltic pump,compact,ultra-small size,width only 40mm,maximum flow rate only 96ml/min
2. Can be installed side by side to save space,fully compatible with the market similar friction peristaltic pump
3. Three roller wheels,fit hose with 1mm thickness,the maximum diameter of up to 4mm,without chucking pipe fittings
4. Precision molding technology,perfect industrial design,tool-free disassembly pump cover,easy to replace hose
5. Plastics with echanced functionality,and high functional plastic wheel,excellent resistance to corrosion
6. Can be equipped with fixed-speed normal DC gear motor,DC planetary gear motor(Quantitative) and the stepper motor(Optional drives,variable flow); the stepper motor can meet the long-life low-noise motor operation requirements.

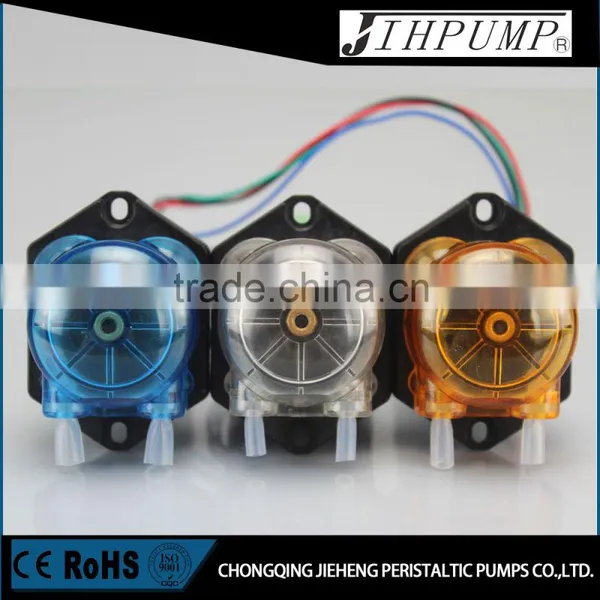

7. There are three color pump cover in optional(Transparent color,blue,yellow,no claim will be randomly shipped)
1. Please use high speed in gap.For no flow accuracy requirement and strict cost control,please use ordinary DC gear motor or DC planetary gear motor.Requires precise control of flow and high requirements for motor life suggested to use stepper motor.
2. Continuous long-term operation,please running with lower speed(150RPM or less)
MN1 mini peristaltic pump can be equipped with ordinary DC gear motor,DC planetary gear motor,AC synchronous motor. | ||
|
|
|

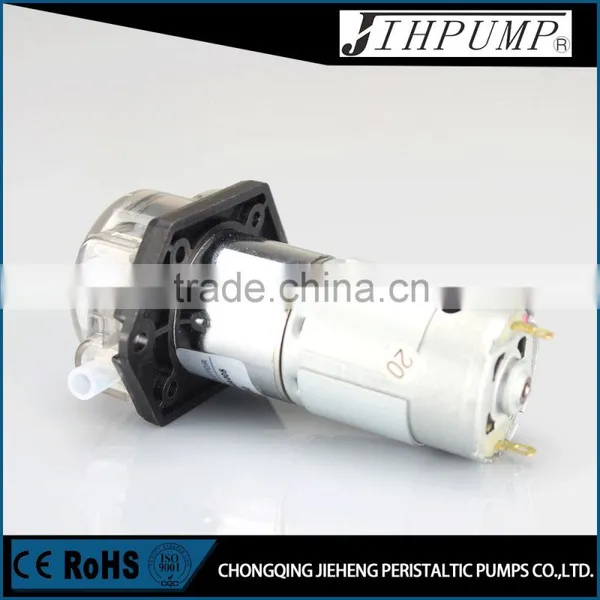

| MN1/ZL(DC motor) Ordinary DC gear motor |

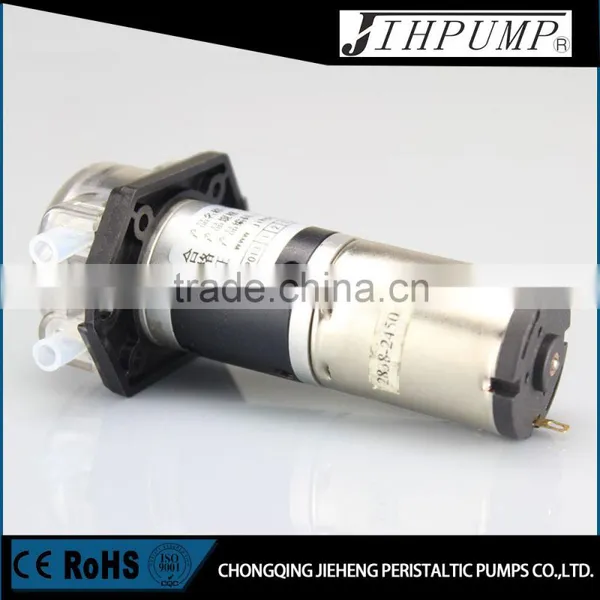

MN1/ZLX(DC motor) DC planetary gear motor |

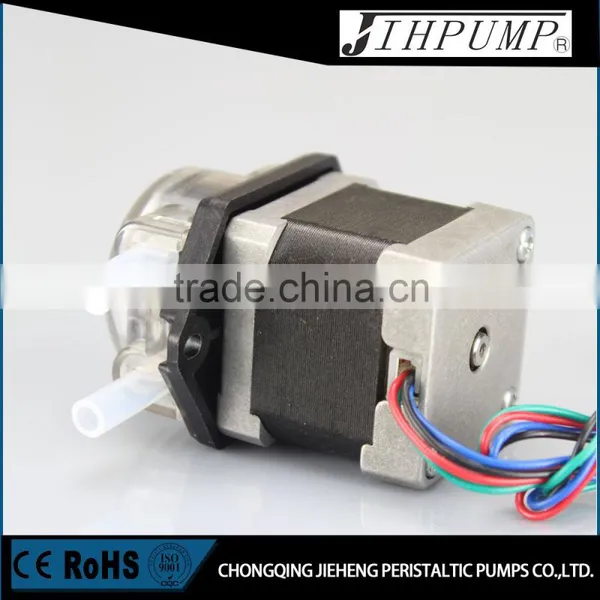

MN1/BT(stepper motor) Stepper motor |
| ||
| Items | MN1/ZL/ZLX(DC motor) |
MN1/BT(stepper motor) |
| Speed | Gear motors speed:5/60/100/150/200RPM Planetary gear motor:100/150/200/250RPM |
0.1~200r |
| Tube | Fitted the hose with 1mm thickness | |
| 2×1,3×1,4×1 | ||
| Flow rate | 2-96ml/min | 0-96ml/min |
| Rollers | 3 | |
| Motor power | 3-12W | 5-30W |
| Motor | 28 type DC gear motor Lower noise and longer life of planetary gear motor in optional,but the price is slightly expensive |
35 type stepper motor,need to equipped with stepper drive before running,standard non-drive |
| Drives | Speed can been adjusted by DC converter board | Three drive control board in optional,Click to view details |
| Voltage | 24V(6V,12V in Optional) | Supply voltage 6~36V |
| Material | Pump body PA66+30GF,cover PC,roller PA66+MuS2 | |
| Weight | MN1/ZLX:288g MN1/ZL:240g | MN1/BT:375g |
| Rubber foot pad |
|
|
ID*Thickness |
2×1 |
3×1 |
4×1 |
5rpm |
0.7 |
1.3 |
2.2 |
10rpm |
1.5 |
2.7 |
4.4 |
30rpm |
4.3 |
8 |
13.2 |
|
50rpm |
7.2 |
13.7 |
22 |
60rpm |
8.7 |
16.5 |
26.4 |
65rpm |
9.5 |
17.8 |
28.6 |
100rpm |
14.5 |
27.5 |
44 |
|
150rpm |
21 |
41 |
66 |
200rpm |
29 |
55 |
88 |
Flow description |
As there is an inaccuracy for DC motor speed,with the actual output speed changes,the actual flow of the peristaltic pump will change,please give full consideration of this factor when selection. | ||
