Help CenterJIHPUMP OEM Peristaltic Pump Quick Install Panel Colorful Type of Flow Rate Less Than 115ml/min
Related Products
-
JIHPUMP OEM Peristaltic Pump Quick-install Panel Colorful Type of Flow Rate Less Than 140ml/minUS$ 46 - 46MOQ: 1 Piece -
JIHPUMP OEM Peristaltic Pump With Easy Install Panel of Flow Rate 750ml/minUS$ 62 - 62MOQ: 1 Piece
-
JIHPUMP OEM Peristaltic Pump Quick Install Panel Type of Flow Rate Less Than 1760ml/minUS$ 78 - 78MOQ: 1 Piece
-
JIHPUMP OEM Peristaltic Pump Quick-install Panel Type of Flow Rate Less Than 5900ml/minUS$ 110 - 110MOQ: 1 Piece
-
JIHPUMP OEM Peristaltic Pump With Quick Install Panel Type of Flow Rate 930ml/minUS$ 78 - 78MOQ: 1 Piece
| Pump detergent:washing machine,dish-washing machine etc. | Analytical instrument:sampling for analyzer |
| Printing equipmen:pump ink | Food machinery:beverage machine etc. |
| Kitchen equipent | Laundry equipen |
| Car-washing equipment | Analytical equipment |
1. Model # MN2 is JIHPUMP latest product in year 2015,integrated into JIHPUMP 10 years experiences of developing peristaltic pumps
2. Apply perfect industrial design ideas,adopt 3D modeling, ensure finished product high accuracy through digitalized verification
3. Full free of tools in mounting or dismounting pump head and changing tubing,to save both time and labour and operate easily
4. Adopt enhanced functional plastics,excellent anti-corrosion perfermance,completely conform to standards of CE,RoHS
5. Rollers are made of imported highly functional plastics processed by highly accurate CNC,3 rollers low pulse design
6. Pump head suitable for tubing of wall 1.6mm,max ID 4.8mm,with tower connectors on pump head itself
7. Equipped with DC gear motor,DC planetary gear motor(fixed flow rate) or stepper motor(variable flow rate),stepper motor can meet longlife and low noise operation requirement.
8. Pump cover have 3 colors for option(transparent,blue or orange,if none required,will deliver at random)
1. For brush DC gear motor,please operate at intervals.
For serious cost control,please select DC gear motor or DC planetary gear motor.
For accurately controlled flow rate,demanding longer lifetime motor,please choose
stepper motor.
2. For continuous long-term operation,please operate at low speed (within 150rpm).
MN2 can be equipped with DC gear motor,DC planetary gear motor or stepper motor. | ||
|
|
|

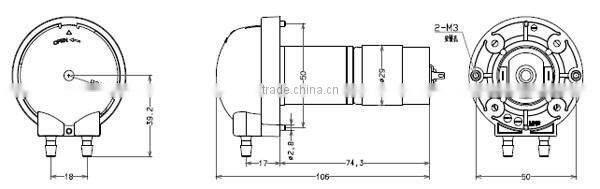

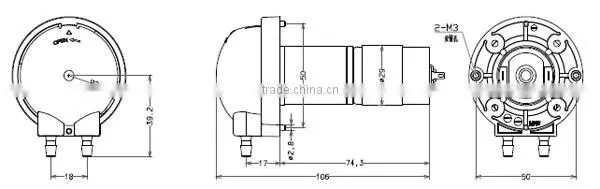

MN2/ZL |

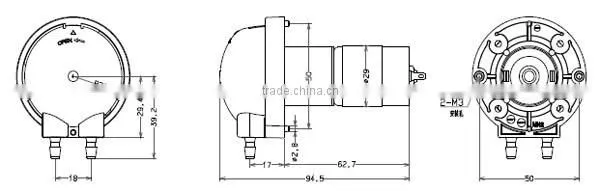

MN2/ZLX |

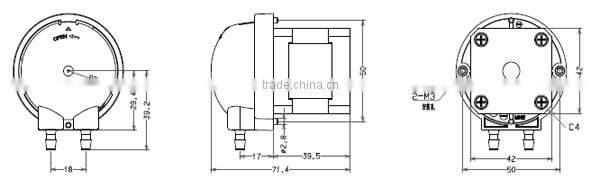

MN2/BT |
| Model # |
MN2/ZL-B(DC motor,transparent cover) |
MN2/BT-B(stepper motor,transparent cover) MN2/BT-H(stepper motor,orange cover) MN2/BT-L(stepper motor,blue cover) |
| Rotation speed | Standing DC gear motor: 12V:100,200r 24V:5,60,100,150,200r Standing DC planetary gear motor:24V:100,150,200,250r |
0.1~200r |
| Tubing | Tubing wall 1.6mm peristaltic pump tubing | |
| Tubing 16# for standard (14#,25# for option) | ||
| Flow rate | 6-137ml/min | ≤115ml/min |
| Roller | 3 rollers | |
| Motor power | 24W | 48W |
| Motor model | 28 group DC gear motor Longer lifetime & low noise DC planetary motor for option |
42 type stepper motor,needing controller to operate |
| Controller | DC speed-governing panel for option | 3 types of controller,click to see details |
| Voltage | 24V (6V,12V for option) | supply voltage 6~36V |
| Pump material | Pump body:POM, Pump cover:PC, Roller:POM | |
| Weight | MN2/ZLX:176g MN2/ZL:228g | MN2/BT:335g |
| Rubber foot pad |
|
|
Tubing # |
14# (optional) |
16# (standard) |
25# (optional) |
|
MN2/ZL flow rate (DC gear motor) | |||
50rpm |
6 |
19 |
34 |
100rpm |
11 |
38 |
68 |
150rpm |
16 |
57 |
102 |
200rpm |
22 |
76 |
137 |
|
MN2/ZLX flow rate (DC planetary gear motor) | |||
65rpm |
6 |
21 |
37 |
100rpm |
9.5 |
32 |
57.5 |
200rpm |
19 |
64 |
115 |
MN2/BT flow rate (long life-time stepper motor) | |||
200rpm |
19 |
65 |
115 |
| Remark | DC gear motor rotation speed has some errors,along with changes of actual output rotation speed,actual flow rate will change. Please take a full consideration of this factor when selecting models. | ||
