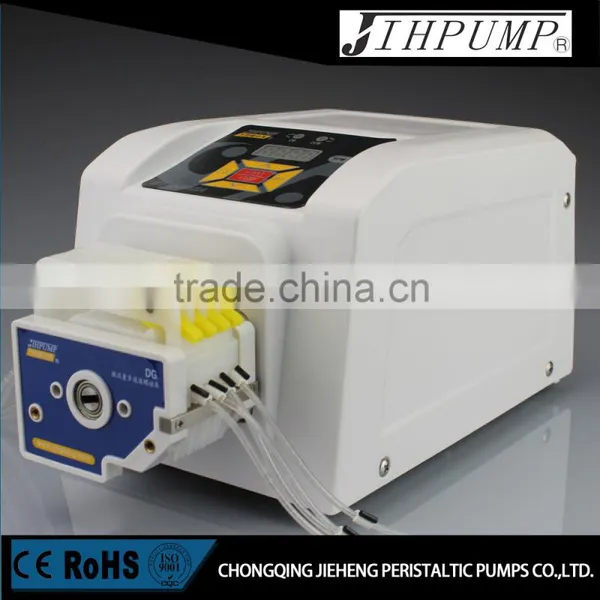

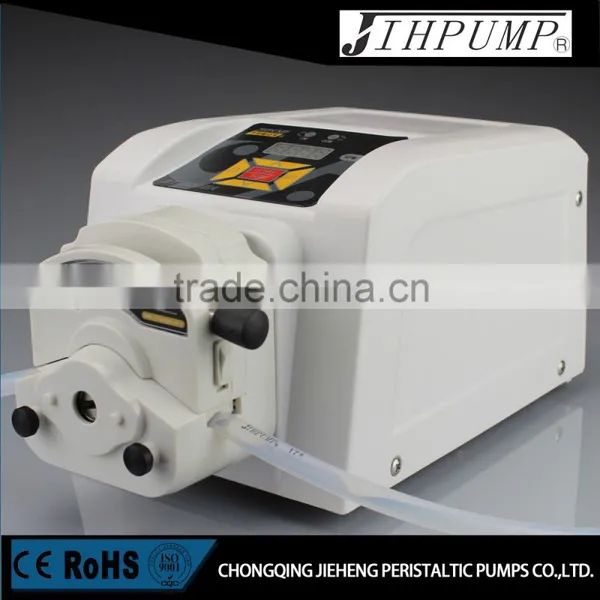

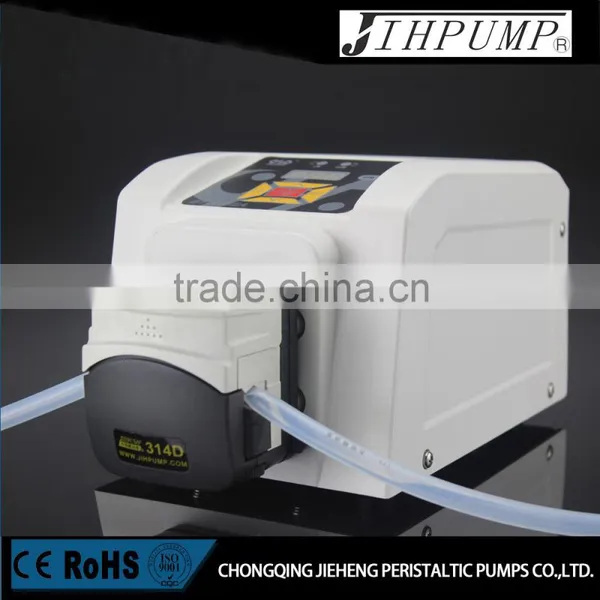

JIHPUMP LED Type Peristaltic Pump BT-100EA Group
Application
1. Laboratories,sampling,filling,industrial small flow pumping
2. Pharmaceutical industries,biochemistry,food,beer,beverage,fine chemical industries,environmental protection
Feature
1. LED displays 4-digit running speed,of resolution 0.1rpm
2. 8 subdivision stepper driving,high accuracy and little resonance
3. Control speed,rotation direction,start/stop by membrane keypad. Speed and rotation direction can be adjusted during operation.
4. Function of timing and counting,can be set free to operate,stop time,and the number of runs,easy dispensing.
5. External control of 0~5V,0~10V,4~20mA,MODBUS or RS-485 etc. can control start/stop,cw/ccw rotation and speed.
6. Memory function of storing the running parameter automatically when the power fails.
7. Flame-retardant housing,maintenance-free
Specification
| Speed | 0.1-100 rpm |
| Flow rate | 0.001-390ml/min |
| Dimension | L275*W150*H140 |
| Weight,power | 2.7-3.6Kg,18W |
| Work environment | -20-60℃,Relative humidity less than 85% |
| Power supply | Ac220V 50/60Hz,(Ac110V 50/60Hz optional) |
| Max pressure | ≤0.17MP (Hose outlet pressure) |
| Protection grade | IP31 |
Flow Rate
| Reference flow rate(ml/min,Medium:water,Speed:0.1-100rpm) | ||||||||||
| Pump head | 153Yx | 253Yx | ||||||||
Tube |
14# | 16# | 25# | 17# | 18# | 15# | 24# | 35# | 36# | |
ID x wall (mm) |
1.6×1.6 | 3.2×1.6 | 4.8×1.6 | 6.4×1.6 | 7.9×1.6 | 4.8×2.4 | 6.4×2.4 | 7.9×2.4 | 9.7×2.4 |
|
| Flow rate | 0.02~21 | 0.07~79 | 0.17~194 | 0.29~275 | 0.39~380 | 0.2~135 | 0.26~248 | 0.3~390 | 0.5~500 | |
| Reference flow rate (ml/min,Medium:water,Speed:0.1~100rpm) | ||||||||
| Pump head | DGx | |||||||
| Tube | 1×1 | 2×1 | 3×1 | |||||
| ID x wall (mm) | 1×1 | 2×1 | 3×1 | |||||
| Flow rate | 0.005~7 | 0.014~15 | 0.023~28 | |||||

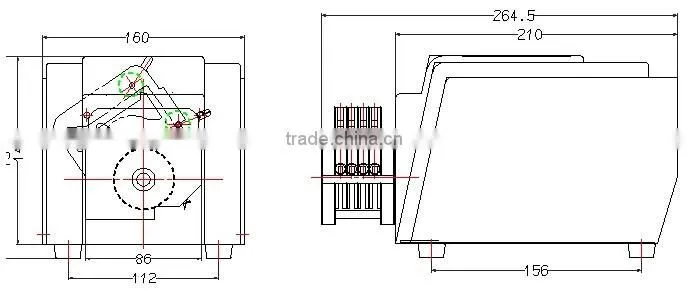

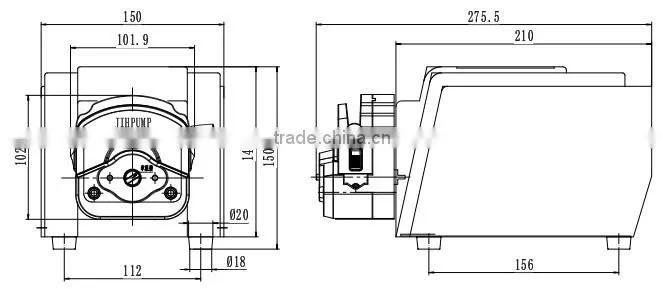

Dimension
