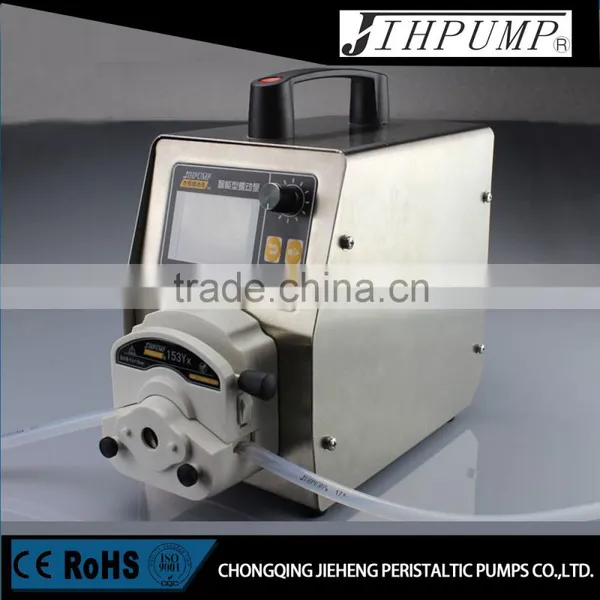

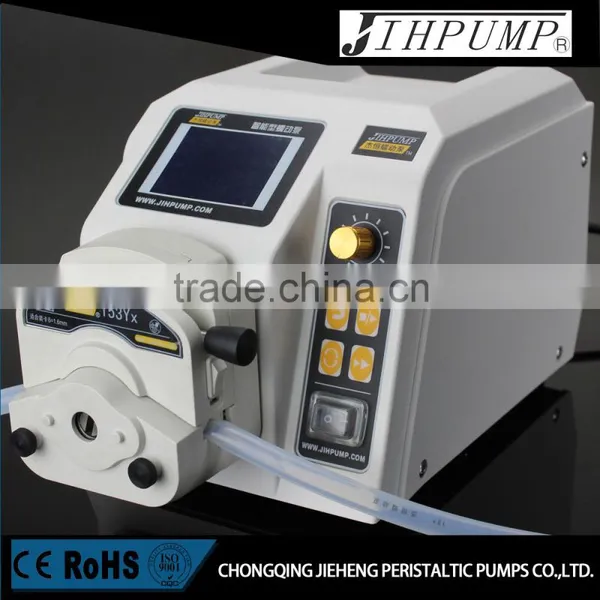

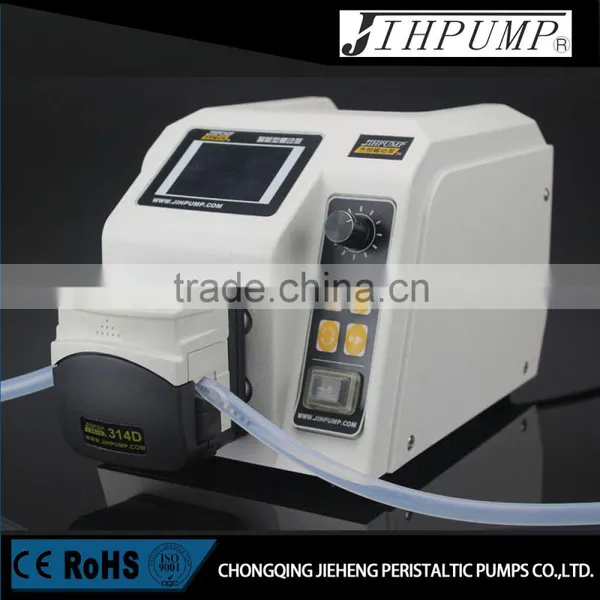

JIHPUMP Stepper Motor LCD Type Peristaltic Pump BT-100CA Group
Application
1. Laboratories,sampling,filling,industrial large flow dispensing,teaching instrument and equipment.
2. Pharmaceutical industries,biochemistry,food,beer,beverage,chemical industries,environmental protection,printing,atomic energy,electronics.
Feature
1. Graphic LCD displays the parameters and running state.
2. Three functions of flow,timing and filling
3. Automatic identifying foot switch. Filling has timing and Infrared sensing functions.
4. Accept analog signal,digital signal(MODBUS)
5. Pump heads of PPS or PSU material,housing of plastics or stainless material
6. Basic functions of full speed drain off,back-flow angle set,flow calibration,Beijing time,environmental temperature inspection etc.
7. Rotary coded switch coupled with touch keypad control
8. Standard configuration: driver with LCD display,pump head,tubing(2 meters for free)
9. Optional configuration: foot switch,replacement tubing,filling needle,tubing connector,anti-float contersunk head etc.
Specification
| Display | Color LCD graphic display |
| Speed | 1~100rpm |
| Speed mode | Rotary switch |
| Operate mode | Flow, timing, filling |
| Function |
Full speed emptying,suck-back angle settings,flow adjustment,time adjustment, ambient temperature detection |
| Suck-back angle | 0~360° |
| Foot switch | Automatic identification |
| Filling running | Can set automatic program running or infrared sensing running (no bottle, no filling) |
| Dimension | L304×W166×H178(mm) ,total weight: 3.5-4.5Kg |
| Work environment | -20-60℃,relative humidity less than 85% |
| Power | Ac220V50/60Hz (Ac110V50/60Hz optional),consumed power 18W |
| Max pressure | ≤0.17MP, short time up to 0.27MP (tube outlet pressure) |
| Control mode | Start/stop,cw/ccw running,speed control:0.5-5V/10V,4-20mA,0-10KHz. RS485 in MODBUS protocol |
| Protection grade | IP31 |
Flow rate
| Reference flow rate(ml/min, Medium:water, Speed:0.1-100rpm) | ||||||||||
| Pump head | 153Yx | 253Yx | ||||||||
Tube |
14# | 16# | 25# | 17# | 18# | 15# | 24# | 35# | 36# | |
ID x wall (mm) |
1.6×1.6 | 3.2×1.6 | 4.8×1.6 | 6.4×1.6 | 7.9×1.6 | 4.8×2.4 | 6.4×2.4 | 7.9×2.4 | 9.7×2.4 |
|
| Flow rate | 0.02~21 | 0.07~79 | 0.17~194 | 0.29~275 | 0.39~380 | 0.2~135 | 0.26~248 | 0.3~390 | 0.5~500 | |
| Reference flow rate (ml/min, Medium:water, Speed:0.1~100rpm) | ||||||||

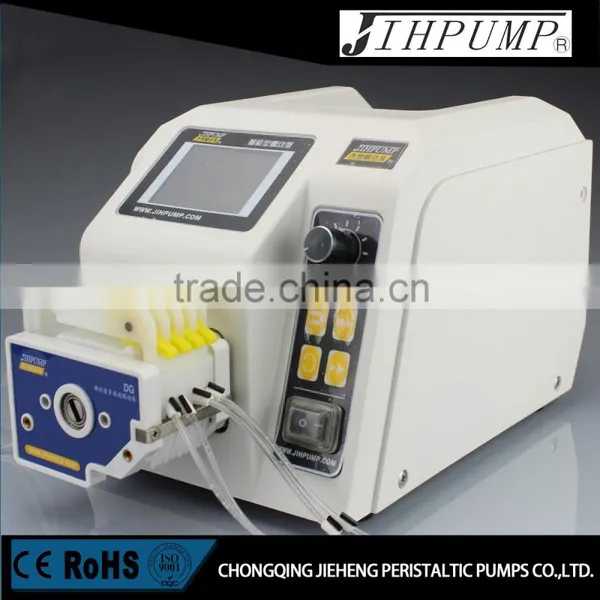

| Pump head | DGx |
|||||||
| Tube | 1×1 | 2×1 |
3×1 | |||||
| ID x wall (mm) | 1×1 | 2×1 |
3×1 | |||||
| Flow rate | 0.005~10 | 0.014~13 | 0.023~23 | |||||
Dimension
