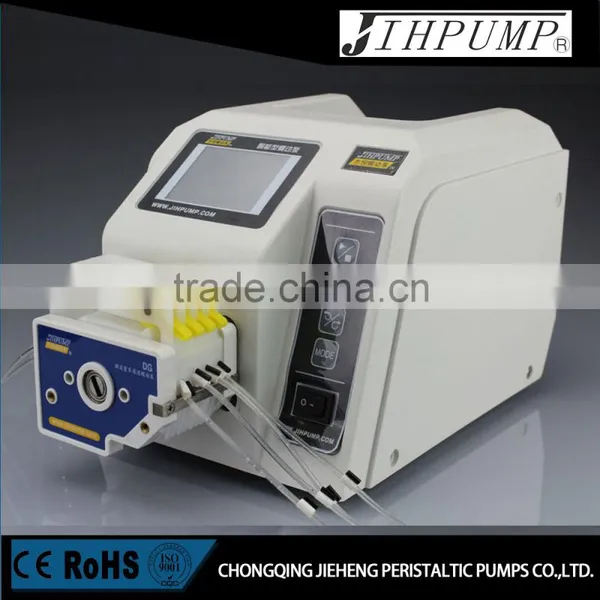

JIHPUMP Touch Screen Peristaltic Pump BTC-100CA Group
Application
1. Laboratories,sampling,filling,industrial large flow dispensing,teaching instrument and equipment.
2. Pharmaceutical industries,biochemistry,food,beer,beverage,chemical industries,environmental protection,printing,atomic energy,electronics.
Feature
1. Graphic LCD displays the parameters and running state.
2. Three functions of flow,timing and filling
3. Automatic identifying foot switch. Filling has timing and Infrared sensing functions.
4. Accept analog signal,digital signal(MODBUS)
5. Pump heads of PPS or PSU material,housing of plastics or stainless material
6. Basic functions of full speed drain off,back-flow angle set,flow calibration,Beijing time,environmental temperature inspection etc.
7. Touch screen intelligent control
8. Standard configuration: driver with LCD display,pump head,tubing(2 meters for free)
9. Optional configuration: foot switch,replacement tubing,filling needle,tubing connector,anti-float contersunk head etc.
Specification
| Display | LCD touch screen |
| Speed | 0.1~100.0rpm |
| Speed mode | Touch screen operation |
| Menu | Flow,time,filling |
| Function | Full emptying,suction angle setting,flow correction,time adjustment,ambient temperature detection |
| Suck back angle | 0~360° |
| Foot switch | Automatic identification |
| Filling mode | Automatical or infrared sensing operation (no bottle,no filling) |
| Dimension | L304×W166×H178(mm) ,Weight 3.5-4.5Kg |
| Work condition | -20-60℃, relative humidity less than 85% |
| Power | Ac220V50/60Hz (Ac110V50/60Hz optional),power consumption 18W |
| Pressure | <0.17MP,short-term up to 0.27MP (tube outlet pressure) |
| Control Type | Start/stop,cw/ccw running,speed control:0.5-5V/10V,4-20mA,0-10KHz;RS485 communication MODBUS protocol |
| IP class | IP31 |
Flow rate
| Flow rate(ml/min,test medium:water,speed:1-100rpm) | ||||||||||
Pump head |
153Yx |
253Yx |
||||||||
Tube |
14# |
16# |
25# |
17# |
18# |
15# |
24# |
35# |
36# |
|
ID× wall (mm) |
1.6×1.6 |
3.2×1.6 |
4.8×1.6 |
6.4×1.6 |
7.9×1.6 |
4.8×2.4 |
6.4×2.4 |
7.9×2.4 | 9.7×2.4 |
|
| Flow rate | 0.02~21 |
0.07~79 |
0.17~194 |
0.29~275 |
0.39~380 |
0.2~135 |
0.26~248 |
0.3~390 | 0.5~500 |
|
| Flow rate(ml/min,test medium:water,speed 0.1-100rpm) | ||||||||
Pump head |
DGx |
|||||||
Tube |
1×1 |
2×1 |
3×1 |
|||||
ID× wall (mm) |
1×1 |
2×1 |
3×1 |
|||||
Flow rate |
0.005~10
|
0.014~13
|
0.023~23
|
|||||

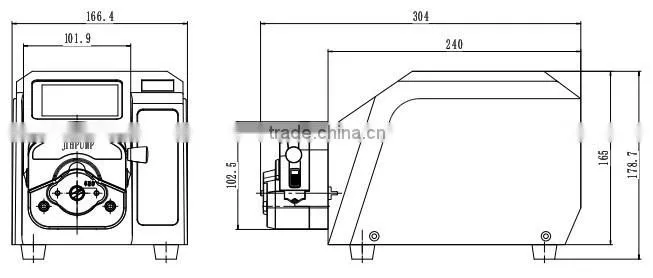

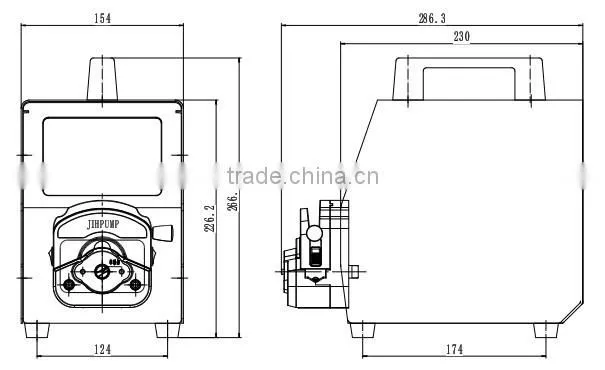

Dimension
