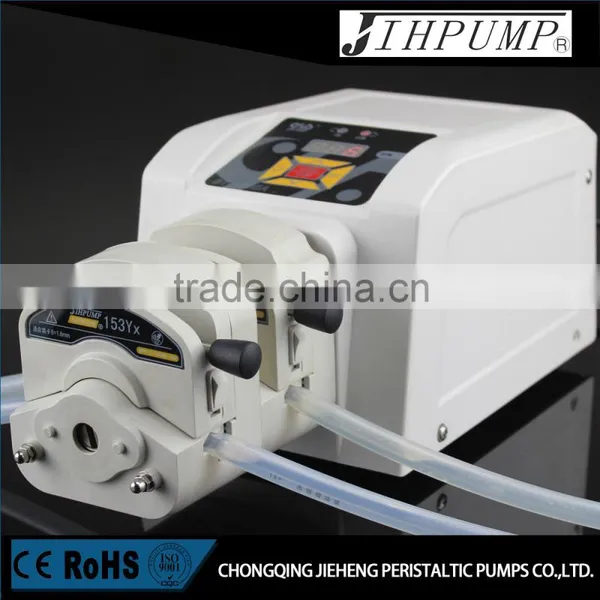

JIHPUMP LED Type Peristaltic Pump BT-300EA Group

Name: JIHPUMP LED Type Peristaltic Pump BT-300EA Group
Brand: JIHPUMP
SKU: 130614581
Availability: InStock

US$ 300 - 500 MOQ: 1 Piece

Key Specifications

Brand Name:

JIHPUMP

Model Number:

BT-300EA

Theory:

Rotary Pump

Chongqing Jieheng Peristaltic Pumps Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Brand Name JIHPUMP

Model Number BT-300EA

Theory Rotary Pump

Structure Other, Peristaltic Pump

Usage Water

Power Electric

Standard or Nonstandard Standard

Fuel Other, Electricity

Pressure Low Pressure

Application Metering

JIHPUMP LED Type Peristaltic Pump BT-300EA Group

Application

1. Laboratories,sampling,filling,industrial small flow pumping

2. Pharmaceutical industries,biochemistry,food,beer,beverage,fine chemical industries,environmental

Feature

1. LED displays 4-digit running speed,of resolution 0.1rpm.

2. 8 subdivision stepper driving,high accuracy and little resonance

3. Control speed,rotation direction,start/stop by membrane keypad. Speed and rotation direction can be adjusted during operation.

4. Function of timing and counting,can be set free to operate,stop time,and the number of runs,easy dispensing.

5. External control of 0~5V,0~10V,4~20mA,MODBUS or RS-485 etc. can control start/stop,cw/ccw rotation and speed.

6. Memory function of storing the running parameter automatically when the power fails.

7. Flame-retardant housing,maintenance-free

Specification

Flow Rate

Reference flow rate(ml/min,Medium:water,Speed:0.1-300rpm)
Pump head	153Yx					253Yx
Tube	14#	16#	25#	17#	18#	15#	24#	35#	36#
ID x wall (mm)	1.6×1.6	3.2×1.6	4.8×1.6	6.4×1.6	7.9×1.6	4.8×2.4	6.4×2.4	7.9×2.4	9.7×2.4
Flow rate	0.03~63	0.08~230	0.17~500	0.3~890	0.4~1170	0.2~445	0.3~840	0.4~1170	0.5~1500
