Description

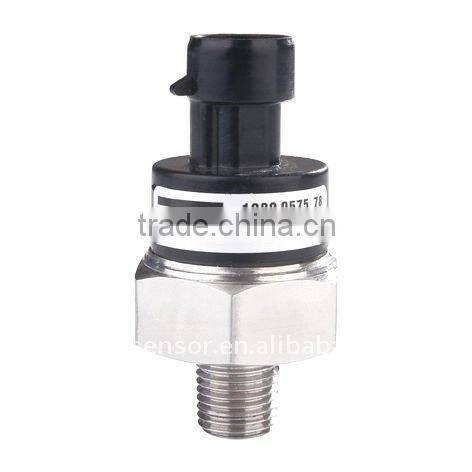

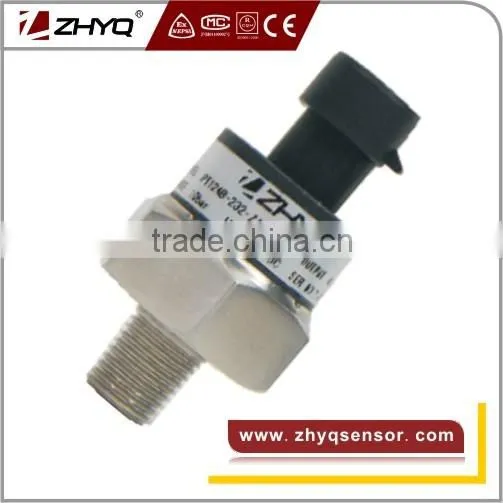

PT124B-232 is 0.5-4.5v output SS304 material pressure transmitter for air condition . this series is air pressure transmitter adopts diffused silicon or ceramic piezoresistive sensor chip, with compact configuration,and easy to install, this air pressure transmitter special valve needle design for lead pressure port, perfect electrical performance and long-term stability make it the idea choice for the air-condition and compressor pressure measuring and controlling.
Feature
Superior long term stability
A wide range of temperature compensation
Low power consumption
Excellent repeatability/hysteresis
Special design for customer
Many OEM options
Application
Laboratory test apparatus
Agricultural chemical equipment
Refrigeration and HVAC systems
Hydraulic pressure system
Gas tank pressure monitoring
Coolant pressure measuring
Specification
Name |
0.5-4.5v output SS304 material pressure transmitter for air condition |
Model |
PT124B-232 |
Range |
0….1bar to 0….100bar ` |
Accuracy |
0.5%FS ; 1%FS; 1.5%FS |
Linearity |
0.02%FS |
Reliability |
0.05%FS |
Output |
4-20mA, 0-5V, 0.5-4.5V,1-5V |
Input Voltage |
24(12-36V)DC;5VDC |
Operating Temperature |
-20°C~120°C |
Temperature Compensation |
-10~65°C(Standard Compensation) |
Over Pressure |
150%FS |
Case material |
304SS,316SS,Brass optional |
Electric connection |
Packard connector |
Process connection |
1/4NPT,1/8-27NPT,7/16-20UNF (Optional) |
Dimension

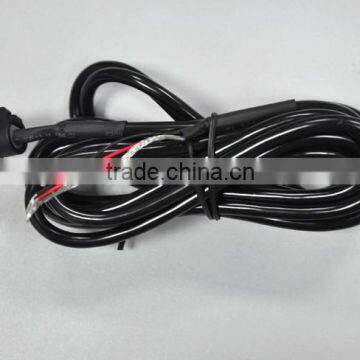

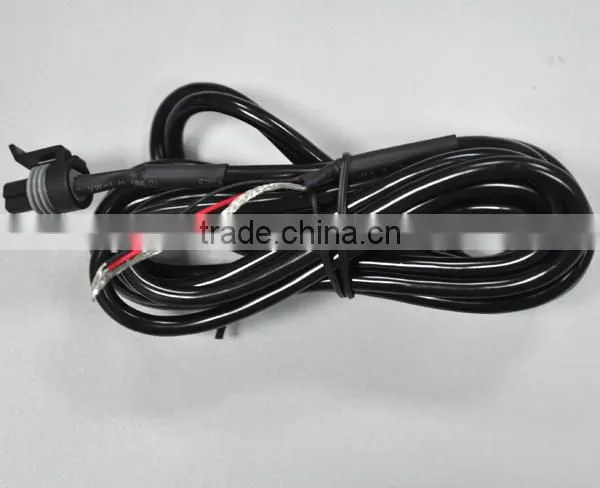

Wiring code
Signal Output |
4-20mA (2 Wires) |
0-5V, 0.5-4.5V,1-5V (3 wires) |
||
Wiring Code |
1 |
Input (Red) |
1 |
Input (Red) |
2 |
Output (Black) |
2 |
common point (Black) |
|
3 |
None |
3 |
Output (Blue) |
|
Remarks: Above wiring connector is the standard type, if you need the special wiring, please contact with the company at first. | ||||
Order guide with * are required, with --- is optional
Model |
Range |
Output |
Process Connection |
Electric Connection |
Other Requirement |
PT124B-232 |
* |
* |
* |
* |
--- |
Example: PT124B-232-10bar-0.5-4.5V-7/16F-20UNF | |||||
Our products are widely used in the field of hydraulic pressure, air pressure, petrochemical industry, automotive, air condition and compressor, construction machinery, plastic extrusion, chemical fiber, plastic rubber machine, non-woven fabrics and etc.
ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
