Help CenterOil Filled (no Harm) Rigid Melt Pressure Transducer With Thermocouple
Related Products
-
no Harm 4-20mA Rigid Oil Green Melt Pressure TransmitterUS$ 35 - 260MOQ: 1 Piece -
0.5% Accuracy 33.3mV Rigid Melt Pressure Transducer With J ThermoupleUS$ 60 - 199MOQ: 1 Piece
-
33.3mV Output 6" Melt Pressure Transducer for Blow Film MachineryUS$ 60 - 260MOQ: 1 Piece
-
K Thermo Rigid Melt Pressure Transmitter With 4-20mA OutputUS$ 30 - 230MOQ: 1 Piece
-
Rigid Stem 0-10V Melt Pressure Transducer With 0.5% AccuracyUS$ 30 - 200MOQ: 1 Piece
Description

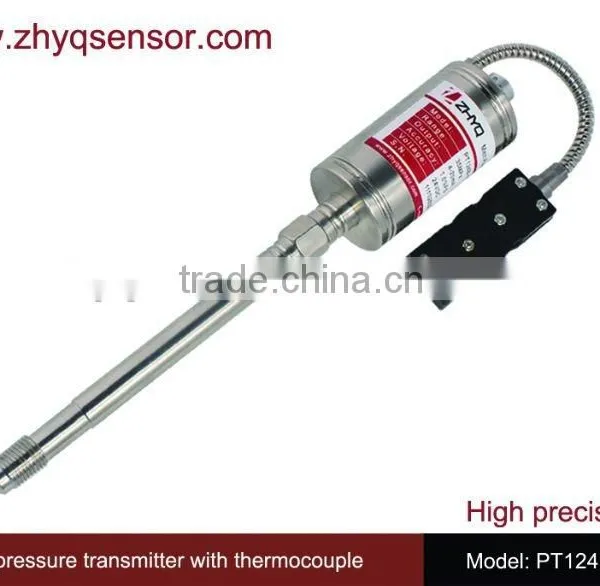

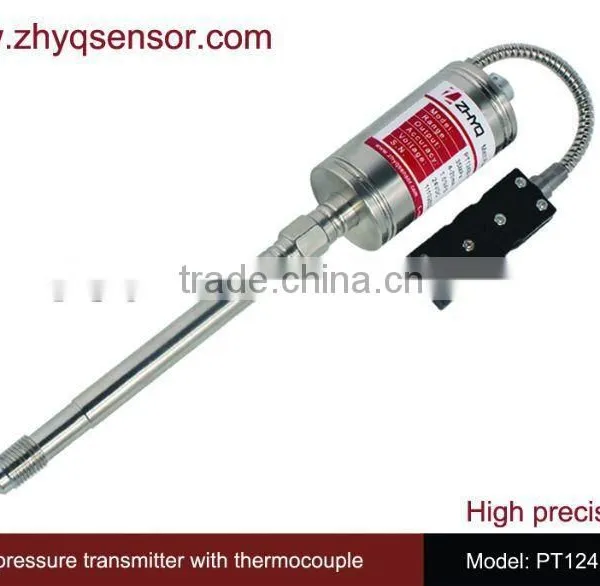

PT124B-113T is oil filled (no harm) rigid melt pressure transducer with thermocouple . this series oil filled green pressure transducer , it is designed with rigid stem & with thermocouple can measure the pressure and temperature in one point , oil filled , avirulent medium ,sanitary pressure sensor , If the diaphragm damaged during process, the leaking medium is no harm to the human body or ambient; and built in 80% shunt calibration , can match the N series pressure instrument from ZHYQ, also can match the pressure instrument or controller of other brand; it is international standard output, the signal can be connected with PLC directly . and it can replace Dynisco or Gefran products absolutely .
Feature
High-standard performance quality
Stainless steel welding ,Simple installation
oill filled ,environmental and non-toxic material
80% internal calibration
Excellent stability and repeatability
Application
sanitary medicine&food process equipment
drinking water enviromental monitoring
industrial testing and controlling
automatic testing system
Chemical fiber Equipment
Plastic and Rubber manufacturing equipment
Medicine & Food process equipment, etc
Specification
Name |
oil filled (no harm) rigid melt pressure transducer with thermocouple |
Model |
PT124B-113T |
Pressure range |
0-1MPa…0-150MPa (0-1500psi…0-20000psi) |
Over Pressure |
1.5 X FSO |
Combined Error |
± 1.5% FSO; ± 1.0% FSO (Including Linearity, Repeatability & Hysteresis) |
Output |
4-20mA ,0-5V ,0-10V |
Input Voltage |
24VDC |
Repeatability |
+/- 0.2%FSO |
Bridge Resistance Input |
345 Ohms minimum |
Bridge Resistance Output |
350 Ohms +/- 10% |
Internal Shunt Calibration (R-Cal) |
80% FSO +/- 1% |
Insulation Resistance |
200 megohms @ 100 Vdc |
Max Diaphragm Temperature |
400 °C |
Mounting Torque |
500 inch/lbs. max. |
Standard Wetted Parts |
Diaphragm coated 15-5 PH SST |
Electrical connector |
5PIN, 6PIN optional |
Thermocouple Type |
J.K.E.PT100 optional |
Process connector |
1/2″-20UNF, M14×1.5, M18×1.5 Optional |

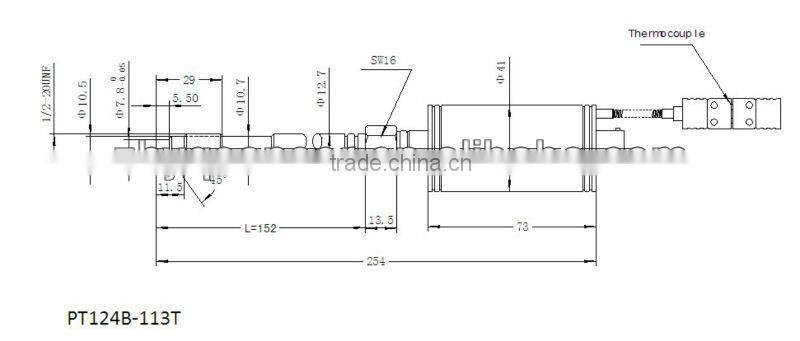

Dimension
Order Guide : with "* "are required , with "---"is optional
Model |
Range |
output |
Rigid & flexible length (inch) |
Screw Thread |
Thermocouple |
Electric connector |
Accuracy |
others |
PT124B-113T |
* |
* |
* |
* |
* |
* |
* |
--- |
Example:PT124B-113T-500Bar-4-20mA -6”-1/2-20UNF-J-5PIN-0.5% | ||||||||
This oil filled (no harm) rigid melt pressure transducer with thermocouple
Our products are widely used in the field of hydraulic pressure, air pressure, petrochemical industry, automotive, air condition and compressor, construction machinery, plastic extrusion, chemical fiber, plastic rubber machine, non-woven fabrics and etc.
ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
can matching with our N series digital pressure indicator
