Description

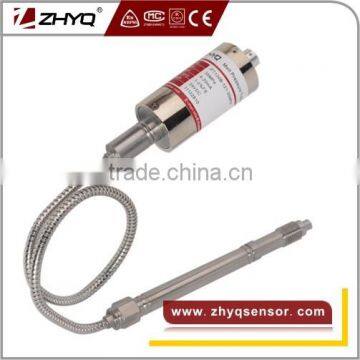

PT124G-121 is China flexible melt pressure transducer with 33.3mV output , this flexible melt pressure sensor with mV/V output , it is widely used in both domestic and abroad.This melt pressure transducer can be utilized together with the N Series Intelligent Digital Pressure Instrument. this flexible melt pressure transducer Zero & full span can be adjustable, the melt pressure transducer of PT124G-121 welding with amplify circuit can be change to PT124B-121 , the signal be connected with PLC directly , with advantages of high precision and reliable pressure measuring and good quality and internal 80% calibration. international standard , can replace Dynisco ,Gefran ,GP50 absolutely .
Feature
flexible melt pressure sensor with mV/V output
Stainless steel welding, Easy to install
Zero and span adjustable
Various amplified signals optional
Internal 80% shunt calibration
Good stability and anti-jamming capability
Excellent stability and repeatability
can replace Dynisco ,Gefran ,GP50 absolutely .
Application
Chemical fiber Equipment
Plastic and Rubber manufacturing equipment
Medicine & Food process equipment
Measurement and Control all kinds of melt fluid
blow film machinery , plastic extrusion line
Specification
Name | China flexible melt pressure transducer with 33.3mV output |
Model | PT124G-121 |
Pressure range | 0-3.5MPa…0-150MPa (0-500psi…20000psi) |
Over Pressure | 1.5 X FSO |
Combined Error | ± 1.0% FSO; ±0.5% FSO (Including Linearity, Repeatability & Hysteresis) |
Output | 3.33 mV/V, 2mV/V |
Input Voltage | 10VDC |
Repeatability | +/- 0.2%FSO |
Bridge Resistance Input | 345 Ohms minimum |
Bridge Resistance Output | 350 Ohms +/- 10% |
Internal Shunt Calibration (R-Cal) | 80% FSO +/- 1% |
Insulation Resistance | 200 megohms @ 100 Vdc |
Max Diaphragm Temperature | 400°C |
Mounting Torque | 500 inch/lbs. max. |
Standard Wetted Parts | Diaphragm coated 15-5 PH SST |
Electrical connector | 5PIN, 6PIN connector |
Process connector | 1/2″-20UNF, M14×1.5, M18×1.5 Optional |
Dimension
Order Guide : with "* "are required , with "---"is optional
Model | Range | output | Rigid & flexible length (inch) | Screw Thread | Electric connector | Accuracy | others |
PT124G-121 | * | * | * | * | * | * | --- |
Example:PT124G-121-500Bar-2mV/V -6/18”-1/2-20UNF-5PIN-0.5% | |||||||
This China flexible melt pressure transducer with 33.3mV output can matching with our N series digital pressure indicator to local display the pressure .
Our products are widely used in the field of hydraulic pressure, air pressure, petrochemical industry, automotive, air condition and compressor, construction machinery, plastic extrusion, chemical fiber, plastic rubber machine, non-woven fabrics and etc.
ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
