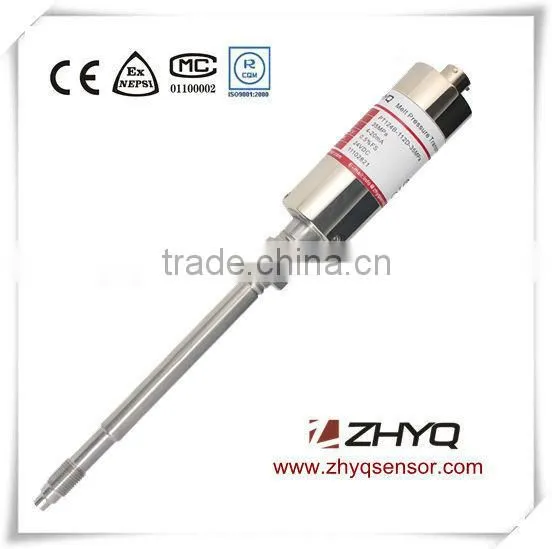

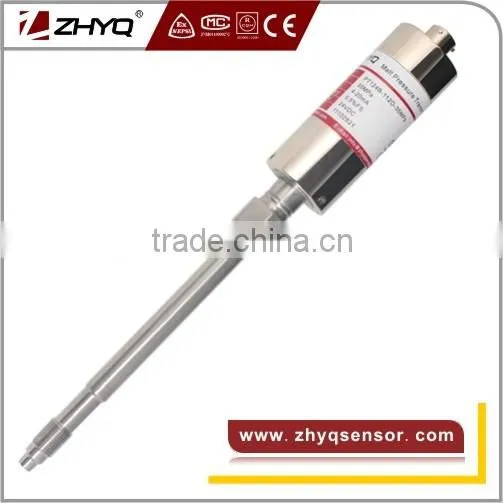

Melt Pressure Sensor (auto-zero) With 4-20mA Output

Melt Pressure Sensor (auto-zero) With 4-20mA Output thumbnail-1
Melt Pressure Sensor (auto-zero) With 4-20mA Output thumbnail-2
Melt Pressure Sensor (auto-zero) With 4-20mA Output thumbnail-3
Melt Pressure Sensor (auto-zero) With 4-20mA Output thumbnail-4
Melt Pressure Sensor (auto-zero) With 4-20mA Output thumbnail-5
Melt Pressure Sensor (auto-zero) With 4-20mA Output thumbnail-6
Melt Pressure Sensor (auto-zero) With 4-20mA Output photo-1
Melt Pressure Sensor (auto-zero) With 4-20mA Output photo-2
Melt Pressure Sensor (auto-zero) With 4-20mA Output photo-3
Melt Pressure Sensor (auto-zero) With 4-20mA Output photo-4
Melt Pressure Sensor (auto-zero) With 4-20mA Output photo-5
Melt Pressure Sensor (auto-zero) With 4-20mA Output photo-6
US$ 100 - 299 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
ZHYQ
Model Number:
PT124B-112D
Contact Supplier Request Quote Chat Now
Shanghai Zhaohui Pressure Apparatus Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name ZHYQ
Model Number PT124B-112D
Product Description

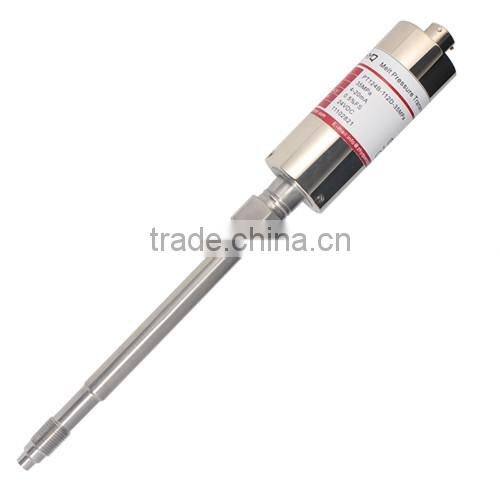

melt pressure sensor (auto-zero) with 4-20mA output

Description



PT124B-112D is melt pressure sensor (auto-zero) with 4-20mA output  , this series is mercury filled high precision rigid stem Melt Pressure Transducer ,it is designed with auto-zero adjustment function, it can realize the automatic calibration and amendment with one button on the top of the electrical house of the pressure transmitter, in order to reduce the consuming of manpower, cost of calibrating equipment, and save operating time. This series adopt special material and alloy elastic membrane to low down temperature draft and improve accuracy. The amplifier output is 4-20mA, which can directly contact with PLC. This series is suitable for pressure measuring and controlling of melt fluid medium, such as the plastic & polymer in the process equipments. It Can replace Dynisco / Gefran /GP50 etc. international brand absolutely .





Feature

High accuracy

Stainless steel welding

auto-Zero functionality

No span or zero pots

Easy to install

Internal 80% calibration

only 4-20mA output

Excellent stability and repeatability



Application

Blown Film Machine

Plastic bag machine

Polyester equipment

Plastic extrusion machinery

Chemical fiber manufacturing equipment



Specification

Name

melt pressure sensor (auto-zero) with 4-20mA output

Model

PT124B-112D

Pressure range

0-35Bar...0-1500Bar  (0-500psi…20000psi)

Over Pressure

1.5 X FSO

Combined Error

± 0.5% FSO;  (Including Linearity, Repeatability & Hysteresis)

Output

4-20mA

Input Voltage

24VDC

Repeatability

+/- 0.2%FSO

Bridge Resistance Input

345 Ohms minimum

Bridge Resistance Output

350 Ohms +/- 10%

Internal Shunt Calibration (R-Cal)

80% FSO +/- 1%

Insulation Resistance

200 megohms @ 100 Vdc

Max Diaphragm Temperature

400°C / 750°F

Mounting Torque

500 inch/lbs. max.

Standard Wetted Parts

Diaphragm coated 15-5 PH SST

Rigid stem length

6 inch, 9inch  others available on request

Flexible stem length

18 inch, others available on request

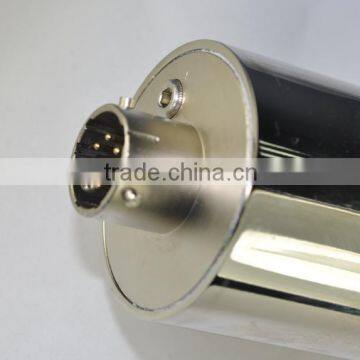

Electrical connector

6PIN connector

Process connector

1/2″-20UNF, M14×1.5, M18×1.5 Optional




melt pressure sensor (auto-zero) with 4-20mA output

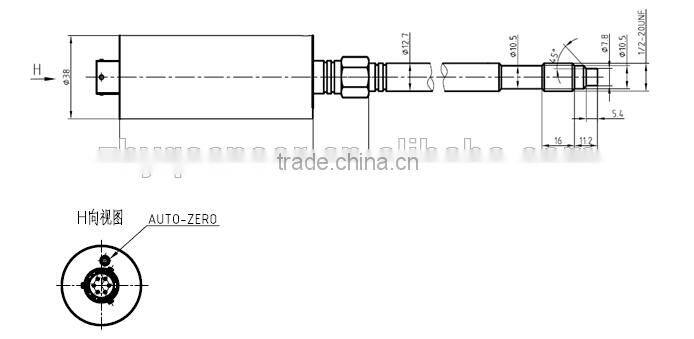

Dimension

melt pressure sensor (auto-zero) with 4-20mA output



Order Guide: with "* "are required , with "---"is optional



Model

Range

(bar)

Output

Rigid/Flexible length (inch)

Screw Thread

Electric connection

Accuracy

Thermocouple

Other requirement

PT124B-112D

*

*

*

*

*

*



---



---

Example:PT124B-112D-500Bar-4-20mA -6"-1/2-20UNF-6PIN-0.5%FS



This melt pressure sensor (auto-zero) with 4-20mA output can matching with our N series digital pressure indicator to local display pressure .



melt pressure sensor (auto-zero) with 4-20mA output

Factory Show

melt pressure sensor (auto-zero) with 4-20mA output

Product Application

melt pressure sensor (auto-zero) with 4-20mA output

Our products are widely used in the field of hydraulic pressure, air pressure, petrochemical industry, automotive, air condition and compressor, construction machinery, plastic extrusion, chemical fiber, plastic rubber machine, non-woven fabrics and etc.

Quality Control

ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.

melt pressure sensor (auto-zero) with 4-20mA output



melt pressure sensor (auto-zero) with 4-20mA output

Customer Photo

melt pressure sensor (auto-zero) with 4-20mA output

Packaging & Shipping

melt pressure sensor (auto-zero) with 4-20mA output

Our Services

melt pressure sensor (auto-zero) with 4-20mA output

FAQ

melt pressure sensor (auto-zero) with 4-20mA output
