Auto Zero Adjust Flexible Melt Pressure Transmitter With J Thermocouple

Description

PT124B-123DT is auto zero adjust flexible melt pressure transmitter with J thermocouple  , The model PT124B-123DT is with thermocouple which can measure the pressure and temperature in one point. this series melt pressure transmitter is designed with auto-zero adjustment function, this melt pressure transmitter can realize the automatic calibration and amendment with one button on the top of the electrical house of the pressure transmitter, this melt pressure transmitter can help you to reduce the consuming of manpower, cost of calibrating equipment, and save operating time. this melt pressure transmitter output is 4-20mA, which can directly contact with PLC. This auto-zero melt pressure transmitter is suitable for pressure measuring and controlling of melt fluid medium, such as the plastic & polymer in the process equipments.

Feature

Stainless steel welding , Easy to install

Zero and span adjustable

4-20mA output , one button auto zero

Various amplified signals optional

Internal 80% shunt calibration

Good stability and anti-jamming capability

Excellent stability and repeatability

high accuracy ,can replace Dynisco ,Gefran ,GP50 absolutely .

Application

Chemical fiber Equipment

Plastic and Rubber manufacturing equipment

Medicine & Food process equipment

Measurement and Control all kinds of melt fluid

Specification

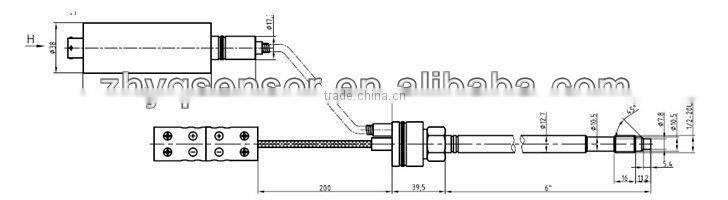

Dimension

Order Guide: with "* "are required , with "---"is optional

This auto zero adjust flexible melt pressure transmitter with J thermocouple can matching with our N series digital pressure indicator to local display pressure .
