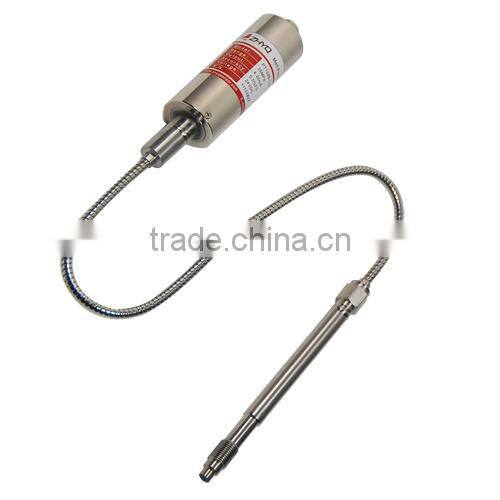

Auto Zero Flexible Melt Pressure Transducer With 4-20mA Output

Auto Zero Flexible Melt Pressure Transducer With 4-20mA Output thumbnail-1
Auto Zero Flexible Melt Pressure Transducer With 4-20mA Output thumbnail-2
Auto Zero Flexible Melt Pressure Transducer With 4-20mA Output thumbnail-3
Auto Zero Flexible Melt Pressure Transducer With 4-20mA Output thumbnail-4
Auto Zero Flexible Melt Pressure Transducer With 4-20mA Output thumbnail-5
Auto Zero Flexible Melt Pressure Transducer With 4-20mA Output thumbnail-6
Auto Zero Flexible Melt Pressure Transducer With 4-20mA Output photo-1
Auto Zero Flexible Melt Pressure Transducer With 4-20mA Output photo-2
Auto Zero Flexible Melt Pressure Transducer With 4-20mA Output photo-3
Auto Zero Flexible Melt Pressure Transducer With 4-20mA Output photo-4
Auto Zero Flexible Melt Pressure Transducer With 4-20mA Output photo-5
Auto Zero Flexible Melt Pressure Transducer With 4-20mA Output photo-6
US$ 100 - 299 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
ZHYQ
Model Number:
PT124B-123D
Contact Supplier Request Quote Chat Now
Shanghai Zhaohui Pressure Apparatus Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name ZHYQ
Model Number PT124B-123D



Product Description

auto zero flexible melt pressure transducer with 4-20mA output



Description

PT124B-123D is auto zero flexible melt pressure transducer with 4-20mA output , this series melt pressure transmitter is designed with auto-zero adjustment function, this melt pressure transmitter can realize the automatic calibration and amendment with one button on the top of the electrical house of the pressure transmitter, this melt pressure transmitter can help you to reduce the consuming of manpower, cost of calibrating equipment, and save operating time. this melt pressure transmitter output is 4-20mA, which can directly contact with PLC. This auto-zero melt pressure transmitter is suitable for pressure measuring and controlling of melt fluid medium, such as the plastic & polymer in the process equipments.



Feature

Stainless steel welding , Easy to install

Zero and span adjustable

4-20mA output , one button auto zero

Various amplified signals optional

Internal 80% shunt calibration

Good stability and anti-jamming capability

Excellent stability and repeatability

high accuracy ,can replace Dynisco ,Gefran ,GP50 absolutely .



Application

Chemical fiber Equipment

Plastic and Rubber manufacturing equipment

Medicine & Food process equipment

Measurement and Control all kinds of melt fluid



Specification

Name

auto zero flexible melt pressure transducer with 4-20mA output

Model

PT124B-123D

Pressure range

0-35Bar...0-1500Bar  (0-500psi…20000psi)

Over Pressure

1.5 X FSO

Combined Error

± 0.5% FSO;  (Including Linearity, Repeatability & Hysteresis)

Output

4-20mA

Input Voltage

24VDC

Repeatability

+/- 0.2%FSO

Bridge Resistance Input

345 Ohms minimum

Bridge Resistance Output

350 Ohms +/- 10%

Internal Shunt Calibration (R-Cal)

80% FSO +/- 1%

Insulation Resistance

200 megohms @ 100 Vdc

Max Diaphragm Temperature

400°C / 750°F

Mounting Torque

500 inch/lbs. max.

Standard Wetted Parts

Diaphragm coated 15-5 PH SST

Rigid stem length

6 inch, 9inch  others available on request

Flexible stem length

18 inch, others available on request

Electrical connector

6PIN connector

Process connector

1/2″-20UNF, M14×1.5, M18×1.5 Optional




auto zero flexible melt pressure transducer with 4-20mA output

Dimension

auto zero flexible melt pressure transducer with 4-20mA output



Order Guide: with "* "are required , with "---"is optional



Model

Range

(bar)

Output

Rigid/Flexible length (inch)

Screw Thread

Electric connection

Accuracy

Other requirement

PT124B-123D

*

*

*

*

*

*

---

Example:PT124B-123D-500Bar-4-20mA -6”/18"-1/2-20UNF-6PIN-0.5%FS



This auto zero flexible melt pressure transducer with 4-20mA output can matching with our N series digital pressure indicator to local display pressure .



auto zero flexible melt pressure transducer with 4-20mA output



Factory Show

auto zero flexible melt pressure transducer with 4-20mA output

Product Application

auto zero flexible melt pressure transducer with 4-20mA output

Our products are widely used in the field of hydraulic pressure, air pressure, petrochemical industry, automotive, air condition and compressor, construction machinery, plastic extrusion, chemical fiber, plastic rubber machine, non-woven fabrics and etc.

Quality Control

ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.

auto zero flexible melt pressure transducer with 4-20mA output



auto zero flexible melt pressure transducer with 4-20mA output

Customer Photo

auto zero flexible melt pressure transducer with 4-20mA output

Packaging & Shipping

auto zero flexible melt pressure transducer with 4-20mA output

Our Services

auto zero flexible melt pressure transducer with 4-20mA output

FAQ

auto zero flexible melt pressure transducer with 4-20mA output
