Specifications
melt pressure gauge1.all stainless steel structure
2.local index display
3.step-up ad stem-down versions
4.CE&ISO9000

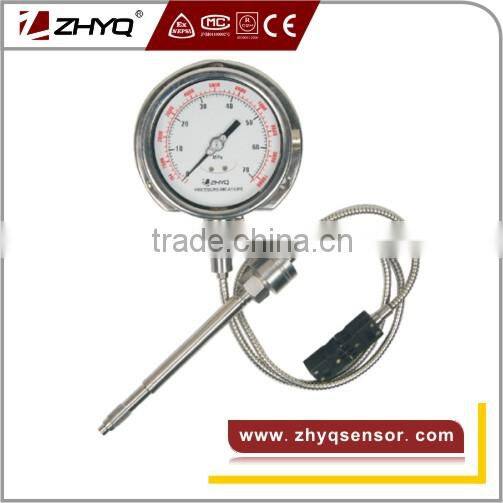

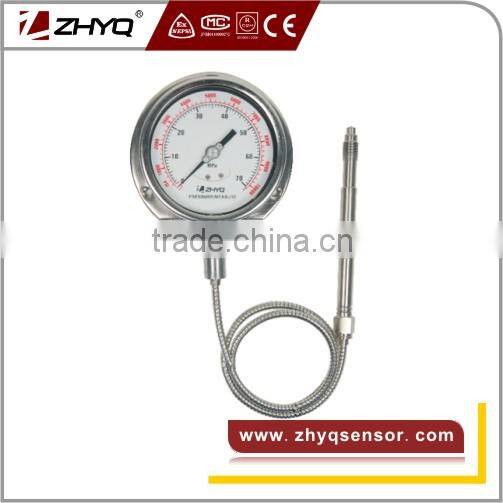

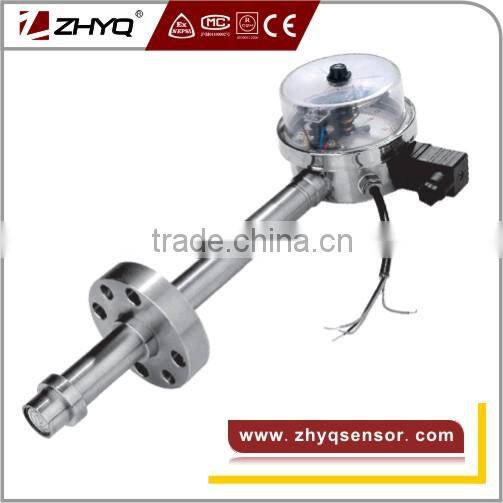

Electrical contact pressure gauge(manufacturer)
Features and benefits
Direct, local readings
Mechanical design
Step-up and stem-down versions
Gauge head rotates 360o for easy reading
0-100bar to 0-700bar pressure range
Stainless steel construction
12 months manufacturer's warranty
Install easily, high reliability
Zero adjustment
With contact switch signal output
Alarm relay
Applications
Chemical fiber and filature
Rubber & plastic machinery
The equipment of high temperature steam
High temperature fluid pressure measuring and controlling
Specification
Range |
0~100bar~700bar |
Output |
Contact switch signal 3A |
Accuracy |
±1.6%FS |
Input Voltage |
24VDC (12~36)VDC; 10VDC |
Configuration |
Bourdon tube |
Over Pressure |
1.5×FS |
Max Diaphragm Temperature |
350°C |
Needle sweep: |
270°C |
Dial Diameter |
100mm |
Flexible Length |
0.5…5M |
Electric connector |
Direct cable |
Process connector |
1/2″-20UNF, M14×1.5, M18×1.5(customer tailor) |
Ordering guide
Model |
Range |
Output |
Snout & Capillary |
Process connection |
Electric connection |
Other requirement |
PT124Y-616 |
--- |
--- |
--- |
--- |
--- |
--- |
Example: PT124Y-616-350Bar-6″/18”-1/2-20UNF | ||||||
