Description
PT124Y-625 axial installation homogenizer diaphragm pressure gauge is axial type anti vibration diaphragm pressure gauge with high strength screw sleeve to tightening sealing, adopt high elastic alloy corrugate diaphragm, imported bourdon tube, designed with all stainless steel structure. It is suitable for the corrosive medium process pressure measuring of many types of machinery, such as homogenizer, mulser, crusher and chemistry equipment and food machinery.
Application
Homogenizer, Mulser, Crusher
Chemistry, Food machinery
Medicine , Pharmacy machinery
Feature
Special mechanical design
Install easily
Fill in silicon oil(food grade)
Good shock-proof and anti-corrosion
High reliability and good repeatability
Specification
Name | PT124Y-625 axial installation homogenizer diaphragm pressure gauge |
Model | PT124Y-625 |
Range | 0-1MPa ~ 0-150MPa |
Accuracy | ±1.6%FS |
Configuration | Bourdon tube |
Over Pressure | 1.5×FS |
Dial Diameter | 100mm |
Needle sweep: | 270º |
Diaphragm material: | 15-5PH flush diaphragm |
Case material: | Stainless steel with safety glass |
Max Diaphragm Temp. | 125°C |
Process Connection | M20*1.5, M18×1.5,G3/4(Optional) |

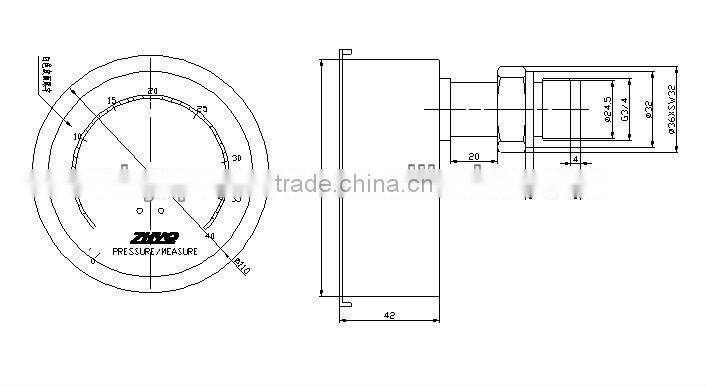

Dimension
Order guide with "* "are required , with "---"is optional
Model | Range | Output | Process connection | Other requirement |
PT124Y-625 | * | none | * | --- |
Example: PT124Y-625-350Bar-M20*1.5 | ||||
