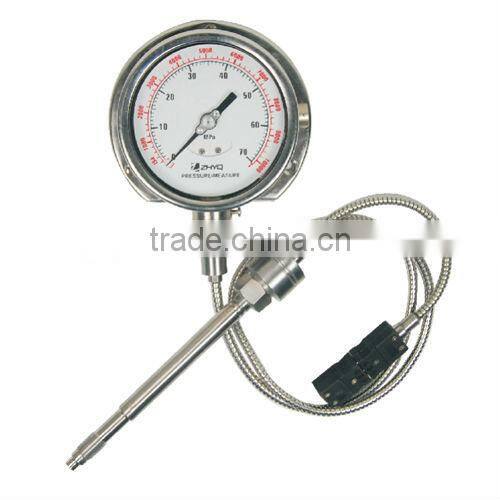

Mechanical Rigid Stem Melt Pressure Gauges(manufacturer)

Specifications

Mechanical melt pressure gauge
1.all stainless steel structure
2.local display
3.Step-up and stem-down versions
4.CE&ISO9000

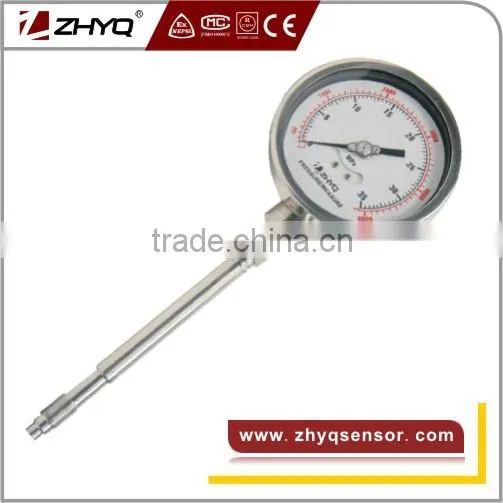

Mechanical rigid stem melt pressure gauges(manufacturer)



Features and benefits

Direct, local readings

Mechanical design

Step-up and stem-down versions

Gauge head rotates 360o for easy reading

0-100bar to 0-700bar pressure range

Stainless steel construction

12 months manufacturer's warranty

Install easily, high reliability

Zero adjustment



Applications

It can be widely used in chemical fiber and filature, rubber and plastic machinery, and other equipment of high temperature steam.



Specification

Range	0~100bar~700bar
Accuracy	±1.6%FS
Configuration	Bourdon tube
Over Pressure	1.5×FS
Dial Diameter	100mm
Needle sweep:	270º
Diaphragm material:	15-5PH
Case material:	Stainless steel with safety glass
Max Diaphragm Temp.	350°C
Process Connection	M22×1.5;M18×1.5,M14*1.5(Optional)



Ordering guide

Model	Range	Output	Snout Length	Process connection	Other requirement
PT124Y-610	---	none		---	---
Example:	Example: PT124Y-610-350Bar-6”-1/2-20UNF
