Specifications
capillary melt pressure gauge1.all stainless steel structure
2.zero adjustment
3.with output signal
4.CE&ISO9000

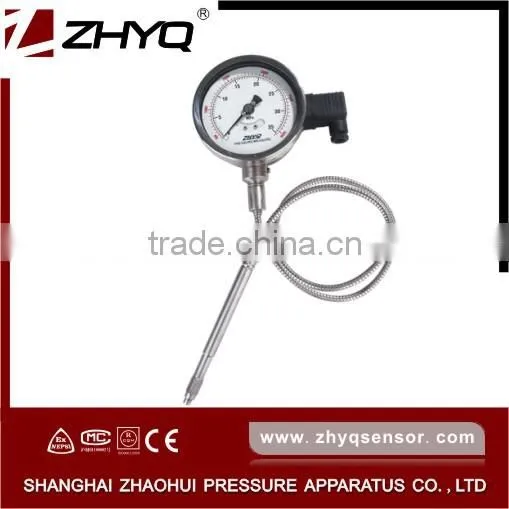

Capillary melt pressure gauge with output
Product Description
PT124Y-615 capillary melt pressure gauge adopts the original packaging machine stamen, and designed with all stainless steel structure, isolated diaphragm and local index display. With dial plate’s step-up and stem-down versions, the gauge head can be rotated 360°for unobstructed viewing
Features and benefits
Direct, local reading
Mechanical design
Step-up and stem-down version
Customer defined pressure gauge
Install easily, high reliability
Zero adjustment
With signal output
Applications
Chemical fiber and filature
Rubber & plastic machinery
The equipment of high temperature steam
High temperature fluid pressure measuring and controlling
Specification
Range |
0….6MPa to 0….150MPa |
Output |
0~5V; 0~10V; 4-20mA; 2mV/V; 3.33mV/V |
Accuracy |
±1.0%FS; ±1.5%FS |
Input Voltage |
24VDC (12~36)VDC; 10VDC |
Configuration |
Bourdon tube |
Over Pressure |
1.5×FS |
Max Diaphragm Temperature |
350°C |
Dial Diameter |
100mm |
Flexible Length |
0.5…5M (Optional) |
Electric connector |
DIN43650, 6PIN |
Process Connector |
1/2″-20UNF, M14×1.5, M18×1.5(Optional) |
Ordering guide
Model |
Range |
Output |
Snout & Capillary |
Process connection |
Electric connection |
Other requirement |
PT124Y-615 |
--- |
--- |
--- |
--- |
--- |
--- |
Example: PT124Y-615-350Bar-3.33mV/V-6″/18”-1/2-20UNF-DIN43650 | ||||||
