Specifications
homogenizer diaphragm pressure gauge1.stainless steel connector
2.anti-corrosive and shock proof
3.CE&ISO900
4.small orders

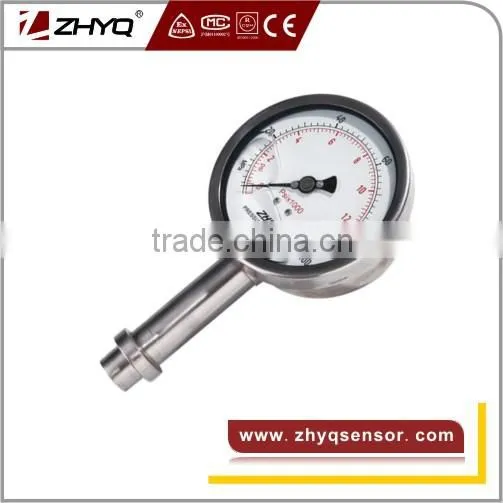

Plate diaphragm sanitary homogenizer pressure gauge
Description
PT124Y-622 pressure plate diaphragm pressure gauge, adopts imported bourdon tube, connector is used in all stainless steel. In addition to the general diaphragm pressure gauge performance, this pressure gauge also has good shock-proof and anti-corrosion. It is suitable for the process pressure measuring of much machineries, such as Homogenizer machine, Mulser, Crusher, Other food machinery and so on.
Application
Measuring liquid of large viscosity, easy to crystallize and solidify materials
Positive and negative pressure of corrosive media
Petrochemical
Alkali, chemical fiber, dyeing, pharmaceutical, food and dairy industries sector
Measure the fluid pressure of the medium
Feature
Cost effective, high price ratio
Mechanical design
Install easily
Fill in silicon oil(food grade)
Good shock-proof and anti-corrosion
High reliability and good repeatability
Specification
Range |
0~10bar to 0~500bar |
Accuracy |
±1.6%FS |
Configuration |
Bourdon tube |
Over Pressure |
1.5×FS |
Dial Diameter |
100mm |
Max Diaphragm Temp. |
125°C |
Process Connection |
Pressure Plate |

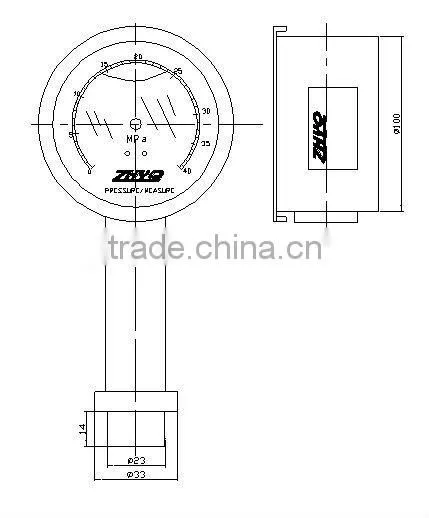

Dimension
Ordering guide
Model |
Range |
Output |
Process connection |
Other requirement |
PT124Y-622 |
--- |
nine |
--- |
--- |
Example: PT124Y-621-50Bar-pressure plate | ||||
FAQs
1. What's your MOQ?
We have no limits about MOQ, we can sell product to you even you just want 1 piece.
2. How long is the warranty?
We offer 12 months warranty for any quality problems of the product itself.
3. What terms of payment are available?
TT, Western Union and Moneygram.
4. How about the usual delivery time?
We will send goods to you within 15 working days.
5. What detailed information do we need to provide if we want to purchase an order?
Pressure range, output, accuracy, pressure connection and other related parameters.
6. Does quantity affects price?
Of course. For larger quantities, we will give you some discount. But small quantities are also welcomed.
Company Profile
We ZHYQ is the leading manufacture which specializes in the design and construction of various transducer, transmitter and automation control products for more than 13 years. Our main products contain melt pressure transmitter, pressure transmitter, automotive pressure sensors, pressure gauge, temperature transducer and pressure instrumentation. We service the markets of Industrial, Oil & Gas, Automation Control System, Plastics, Rubber, Composites and etc.
With the development strategy of offering High-tech, High Quality, High level service to every customer, we successfully passed ISO9001 (2008) and CE Certificates. What’s more, our products are highly welcomed in Asia, America, Europe, Africa, etc.
Your requirement is our creating power; your satisfaction is the greatest reward and confirmation to us. And we’ll make persistent efforts to improve our technology and service to meet your needs!
