100mm Bottom Type Standard Diaphragm Pressure Gauge

Specifications

standard diaphragm pressure gauge
1.stainless steel connector
2.anti-corrosive and shock proof
3.OEM service
4.CE&ISO9000

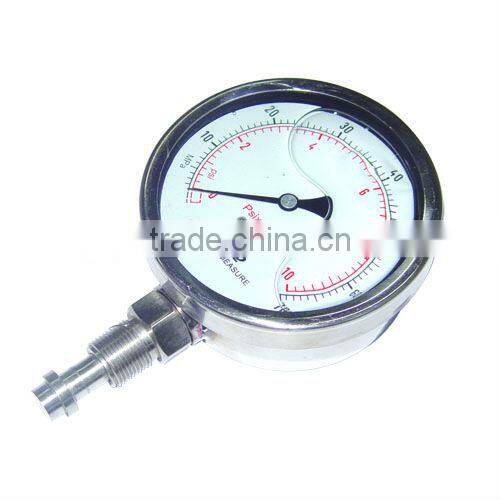

100mm bottom type standard diaphragm pressure gauge

Description

PT124Y-620 Standard diaphragm pressure gauge, adopts imported bourdon tube, connector is used in all stainless steel. In addition to the general diaphragm pressure gauge performance, this pressure gauge also has good shock-proof and anti-corrosion. Movable threaded mounting, case can be arbitrary 360 angle adjusting to the best viewing angle. It is suitable for the process pressure measuring of much machineries, such as Homogenizer machine, Mulser, Crusher, Other food machinery and so on.



Application

Measuring liquid of large viscosity, easy to crystallize and solidify materials

Positive and negative pressure of corrosive media

Petrochemical

Alkali, chemical fiber, dyeing, pharmaceutical, food and dairy industries sector

Measure the fluid pressure of the medium



Feature

Cost effective, high price ratio

Mechanical design

Install easily

Good shock-proof and anti-corrosion

High reliability and good repeatability



Specification

Range	0~1MPa~1500bar
Accuracy	±1.6%FS
Configuration	Bourdon tube
Over Pressure	1.5×FS
Dial Diameter	100mm
Max Diaphragm Temp.	125°C
Process Connection	M20*1.5;M18*1.5,G3/4(optional)

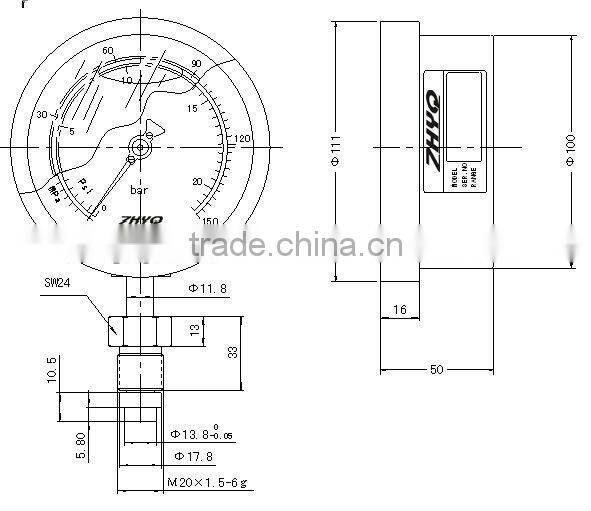

Dimension

























Ordering guide

Model	Range	Output	Process connection	Other requirement
PT124Y-620	---	none	---	---
Example: PT124Y-620-700Bar-M20×1.5





FAQs

1. What's your MOQ?

We have no limits about MOQ, we can sell product to you even you just want 1 piece.



2. How long is the warranty?

We offer 12 months warranty for any quality problems of the product itself.



3. What terms of payment are available?

TT, Western Union and Moneygram.



4. How about the usual delivery time?

We will send goods to you within 15 working days.



5. What detailed information do we need to provide if we want to purchase an order?

Pressure range, output, accuracy, pressure connection and other related parameters.



6. Does quantity affects price?

Of course. For larger quantities, we will give you some discount. But small quantities are also welcomed.
