Specifications
electric contact pressure gauge1.all stainless steel
2.local index display
3.step-up ad stem-down versions
4.CE&ISO900

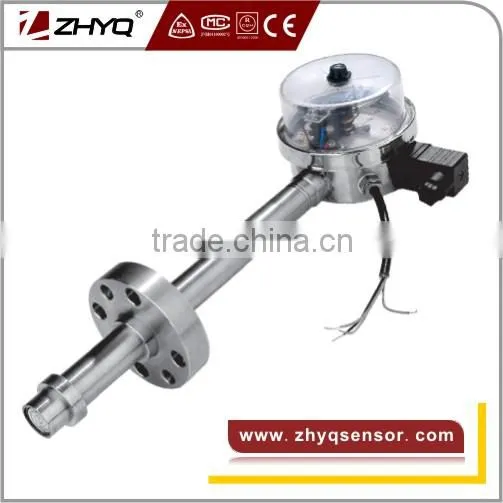

Electric contact melt pressure gauge with transducer output
Description
PT124Y-616 adopts the original packaging machine stamen with signal and electric contact output, and designed with all stainless steel structure, isolated diaphragm and local index display. With dial plate’s step-up and stem-down versions, the gauge head can be rotated 360°for unobstructed viewing.
Features and benefits
Direct, local readings
Mechanical design electric contact pressure gauge
Step-up and stem-down versions
Gauge head rotates 360o for easy reading
0-100bar to 0-700bar pressure range
Stainless steel construction electric contact pressure gauge
12 months manufacturer's warranty
Install easily, high reliability
Zero adjustment electric contact pressure gauge
With contact switch signal output
Alarm relay electric contact pressure gauge
Applications
Chemical fiber and filature
Rubber & plastic machinery
The equipment of high temperature steam
High temperature fluid pressure measuring and controlling
Specification
Range |
0….1MPa to 0….200MPa |
Output |
Contact switch signal |
Accuracy |
±1.6%FS electric contact pressure gauge |
Input Voltage |
24VDC (12~36)VDC; 10VDC |
Configuration |
Bourdon tube |
Over Pressure |
1.5×FS electric contact pressure gauge |
Max Diaphragm Temperature |
350°C |
Dial Diameter |
100mm electric contact pressure gauge |
Flexible Length |
0.5…5M |
Electric connector |
Direct cable electric contact pressure gauge |
Process connector |
1/2″-20UNF, M14×1.5, M18×1.5(customer tailor) |
Ordering guide
Model |
Range |
Output |
Snout & Capillary |
Process connection |
Electric connection |
Other requirement |
PT124Y-616 |
--- |
--- |
--- |
--- |
--- |
--- |
Example: PT124Y-616-350Bar-6″/18”-1/2-20UNF | ||||||
