Flexible Stem Melt Pressure Gauge

Flexible Stem Melt Pressure Gauge thumbnail-1
Flexible Stem Melt Pressure Gauge photo-1
US$ 180 - 380 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
ZHYQ
Model Number:
PT124Y-614
Contact Supplier Request Quote Chat Now
Shanghai Zhaohui Pressure Apparatus Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name ZHYQ
Model Number PT124Y-614

Specifications

100mm pressure gauge
1.Direct, local readings
2.Mechanicl design
3.Step-up and stem-down versions
4.CE&ISO9000 approved

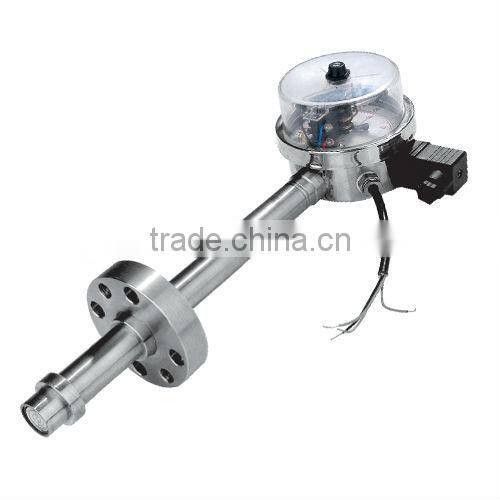

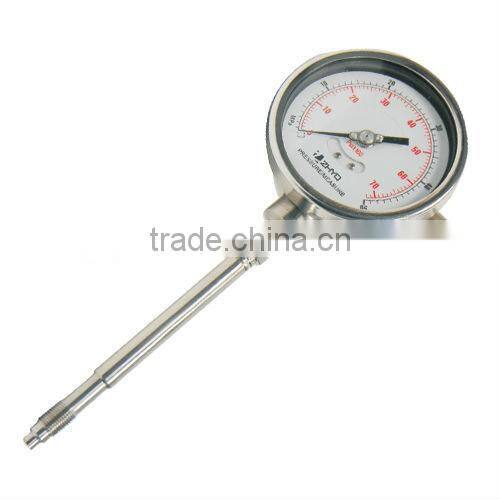

Flexible stem melt pressure gauge



Features and benefits

Direct, local readings

Mechanical design 100mm pressure gauge

Step-up and stem-down versions

Gauge head rotates 360o for easy reading

0-10MPa to 0-70MPa

Stainless steel construction 100mm pressure gauge

12 months manufacturer's warranty

Install easily, high reliability 100mm pressure gauge

Zero adjustment 100mm pressure gauge



Applications

It can be widely used in chemical fiber and filature, rubber and plastic machinery, and other equipment of high temperature steam.



Specification

Range

0….10MPa to 0….70MPa

Accuracy

±1.6%FS

Configuration

Bourdon tube

Over Pressure

1.5×FS

Max Diaphragm Temperature

350°C

Dial Diameter

100mm

Flexible Length

0.5…..5M

Process Connection

1/2″-20UNF, M14×1.5, M18×1.5(Optional)



Ordering guide

Model

Range

Output

Snout & Flexible length

Process connection

Other requirement

PT124Y-614

---

none

---

---

---

Example: PT124Y-614-350Bar-6″/18”-1/2-20UNF
