Help CenterExplosion Proof Pt100 Temperature Sensor China Manufacturer
Related Products
Specifications
pt100 temperature sensor1.4-20mA/PT100 output
2.stainless steel connection tube
3.CE&ISO9001 certificates
Explosion proof pt100 temperature sensor china manufacturer
Description
WR-202 Card type thread mounted thermocouple/ resistance adopts thermocouple or resistance as the temperature measuring element, it is normally matched with display, recording and regulating instrument, to measure the surface temperature (from -50 degree to 400 degree) of liquid, steam, gas and solid during various production process.
Application
General industrial gas and liquid temperature measurement
Standard temperature thermocouple
Material | Type | Range°C | Tolerance |
Ni/Ch-Ni/Si | K | 800-1200 | ±2.5 or±0.75%t |
Ni/Ch-Cu | E | 600-800 | ±2.5 or ±0.75%t |
Cu | T | 350-400 | ±2.5 or ±0.75%t |
Fe-Cu | J | 600-700 | ±2.5 or ±0.75%t |
Pt | PT100 | 0-600 | ±1 or ±0.75%t |
Cu | CU50 | -50~100 | ±2.5 or ±0.75%t |

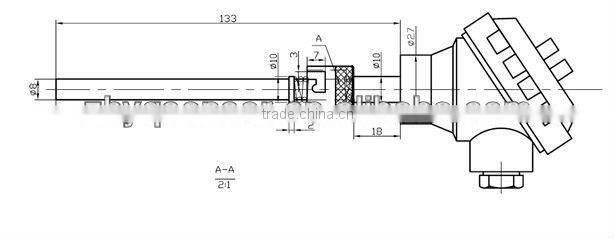

Dimension
Specification
Model | WR-202 pt100 temperature sensor |
Temperature range | -50 to +400°C |
Output | 4-20mA or PT100 temperature sensor |
Power supply | 10 ~30VDC pt100 temperature sensor |
error | 0.1%FS, 0.3%FS, 0.5%FS |
Media compatibility | 316L stainless steel |
Pressure connection | Thread M20, M18*1.5 pt100 temperature sensor |
Protection tube | Stainless steel 6mm and 8mm dia. |
Insert length (L) | 30mm <L<500mm pt100 temperature sensor |
Sensing element | J, PT100 temperature sensor resistance thermocouple |
Electrical connector | Waterproof junction box |
FAQs
1. What's your MOQ?
We have no limits about MOQ, we can sell product to you even you just want 1 piece.
2. How long is the warranty?
We offer 12 months warranty for any quality problems of the product itself.
3. What terms of payment are available?
TT, Western Union and Money gram.
4. How about the usual delivery time?
We will send goods to you within 15 working days.
5. What detailed information do we need to provide if we want to purchase an order?
Pressure range, output, accuracy, pressure connection and other related parameters.
6. Does quantity affects price?
Of course. For larger quantities, we will give you some discount. But small quantities are also welcomed.
Company information
We ZHYQ is the leading manufacture which specializes in the design and construction of various transducer, transmitter and automation control products for more than 13 years. Our main products contain melt pressure transmitter, pressure transmitter, automotive pressure sensors, pressure gauge, temperature transducer and pressure instrumentation. We service the markets of Industrial, Oil & Gas, Automation Control System, Plastics, Rubber, Composites and etc.
With the development strategy of offering High-tech, High Quality, High level service to every customer, we successfully passed ISO9001 (2008) and CE Certificates. What’s more, our products are highly welcomed in Asia, America, Europe, Africa, etc.
Your requirement is our creating power; your satisfaction is the greatest reward and confirmation to us. And we’ll make persistent efforts to improve our technology and service to meet your needs!
