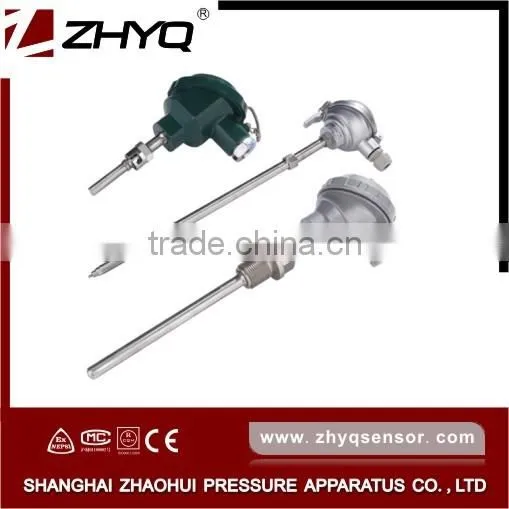

RTD Thermal resistance temperature sensor PT100
Description
WR-202 RTD Thermal resistance temperature sensor PT100 adopts thermocouple or resistance as the temperature measuring element, RTD Thermal resistance temperature sensor PT100 is normally matched with display, recording and regulating instrument, to measure the surface temperature (from -50 degree to 400 degree) of liquid, steam, gas and solid during various production process.
Application
General industrial gas and liquid temperature measurement
Standard temperature thermocouple
Material |
Type |
Range°C |
Tolerance |
Ni/Ch-Ni/Si |
K |
800-1200 |
±2.5 or±0.75%t |
Ni/Ch-Cu |
E |
600-800 |
±2.5 or ±0.75%t |
Cu |
T |
350-400 |
±2.5 or ±0.75%t |
Fe-Cu |
J |
600-700 |
±2.5 or ±0.75%t |
Pt |
PT100 |
0-600 |
±1 or ±0.75%t |
Cu |
CU50 |
-50~100 |
±2.5 or ±0.75%t |
Dimension
RTD Thermal resistance temperature sensor PT100
Specification
Model |
WR-202 RTD Thermal resistance temperature sensor PT100 |
Temperature range |
-50 to +400°C |
Output |
4-20mA or RTD PT100 temperature sensor e |
Power supply |
10 ~30VDC resistance thermocouple |
error |
0.1%FS, 0.3%FS, 0.5%FS |
Media compatibility |
316L stainless steel |
Pressure connection |
Thread M20, M18*1.5 RTD PT100 temperature sensor |
Protection tube |
Stainless steel 6mm and 8mm dia optional |
Insert length (L) |
30mm <L<500mm resistance thermocouple |
Sensing element |
RTD PT100 temperature sensor |
Electrical connector |
Waterproof junction box |
FAQs
1. What's your MOQ?
We have no limits about MOQ, we can sell product to you even you just want 1 piece.
2. How long is the warranty?
We offer 12 months warranty for any quality problems of the product itself.
3. What terms of payment are available?
TT, Western Union and Money gram.
4. How about the usual delivery time?
We will send goods to you within 15 working days.
5. What detailed information do we need to provide if we want to purchase an order?
Pressure range, output, accuracy, pressure connection and other related parameters.
6. Does quantity affects price?
Of course. For larger quantities, we will give you some discount. But small quantities are also welcomed.

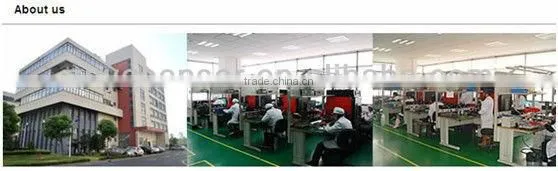

We ZHYQ is the leading manufacture which specializes in the design and construction of various transducer, transmitter and automation control products for more than 13 years. Our main products contain melt pressure transmitter, pressure transmitter, automotive pressure sensors, pressure gauge, temperature transducer and pressure instrumentation. We service the markets of Industrial, Oil & Gas, Automation Control System, Plastics, Rubber, Composites and etc.
With the development strategy of offering High-tech, High Quality, High level service to every customer, we successfully passed ISO9001 (2008) and CE Certificates. What’s more, our products are highly welcomed in Asia, America, Europe, Africa, etc.
Your requirement is our creating power; your satisfaction is the greatest reward and confirmation to us. And we’ll make persistent efforts to improve our technology and service to meet your needs!

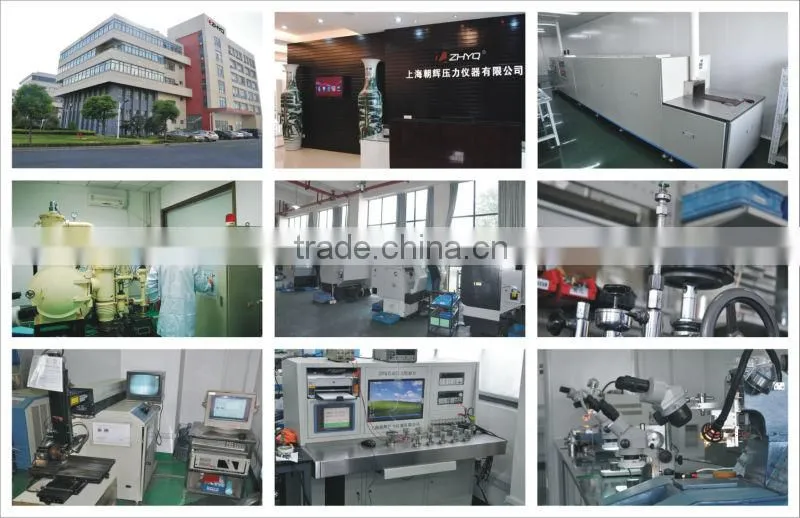

Factory show
Certificates
FAQs
1. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before ship to our clients.
2. How fast can you deliver goods?
For small orders (less than 20 pieces), we can deliver within 7 working days, for bulk orders, we usually need 15 working days. But if you need goods urgently, we can arrange expedited production.
3. What’s your MOQ and how long is your product warranty?
We have no MOQ limits, so 1 piece for test purpose at first is acceptable.
We offer 1 year warranty for all of our products, in the warranty term, if there are any problems with the product itself, we would repair it for free.
4. What’s your production capacity and can you offer free samples?
Our production capacity is about 8,000 pieces per month. Yes, we offer free samples, however you should pay for the samples at first, and then we will return the cost when you release bulk order.
5. What detailed information do we need to provide if we want to place an order?
We need to know the following info, such as application, pressure range, output, accuracy, thread type, electric connector and other related parameters.
6. What types of payment terms and trade terms can you accept?
Payment terms: TT, Western Union, Money Gram, etc
Trade terms: Ex. Works, FOB, CNF, etc.
7. What express ways can you offer, can we use our own courier?
We can send goods to you by DHL, TNT, UPS, SF, EMS, and charge the freight cost from you, or you can use your own courier, just for your convenience.
