Specifications
temperature sensor 0-10v1.explosion proof
st effective
3.high pressure resistance
4.CE&ISO9001 certificates

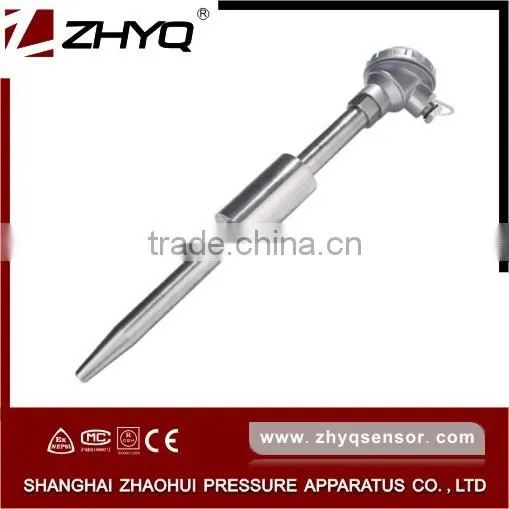

Temperature sensor 0-10v PT100
Product Description
WR-201 Series industrial explosion proof temperature sensor 0-10V, which is used widely in the automatic control system of the chemical industry, it can convert the temperature parameters of control object into electrical signal, and transfer to the indicator, recorder and accommodometer, to monitor, adjust and control the industrial systems.
Application
In chemical plant, there are various flammable and explosive chemical gases around the production site. It’s unsafe and easy to cause environmental gas explosion if use common thermocouples, it needs to use flameproof thermocouple as temperature measurement instrument in these cases.
Explosion proof principle
It uses the gap flameproof principle and design the sufficient strength junction box and other part. All the components which can cause a spark, arc and dangerous temperature are sealed in the junction box When it happen explosion in the cavity, the joint side can make flameout and cool, to prevent the flame and temperature after explosion from spreading out of the cavity.
Dimension
Specification
Model |
WR-201 temperature sensor 0-10V |
Temperature range |
-50 to +400°C |
Output |
4-20mA or PT100 temperature sensor 0-10V |
Power supply |
10 ~30VDC temperature sensor 0-10V |
error |
0.1%FS, 0.3%FS, 0.5%FS |
Media compatibility |
316L stainless steel |
Pressure connection |
Thread M20, M18*1.5 |
Protection tube |
Stainless steel 6mm and 8mm dia. |
Insert length (L) |
30mm <L<500mm temperature sensor 0-10V |
Sensing element |
J, PT100 temperature sensor |
Electrical connector |
Waterproof junction box |
Typical application |
General industrial gas and liquid temperature measurement |
FAQs
1. What's your MOQ?
We have no limits about MOQ, we can sell product to you even you just want 1 piece.
2. How long is the warranty?
We offer 12 months warranty for any quality problems of the product itself.
3. What terms of payment are available?
TT, Western Union and Money gram.
4. How about the usual delivery time?
We will send goods to you within 15 working days.
5. What detailed information do we need to provide if we want to purchase an order?
Pressure range, output, accuracy, pressure connection and other related parameters.
6. Does quantity affects price?
Of course. For larger quantities, we will give you some discount. But small quantities are also welcomed.
