Specifications
spoke style load cell1.alloy steel/stainless steel
2.hermetically sealed by laser
3.explosion proof
4.CE&ISO9000 certified

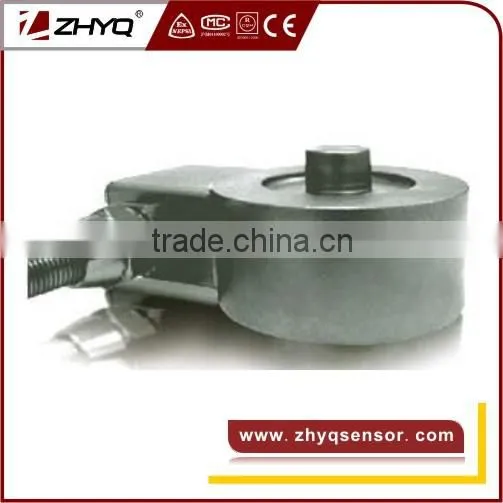

Spoke style load cell sensor with outstanding corrosion and explosion resistance
Description
1,material:alloy steel/stainless steel
2,spoke style
3,cost effective
4,high capacity
5,high precision
6,hermetically sealed by laser
7.outstanding corrosion and explosion resistance
Application
Electronic platform scales, truck scales, railroad track scales, hopper scales, etc.
Parameters
Rated Load(t) |
0.05, 1, 2, 5, 10, 20 |
|||
Precision |
C1 |
G1 |
Insulation Resistance(MΩ) |
≥5000(100VDC) |
Comprehensive Error(%F.S) |
0.05 |
0.1 |
Excitation Voltage(V) |
9~12(DC) |
Rated output(mv/v) |
2.0±0.04 |
Compensated temp.Range(°C ) |
-10~+40 |
|
Non-linearity(%F.S) |
0.05 |
0.1 |
Use Temp. Range(°C ) |
-35~+65 |
Hysteresis(%F.S) |
0.05 |
0.1 |
Temp.Effect on Zero(%F.S/10°C) |
0.03 |
Repeatability(%F.S) |
0.03 |
0.05 |
Temp.Effect on Span(%F.S/10°C) |
0.02 |
Creep(%F.S/30min) |
0.02 |
0.1 |
Safe Overload (%F.S) |
150 |
Zero Balance(%F.S) |
±1 |
Ultimate Overload(%F.S) |
200 |
|
Input Resistance(Ω) |
730±4 |
Defend Grade |
IP68 |
|
Output Resistance(Ω ) |
700±3 |
Cable (4PIN) |
3-5m |
|

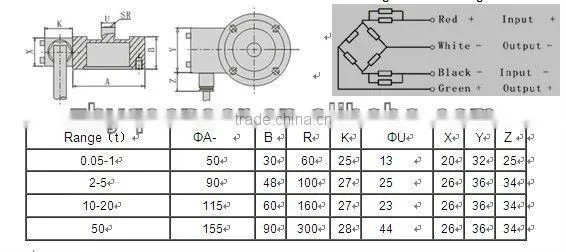

Dimensions
