Help CenterHigh Precision and Reliability Board Style Load Cell
Related Products
Specifications
board style load cell1.high precision and reliability
2.small orders are available
3.CE&ISO9000 certified

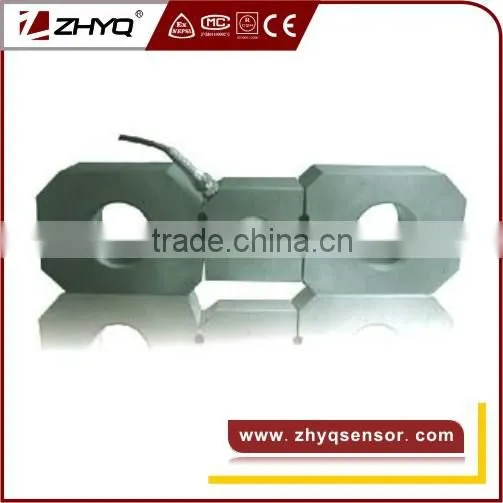

High precision and reliability board style load cell
Description:
1,material:alloy steel or stainless steel
2.board type
3,thin wall and blind hole structure
4,high capacity
5,high precision
6,strong anti-deflective loading
7,good shock resistance ,simple to install
8,moistureproof sealed,ideal for hostile enviroment
Application
Suitable for batch weigher , crane scale , hopper scale and various special scales ,process control devices.
Parameters
Rated Load(t) |
2, 3, 5, 10, 15, 20, 30 |
||
Precision |
C2 |
Insulation Resistance(MΩ) |
≥5000(100VDC) |
Comprehensive Error(%F.S) |
0.03 |
Excitation Voltage(V) |
9~12(DC) |
Rated output(mv/v) |
1.5±0.01 |
Compensated temp.Range(°C ) |
-10~+40 |
Non-linearity(%F.S) |
0.02 |
Use Temp.Range(°C ) |
-35~+65 |
Hysteresis(%F.S) |
0.02 |
Temp.Effect on Zero(%F.S/10°C) |
0.03 |
Repeatability(%F.S) |
0.015 |
Temp.Effect on Span(%F.S/10°C) |
0.01 |
Creep(%F.S/30min) |
0.02 |
Safe Overload(%F.S) |
150 |
Zero Balance(%F.S) |
±1 |
Ultimate Overload(%F.S) |
200 |
Input Resistance(Ω) |
350±10 |
Defend Grade |
IP65 |
Output Resistance(Ω ) |
350±3 |
Cable (4PIN) |
3m |
Dimensions
Range(t) |
2 |
3 |
5 |
10 |
30 |
30 |
A |
200 |
200 |
227 |
340 |
340 |
340 |
B |
133 |
133 |
147 |
210 |
210 |
210 |
C |
60 |
60 |
70 |
100 |
100 |
100 |
D |
22 |
22 |
28 |
38 |
44 |
54 |
E |
32 |
32 |
40 |
50 |
50 |
50 |
