Specifications
shear beam load cell1.high stability
2.one side glue-sealing
3.alluminum alloy
lorless anodized
High stability shear beam load cell
Description
1,material:alluminum alloy
2,shear beam
3,cost effective
4,high capacity
5,high precision
6,one side glue-sealing
7,colorless anodized
Application
Used abroad in every kind of electronic weighing systems like Electronic counting scales / Platform scales.
Parameters
Precision : C2 / C3
Output Resistance(O ) :350±3
Comprehensive Error(%F.S):0.03 / 0.02
Insulation Resistance(MO): ≥5000(100VDC)
Rated output(mv/v) : 2.0±0.1
Excitation Voltage(V) : 9~12(DC)
Non-linearity(%F.S) : 0.03 / 0.017
Compensated temp.Range(°C ) : -10~+40
Hysteresis(%F.S) : 0.03 / 0.02
Use Temp. Range(°C ) :-35~+65
Repeatability(%F.S) : 0.02 / 0.01
Temp.Effect on Zero(%F.S/10°C) : 0.03 / 0.017
Creep(%F.S/30min) :0.02
Temp.Effect on Span(%F.S/10°C): 0.02 / 0.014
Zero Balance(%F.S) : ±1
Safe Overload (%F.S) : 120
Input Resistance(O) :405±6
Defend Grade: IP65

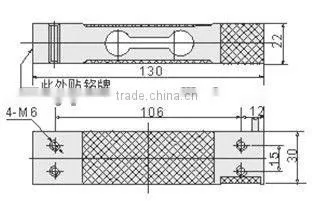

Dimensions
Remarks
Four-core shiwlded cable is attached 0.42m,the cable length can be changed accriding to customer's reques.
