Alloy Steel/stainless Steel Shear Beam Load Cell Sensor

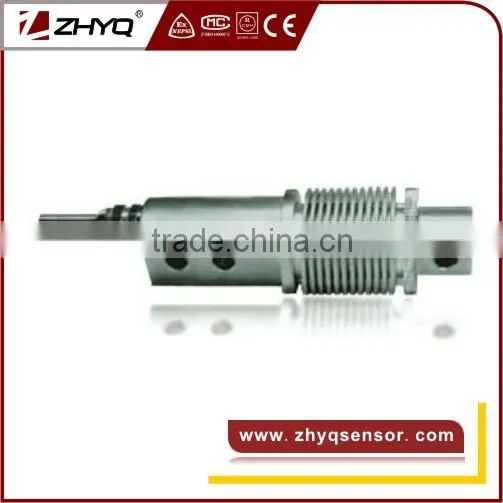

Alloy Steel/stainless Steel Shear Beam Load Cell Sensor photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
ZHYQ
Model Number:
CZL-810
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Brand Name ZHYQ
Model Number CZL-810
Usage Pressure Sensor
Theory Resistance Sensor
Output Analog Sensor

Specifications

shear beam load cell
1.high stability
petitive cost
3.alloy steel/stainless steel structure
4.CE&ISO9000 certified

Alloy steel/stainless steel shear beam load cell sensor



Description

1,material:alloy steel/stainless steel

2,shear beam
3,cost effective

4,high capacity

5,high precision

6,hermetically sealed by laser

7.IP 68



Application

Platform scales, hopper scales, truck scales, etc.



Parameters

Rated Load(kg)

20,30,50,100,200,300,350,500

 Precision

 C3

Insulation Resistance(MΩ)

 ≥5000(100VDC)

 Comprehensive Error(%F.S)

 0.02

Excitation Voltage(V)

 10(DC)

 Rated output(mv/v)

 2±0.002

Compensated temp.Range(°C )

 -10~+40

 Non-linearity(%F.S)

 0.017

Use Temp.Range(°C )

-20~+55

 Hysteresis(%F.S)

 0.02

Temp.Effect on Zero(%F.S/10°C

 0.02

 Repeatability(%F.S)

 0.01

Temp.Effect on Span(%F.S/10°C

 0.014

 Creep(%F.S/30min)

 0.02

Safe Overload (%F.S)

 150

 Zero Balance(%F.S)

 ±1

Ultimate Overload(%F.S)

 200

 Input Resistance(Ω)

 350±3

Defend Grade

IP67/IP68

 Output Resistance(Ω )

 350±10

Cable

RVVP4*12/0.15*3m

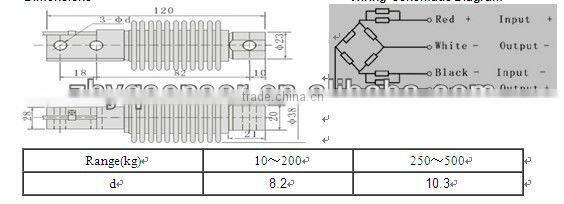

 Dimensions

Alloy steel/stainless steel shear beam load cell sensor
