Specifications
parallel beam load cell1.high precision and reliability
2.glue-sealing
4.aluminum alloy material
3.CE&ISO9000 certified

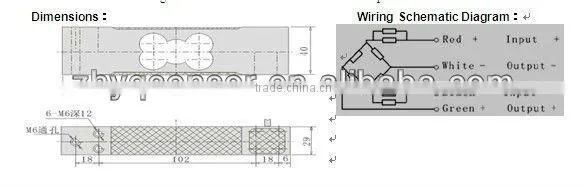

Hot selling high quality electronic balance parallel beam load cell
Description:
1,material:aluminum alloy
2,parallel alloy type
3,cost effective
4,high capacity
5,high precision
6,glue-sealing
7,good shock resistance ,simple to install
Application
Suitable for Electronic counting scales / Platform scales etc.Recommended platform size: 200×200mm .
Parameters
Rated Load(kg) |
5,10,20,50,60,75,100,120 |
||||
Precision |
C2 |
C3 |
Lnsulation Resistance(MΩ) |
≥5000(100VDC) |
|
Comprehensive Error(%F.S) |
0.03 |
0.02 |
Excitation Voltage(V) |
9~12(DC) |
|
Rated output(mv/v) |
2±0.1 |
Compensated temp.Range(°C ) |
-10~+40 |
||
Non-lineraity(%F.S) |
0.03 |
0.017 |
Use Temperature Range(°C ) |
-35~+65 |
|
Hystersis(%F.S) |
0.03 |
0.02 |
Temp.Effect on Zero(%F.S/10°C) |
0.03 |
0.02 |
Repeatability(%F.S) |
0.02 |
0.01 |
Temp.Effect on Span(%F.S/10°C) |
0.02 |
0.014 |
Creep(%F.S/30min) |
0.02 |
Safe Overload (%F.S) |
120 |
||
Zero Balance(%F.S) |
±2 |
Ultimate Overload(%F.S) |
150 |
||
Input Resistance(Ω) |
405±6 |
Defend Grade |
IP65 |
||
Output Resistance(Ω ) |
350±5 |
Cable |
φ5, 3m |
||
CZL-623
Rated Load(kg) |
15-200 |
||||
Precision |
C2 |
C3 |
Insulation Resistance(MΩ) |
≥5000(100VDC) |
|
Comprehensive Error(%F.S) |
0.03 |
0.02 |
Excitation Voltage(V) |
9~12(DC) |
|
Rated output(mv/v) |
2±0.1 |
Compensated temp.Range(°C ) |
-10~+40 |
||
Non-linearity(%F.S) |
0.03 |
0.017 |
Use Temp. Range(°C ) |
-35~+65 |
|
Hysteresis(%F.S) |
0.03 |
0.02 |
Temp.Effect on Zero(%F.S/10°C) |
0.03 |
0.017 |
Repeatability(%F.S) |
0.01 |
Temp.Effect on Span(%F.S/10°C) |
0.02 |
0.014 |
|
Creep(%F.S/30min) |
0.02 |
Safe Overload (%F.S) |
120 |
||
Zero Balance(%F.S) |
±2 |
Ultimate Overload(%F.S) |
150 |
||
Input Resistance(Ω) |
405±6 |
Defend Grade |
IP65 |
||
Output Resistance(Ω ) |
350±5 |
Cable (4PIN) |
φ5, 3m |
||
CZL-623B
