Help CenterAluminum Alloy Structure S Type Load Cell
Related Products
-
Hot Selling High Quality Electronic Balance Parallel Beam Load CellNegotiableMOQ: 10 Pieces -
Reliable Bridge Style Load CellNegotiableMOQ: 10 Pieces
-
Spoke Style Load Cell Sensor With Outstanding Corrosion and Explosion ResistanceNegotiableMOQ: 10 Pieces
-
Alloy Steel/stainless Steel Shear Beam Load Cell SensorNegotiableMOQ: 10 Pieces
-
Truck Scales Shear Beam Load Cell SensorNegotiableMOQ: 10 Pieces
Specifications
S type load cell1.high precision and reliability
2.glue-sealing
4.aluminum alloy structure
3.high quality

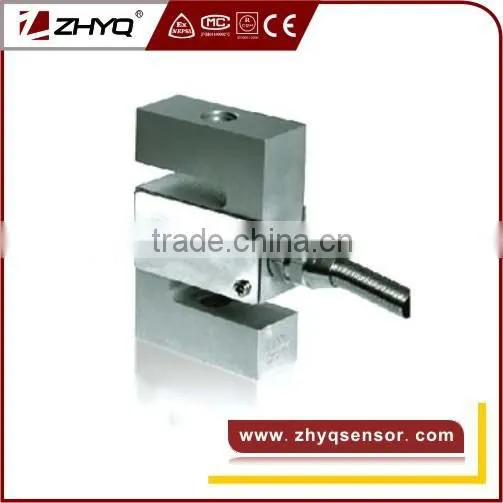

Aluminum alloy structure S typeload cell
Description
1,material:aluminum alloy steucture
2,S type
3,cost effective
4,high capacity
5,high precision
6,glue-sealing
7,for use in tension and compression
Application
Suitable for portable scales, tension or compression applications.
Parameters
Rated Load(kg) |
5, 10, 20, 50, 100, 150, 200, 300, 500 |
||
Precision |
C2 |
Insulation Resistance(MΩ) |
≥5000(100VDC) |
Composition Error(%F.S) |
0.03 |
Excitation Voltage(V) |
10(DC) |
Rated output(mv/v) |
2.0±0.02 |
Compensated temp.Range(°C ) |
-10~+40 |
Non-linearity(%F.S) |
0.03 |
Use Temp. Range(°C ) |
-20~+55 |
Hysteresis(%F.S) |
0.03 |
Temp.Effect on Zero(%F.S/10°C) |
0.03 |
Repeatability(%F.S) |
0.01 |
Temp.Effect on Span(%F.S/10°C) |
0.03 |
Creep(%F.S/30min) |
0.02 |
Safe Overload (%F.S) |
120 |
Zero Balance(%F.S) |
±1 |
Ultimate 0verload(%F.S) |
150 |
Input Resistance(Ω) |
350±3 |
Defend Grade |
IP65 |
Output Resistance(Ω ) |
350±10 |
Cable (4PIN) |
RWP4*12 |

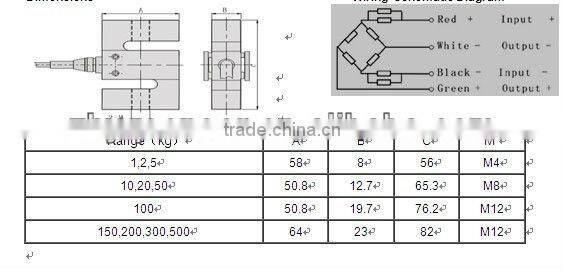

Dimensions
