Help CenterSpoke Style Load Cell Sensor With Outstanding Corrosion and Explosion Resistance
Related Products
-
Alloy Steel Structure Bridge Style Load CellNegotiableMOQ: 10 Pieces -
Column Style Load CellNegotiableMOQ: 10 Pieces
-
Mouti-column Style Compression Load CellNegotiableMOQ: 1 Piece
-
High Capacity Spoke Style Load Cell SensorNegotiableMOQ: 10 Pieces
-
Sample and Reliable Spoke Style Load Cell SensorNegotiableMOQ: 10 Pieces
Specifications
spoke style load cell1.alloy steel/stainless steel
2.hermetically sealed by laser
3.explosion proof
4.CE&ISO9000 certified

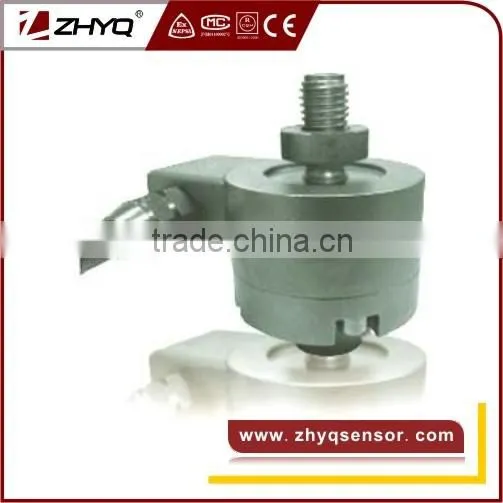

Spoke style load cell sensor with outstanding corrosion and explosion resistance
Description
1,material:alloy steel/stainless steel
2,spoke style
3,cost effective
4,high capacity
5,high precision
6,hermetically sealed by laser
7.outstanding corrosion and explosion resistance
Application
Force control and measurement in producing process, etc.
Parameters
Rated Load(t) |
0.05, 1, 2, 5, 10, 20 |
|||
Precision |
C1 |
G1 |
Insulation Resistance(MΩ) |
≥5000(100VDC) |
Comprehensive Error(%F.S) |
0.05 |
0.1 |
Excitation Voltage(V) |
9~12(DC) |
Rated output(mv/v) |
2.0±0.04 |
Compensated temp. Range(°C ) |
-10~+40 |
|
Non-linearity(%F.S) |
0.05 |
0.1 |
Use Temp. Range(°C ) |
-35~+65 |
Hysteresis(%F.S) |
0.05 |
0.1 |
Temp.Effect on Zero(%F.S/10°C) |
0.03 |
Repeatability(%F.S) |
0.03 |
0.05 |
Temp.Effect on Span(%F.S/10°C) |
0.02 |
Creep(%F.S/30min) |
0.02 |
0.1 |
Safe Overload (%F.S) |
150 |
Zero Balance(%F.S) |
±1 |
Ultimate Overload(%F.S) |
200 |
|
Input Resistance(Ω) |
730±4 |
Defend Grade |
IP68 |
|
Output Resistance(Ω ) |
700±3 |
Cable(4PIN) |
3-5m |
|
CZL-206
Rated Load(t) |
1, 2, 3, 5, 10, 20 |
||
Precision |
C1 |
Insulation Resistance(MΩ) |
≥5000(VDC) |
Comprenhensive Error(%F.S) |
0.05 |
Excitation Voltage(V) |
9~12(DC) |
Rated output(mv/v) |
3.0±0.03 |
Compensated temp.Range(°C ) |
-10~+40 |
Non-linearity(%F.S) |
0.05 |
Use Temp.Range(°C ) |
-35~+65 |
Hysteresis(%F.S) |
0.05 |
Temp.Effect on Zero(%F.S/10°C) |
0.03 |
Repeatability(%F.S) |
0.03 |
Temp.Effect on Span(%F.S/10°C) |
0.02 |
Creep(%F.S/30min) |
0.02 |
Safe Overload (%F.S) |
150 |
Zero Balance(%F.S) |
±1 |
Ultimate Overload(%F.S) |
200 |
Input Resistance(Ω) |
700±10 |
Defend Grade |
IP67/IP68 |
Output Resistance(Ω ) |
700±10 |
Cable (4PIN) |
,3~5m |
CZL-207
Dimensions

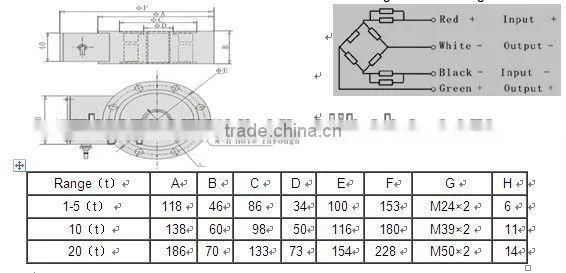

CZL-206

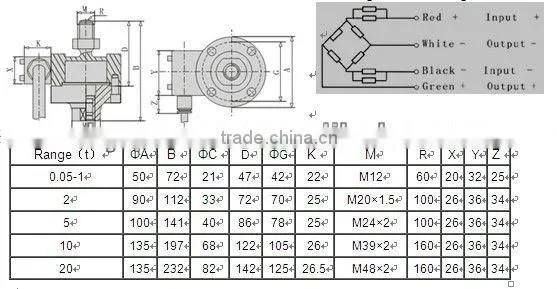

CZL-207
