Specifications
spoke style load cell1.alloy steel
2.sample and reliable
3.easy to install and use
4.CE&ISO9000 certified

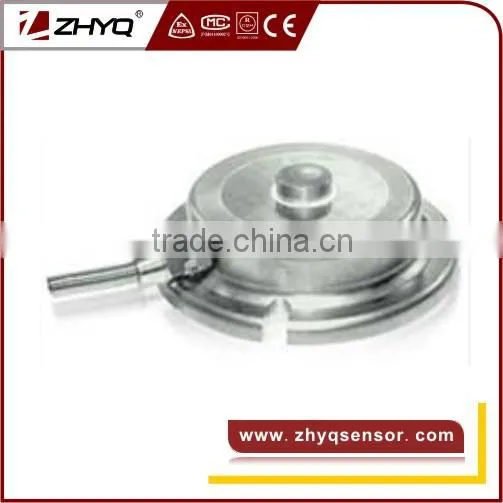

Sample and reliable spoke style load cell sensor
Description
1,material:alloy steel
2,spoke style
3,cost effective
4,high capacity
5,high precision
6, easy to install and use
Application
Electronic platform scales, truck scales, railroad track scales, hopper scales, etc.
Parameters
Precision : C1 / C2 |
Comprehensive Error(%F.S) : |
Rated output(mv/v) :2.0±0.01 |
Non-linearity(%F.S) : 0.05 / 0.03 |
Hysteresis(%F.S) : 0.05 / 0.03 |
Repeatability(%F.S) : 0.01 |
Creep(%F.S/30min) : 0.02 |
Zero Balance(%F.S) : ±1 |
Input Resistance(O) : 700±10 |
Output Resistance(O ) : 700±3 |
Insulation Resistance(MO): |
Excitation Voltage(V) : 9~12(DC) |
Compensated temp.Range(°C ) : -10~+40 |
Use Temp. Range(°C ) : -20~+55 |
Temp.Effect on Zero(%F.S/10°C) : 0.03 |
Temp.Effect on Span(%F.S/10°C): 0.02 |
Safe Overload (%F.S) : 150 |
Defend Grade : IP65 |
Dimensions
