Specifications
column style load cell1.high precision and reliability
2.small orders are available
3.CE&ISO9000 certified

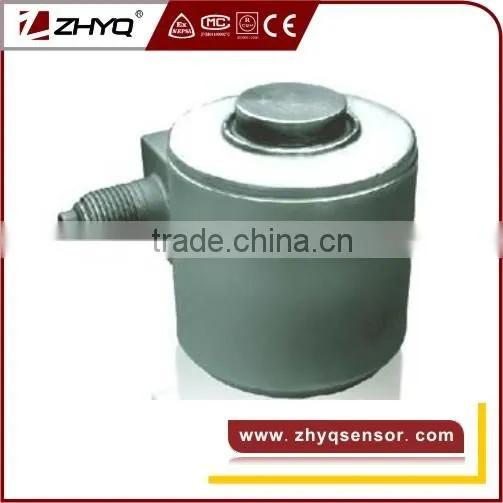

Column style load cell
Description:
1,material:alloy steel or stainless steel structure
2.multi-column type
3,cost effective
4,high capacity
5,high precision
6,strong anti-thuder loading
7,good shock resistance ,simple to install
Application
Suitable for railroad truck scales, hopper scales, truck scales, etc.
Parameters
Rated Load(t) |
10,25,40,60,100 |
||
Precision |
C3 |
Insulation Resistance(MΩ) |
≥5000(VDC) |
Comprehensive Error(%F.S) |
0.02 |
Excitation Voltage(V) |
9~12(DC) |
Rated output(mv/v) |
2.0±0.002 |
Compensated temp.Range(°C ) |
-10~+40 |
Non-linearity(%F.S) |
0.017 |
Use Temp. Range(°C ) |
-40~+80 |
Hysteresis(%F.S) |
0.02 |
Temp.Effect on Zero(%F.S/10°C) |
0.017 |
Repeatability(%F.S) |
0.01 |
Temp.Effect on Span(%F.S/10°C) |
0.014 |
Creep(%F.S/30min) |
0.02 |
Safe Overload (%F.S) |
150 |
Zero Balance(%F.S) |
±1 |
Ultimate Overload(%F.S) |
200 |
Input Resistance(Ω) |
450±5 |
Defend Grade |
IP68 |
Output Resistance(Ω ) |
480±5 |
Cable (4PIN) |
10m |
CZL-401
Rated Load(t) |
10,20,25,30,40,50 |
||
Precision |
C3 |
Insulation Resistance(MΩ) |
≥5000(100VDC) |
Comprehensive Error(%F.S) |
0.03 |
Excitation Voltage(V) |
9~12(DC) |
Rated output(mv/v) |
1.5±0.004 |
Compensated temp.Range(°C ) |
-10~+40 |
Non-linearity(%F.S) |
0.017 |
Use Temp. Range(°C ) |
-35~+65 |
Hysteresis(%F.S) |
0.02 |
Temp.Effect on Zero(%F.S/10°C) |
0.017 |
Repeatability(%F.S) |
0.01 |
Temp.Effect on Span(%F.S/10°C) |
0.014 |
Creep(%F.S/30min) |
0.02 |
Safe Overload (%F.S) |
150 |
Zero Balance(%F.S) |
±1 |
Ultimate Overload(%F.S) |
200 |
Input Resistance(Ω) |
700±7 |
Defend Grade |
IP68 |
Output Resistance(Ω ) |
700±7 |
Cable (4PIN) |
10m |
CZL-402

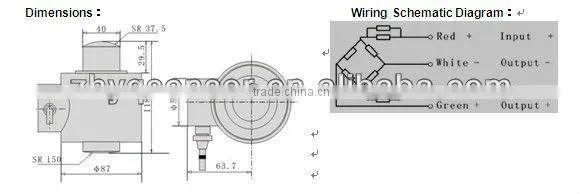

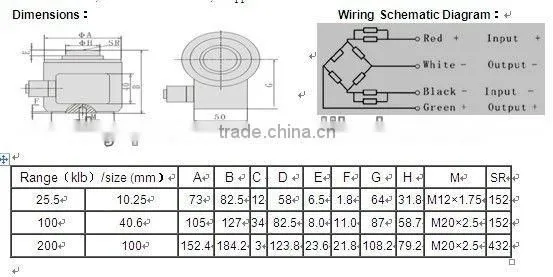

Dimensions
CZL-401
CZL-402
