Specifications
bridge style load cell1.high precision and reliability
2.small orders are available
3.CE&ISO9000 certified

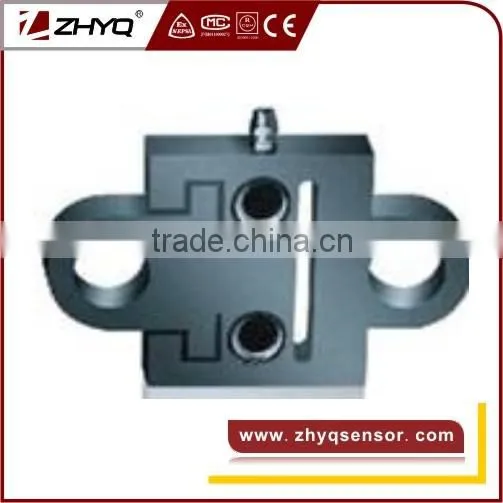

Alloy steel structure bridge style load cell
Description:
1,material:alloy steel
2.bridge type
3,cost effective
4,high capacity
5,high precision
6,strong anti-deflective loading
7,good shock resistance ,simple to install
Application
Suitable for automobile examination line, electronic scale, railroad scale, truck scales, etc.
Parameters
Rated Load(klb) |
1, 5, 25, 75 |
||
Precision |
C2 |
Insulation Resistance(MΩ) |
≥5000(1000VDC) |
Comprehensive Error(%F.S) |
0.03 |
Excitation Voltage(V) |
9~12(DC) |
Rated output(mv/v) |
3.0±0.006 |
Compensated temp.Range(°C ) |
-10~+40 |
Non-linearity(%F.S) |
0.03 |
Use Temp.Range(°C ) |
-20~+55 |
Hysteresis(%F.S) |
0.02 |
Temp.Effect on Zero(%F.S/10°C) |
0.03 |
Repeatability(%F.S) |
0.01 |
Temp.Effect on Span(%F.S/10°C) |
0.02 |
Creep(%F.S/30min) |
0.03 |
Safe Overload (%F.S) |
150 |
Zero Balance(%F.S) |
±1 |
Ultimate Overload(%F.S) |
200 |
Input Resistance(Ω) |
700±5 |
Defend Grade |
IP65 |
Output Resistance(Ω ) |
700±5 |
Cable(4PIN) |
RWP4*12/0.15*10m |
CZL-133
Rated Load(t) |
1~2, 2.5~5, 10, 20~30 |
||
Precision |
C1 |
Insulation Resistance(MΩ) |
≥5000(100VDC) |
Comprehensive Error(%F.S) |
0.05 |
Excitation Voltage(V) |
9~12(DC) |
Rated output(mv/v) |
2.0±0.004 |
Compensated temp.Range(°C ) |
-10~+40 |
Non-linearity(%F.S) |
0.05 |
Use Temp.Range(°C ) |
-35~+65 |
Hysteresis(%F.S) |
0.05 |
Temp.Effect on Zero(%F.S/10°C) |
0.03 |
Repeatability(%F.S) |
0.03 |
Temp.Effect on Span(%F.S/10°C) |
0.02 |
Creep(%F.S/30min) |
0.02 |
Safe Overload (%F.S) |
150 |
Zero Balance(%F.S) |
±1 |
Ultimate Overload(%F.S) |
200 |
Input Resistance(Ω) |
700±5 |
Defend Grade |
IP68 |
Output Resistance(Ω ) |
700±5 |
Cable (4PIN) |
,3m |
CZL-140

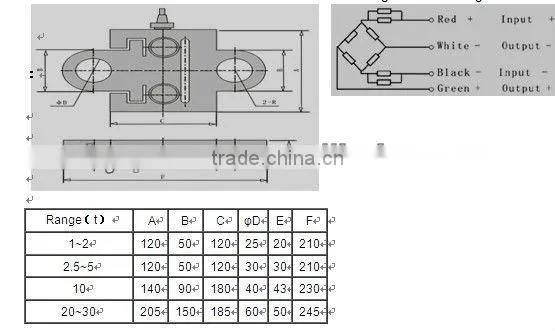

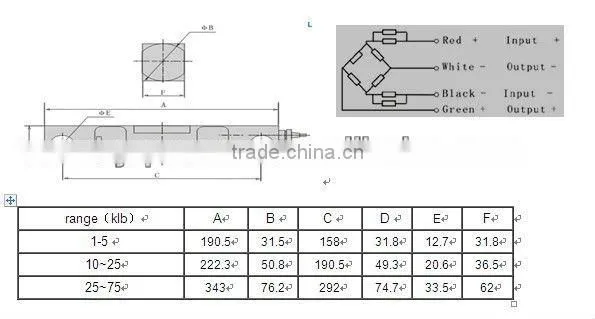

Dimensions
CZL-133
CZL-140
