Description

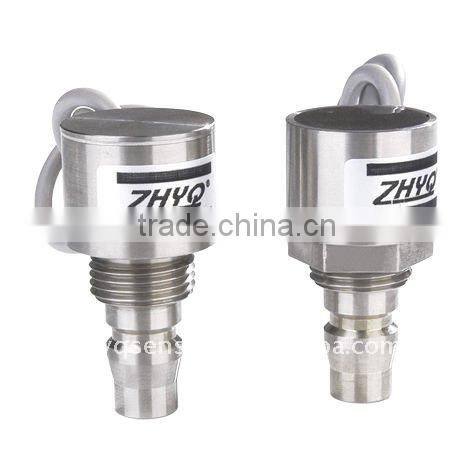

PT124B-223 is small volume plug and play seal type water level sensor in hot sales . it is Plug-and-play seal type level sensor adopts digital circuit compensated technology, with the advantages of high accuracy, high stability, small volume. The digital signal output is designed directly by ZHYQ, this model adopts ZAC wire one-wire serial interface.
Application
Plug-and-play seal type level sensor is suitable for liquid pressure measuring and controlling for water monitoring, sewage treatment and other industrial processes.
Specification
Name |
small volume plug and play seal type water level sensor in hot sales |
Model |
PT124B-223 |
Pressure range |
0-1mH2O, 0-150mH2O |
Over load |
150%FS |
Output |
4-20mA, 0-5V, 0.5-4.5V, 0-100%,Hz |
Power supply |
12~36VDC; 5VDC |
Combine error |
±0.25%FS; ±0.5% FSO(Including Linearity, Repeatability & Hysteresis) |
Long term stability |
≤ +/-0.2%FS/year |
Repeatability |
≤ +/- 0.2%FSO |
Response time |
<10ms |
Pressure connection |
Plug and play |
Operating temperature |
0°C-85°C |
Temperature compensation |
0°C- 65°C |

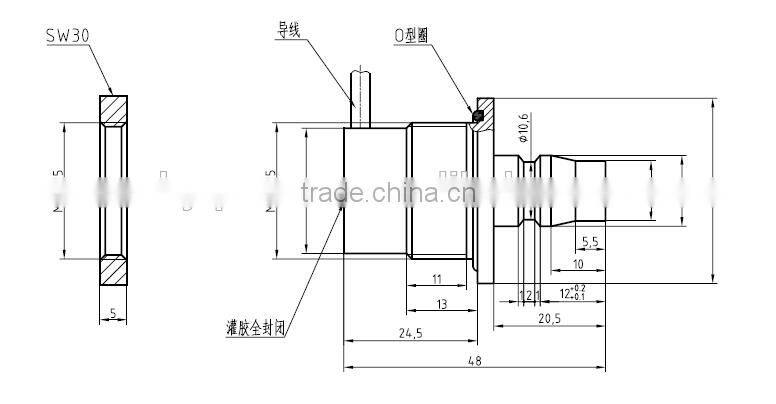

Dimension
Order guide with "* "are required , with "---"is optional
Model |
Range(bar) |
Output |
Screw thread |
Cable length |
Other requirements |
* |
* |
* |
* |
* |
--- |
Example:PT124B-223-20m H2O -4/20mA-5m cable | |||||
Our products are widely used in the field of hydraulic pressure, air pressure, petrochemical industry, automotive, air condition and compressor, construction machinery, plastic extrusion, chemical fiber, plastic rubber machine, non-woven fabrics and etc.
ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
