Description

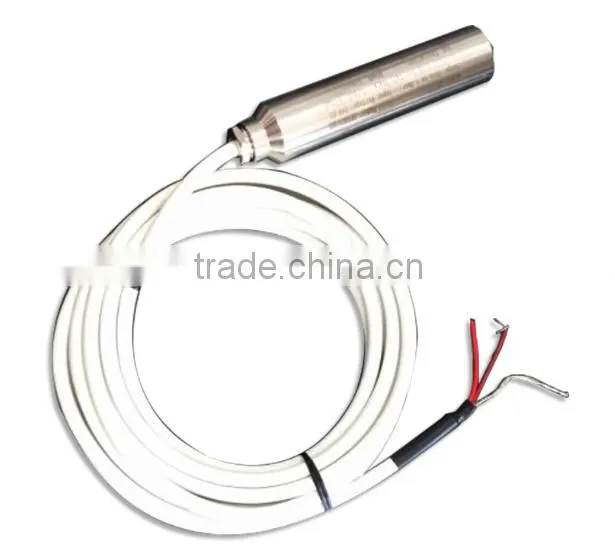

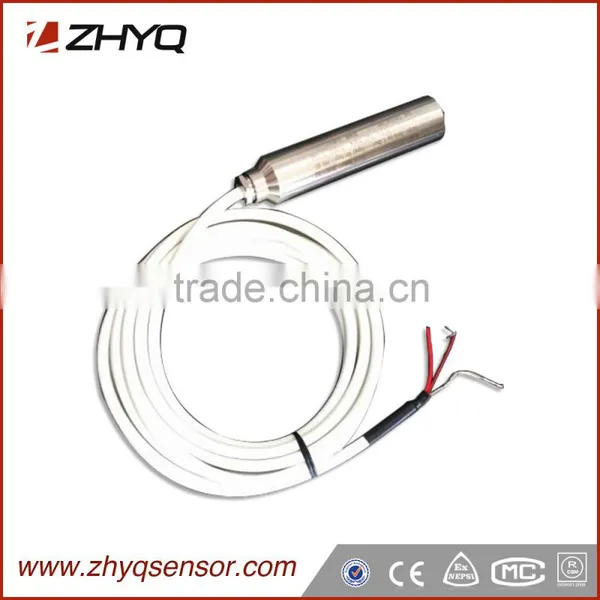

PT124B-224 is fuel or oil application immersion Level sensor , this series anti-corrosive level transmitter can be used for detecting the level of various strong corrosive liquid. The probe and cable of the level sensor adopt Teflon, it can directly deep into the container to sense the changes of the liquid level, the transmitter adopts full solidified and sealed module structure. The water level transmitter advantages of this device are stronger anti-corrosive, stong acidity or alkaline liquid ,petroleum, metallurgy, Hydraulic, Chemical liquid ,simply structure, easy to install, versatility, and it is suitable for monitoring of various liquid level.
Feature
Wide measuring ranges
Corrosion Proof, moist proof, frost proof, seepage prevention
SS316L housing material , F4 vented cable
Various signal output for industrial standard, flexible calibration
immersion type ,High accuracy, good stability
Application
Liquid level measuring
Building automation, constant pressure water supply
Metallurgy, machine, Environmental Protection
Medical treatment, marine , seawater
suitable for stong acidity or alkaline liquid ,petroleum, metallurgy, Hydraulic,
Chemical liquid city water supply, sewage treatment, hygrometry and etc.
Specification
Name |
fuel or oil application immersion Level sensor |
Model |
PT124B-224 |
Pressure range |
0 ~ 1mH2O~50mH2O |
Over load |
150%FS |
Output |
4-20mA, 0-5V, 0-10V |
Power supply |
12~36VDC |
Combine error |
±0.5% FSO (Including Linearity, Repeatability & Hysteresis ) |
Response time |
<10ms |
Repeatability |
≤ +/- 0.2%FSO |
Long term stability |
≤ +/-0.2%FS/year |
Pressure connection |
screw thread, throw-in type |
Operating temperature |
-20°C ~ 85°C |
Temperature compensation |
-10°C ~ 60°C |
housing material |
SS316L , F4 (Teflon) |
vented cable material |
Teflon |
Protection grade |
IP68 |
Dimension
Order Guide : with "* "are required , with "---"is optional
Our products are widely used in the field of hydraulic pressure, air pressure, petrochemical industry, automotive, air condition and compressor, construction machinery, plastic extrusion, chemical fiber, plastic rubber machine, non-woven fabrics and etc.
ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
