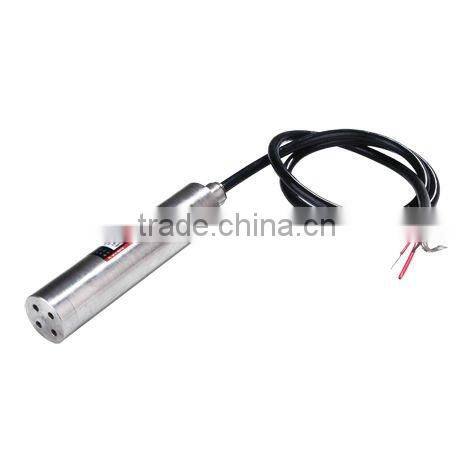

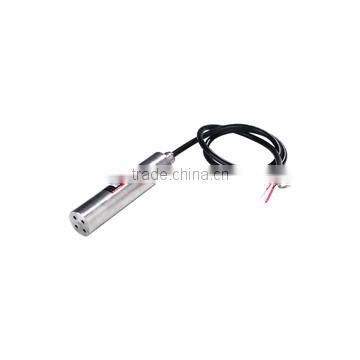

0-5V output immersion type water level sensor
- 6000 Piece / Pieces per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Place of Origin: | Shanghai, China | Brand Name: | ZHYQ | Model Number: | PT124B-220 |
Product Description
Description
PT124B-220 is 0-5V output immersion type water level sensor . this series immersion level sensor adopts high performance diffused silicon piezoresistive pressure sensor as the measuring element, The consummate encapsulation technology and perfect assembly process insure the quality and performance of this series with high stability, leakage proof. it with the reliable amplified circuit and precision temperature compensation, to measure medium to standard voltage or current signal. This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.
Feature
Wide measuring ranges
Corrosion Proof, moist proof, frost proof, seepage prevention
Various signal output for industrial standard, flexible calibration
High accuracy, good stability
immersion type , vented cable , easy install
Application
liquid Level measuring
Building automation, constant pressure water supply
Metallurgy, machine, Environmental Protection
Medical treatment, water treatment , city water supply
petroleum , oil
Specification
Name | 0-5V output immersion type water level sensor |
Model | PT124B-220 |
Pressure range | 0 ~ 1mH2O~100mH2O |
Over load | 150%FS |
Output | 4-20mA, 0-5V, 0-10V |
Power supply | 12~36VDC |
Combine error | ±0.5% FSO (Including Linearity, Repeatability & Hysteresis ) |
Response time | <10ms |
Repeatability | ≤ +/- 0.2%FSO |
Long term stability | ≤ +/-0.2%FS/year |
Pressure connection | screw thread, throw-in type |
Operating temperature | -20°C ~ 85°C |
Temperature compensation | -10°C ~ 60°C |
| Housing shell material | SS304 |
| Vented cable material | Polyethylene , Polyurethane |
Electric connector | Direct cable |
Protection grade | IP68 |
Dimension
Order Guide : with "* "are required , with "---"is optional
Our products are widely used in the field of hydraulic pressure, air pressure, petrochemical industry, automotive, air condition and compressor, construction machinery, plastic extrusion, chemical fiber, plastic rubber machine, non-woven fabrics and etc.
ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
