Description

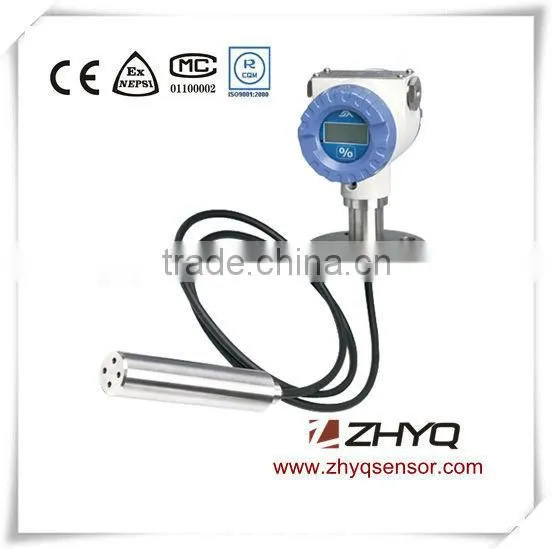

PT124B-221 is immersion type Level sensor with LED local display , this series is explosion proof level sensor with local display , it based on the standard level transmitter PT124B-220 to add LCD display indicator, standard 4-20mA (2 wires) output and it is explosion proof .This level sensor adopts superb encapsulation technology and perfect assembly process to make sure the products of long-term work without leakage, and the cable with vent tube . and all our level sensor makes the measurement value not affect by the external atmospheric changes, it is really a cost-effective product.
Feature
Digital circuit compensated technology
Moist proof, leakage proof
Local display , good stability
Diffused silicon high accuracy
Application
Hydraulic fields, environment protecting fields
Industrial process controlling fields
Petroleum, chemistry industry, medicine
city water supply, sewage treatment
hazard environment which need explosion proof and local display
Specification
Name |
immersion type Level sensor with LED local display |
Model |
PT124B-221 |
Pressure range |
0 ~ 50mH2O |
Over load |
150%FS |
Output |
4-20mA |
Local display |
LED |
Power supply |
12~36VDC |
Combine error |
±0.5% FSO (Including Linearity, Repeatability & Hysteresis ) |
Long term stability |
≤ +/-0.2%FS/year |
Repeatability |
≤ +/- 0.2%FSO |
Response time |
<10ms |
Pressure connection |
throw-in type |
Explosion proof grade |
ExiallCT4 |
Operating temperature |
-20°C ~ 85°C |
Temperature compensation |
-10°C ~ 60°C |
Protection grade |
IP68 |

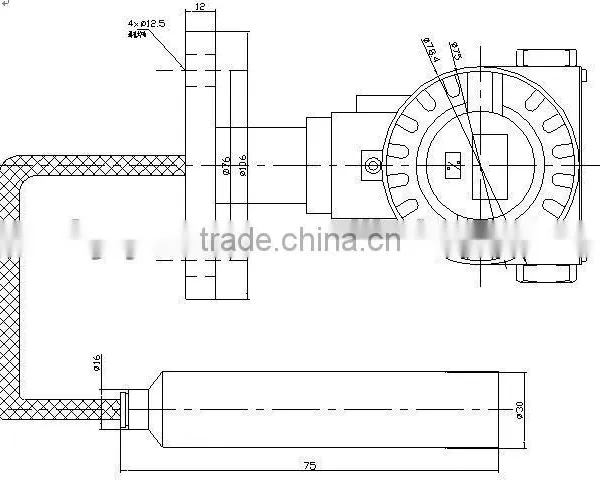

Dimension
Order Guide : with "* "are required , with "---"is optional
Our products are widely used in the field of hydraulic pressure, air pressure, petrochemical industry, automotive, air condition and compressor, construction machinery, plastic extrusion, chemical fiber, plastic rubber machine, non-woven fabrics and etc.
ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
