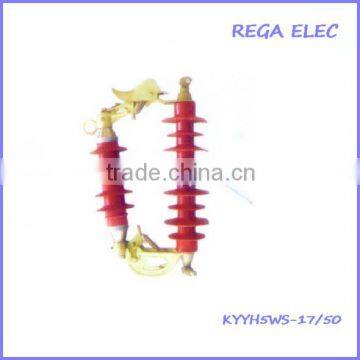

Detachable Type surge arrester,KYYH5WS-17/50, Power solutions,Power Factor Correction. Lightning Surge Arrester

FOB Price

USD $3 - $20 / Piece

1000 Pieces(Min.Order)

Supply Ability 20000 Piece / Pieces per Month
Port Shanghai
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	REGA
Model Number	KYYH5WS-17/50

Product Description

Specifications

1.ISO9001 quality management system
2.Own test laboratory
3.accordding to IEC60099-4 and IEEE(ANSI)C62.11
vide component

Detachable Type Lightning Arrester Technical Parameters
Model: KYYH5WS-17/50
Specification:
1)Rated voltage:17kV
2)Continuous working voltage:13.6kV
3)DC reference voltageNo less than:5KV

Manufacturing standard:
Chinese National Standard
Accord with Chinese national technical requirements GB 11032-2000 JB/T8952-2005, JB/T 10497-2005, DL/T815-2002

More Technical Parameters as below:

Any trial order in small quantity is welcomed.

Type	Rated voltage	MCOV	Nominal discharge current	D.C 1mA voltage	30/60us switching current impulse	8/20us lightning current impulse	1/4us lightning current impulse	2ms rectanglar current impulse withstand	4/10us high current impulse withstand	Leaking current
Type	kV	kV	kA	kV	kVp	kVp	kVp	A	kA	uA
KYYH5WS-17/50	17	13.6	5	25	42.5	50	57.5	100	65	15
KYYH5WZ-17/45	17	13.6	5	24	38.3	45	51.8	150	65	15

Please contact us now if you have any questions or requirements.
