Specifications
1.ISO9001 quality management system2.Own test laboratory
3.accordding to IEC60099-4 and IEEE(ANSI)C62.11
vide component

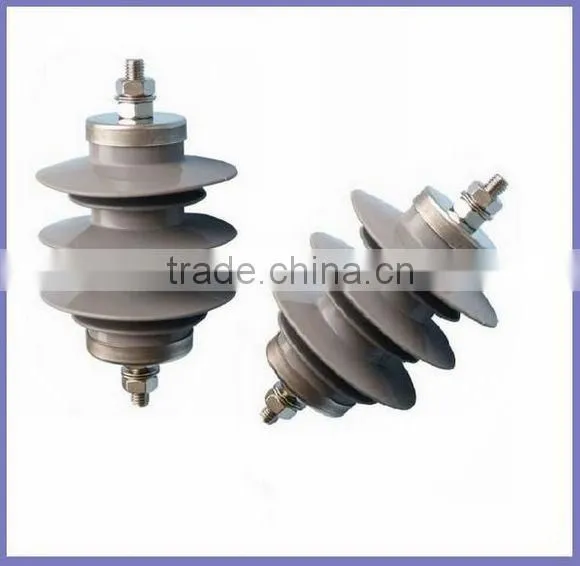

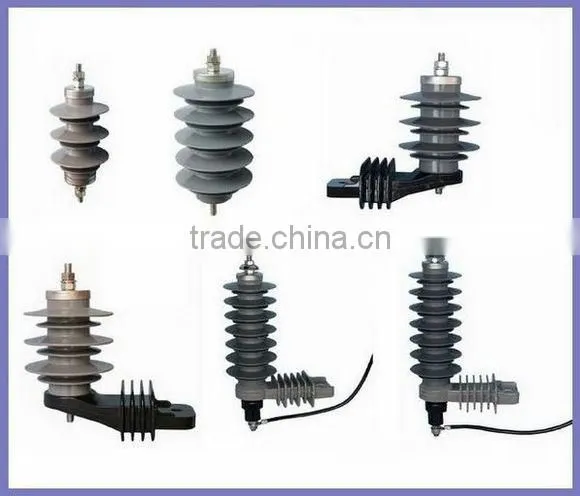

Metal-oxide surge arrester(Lightning arrster, polymer surge arrester)
Model:YH5W-9
Specifications:
1.ISO9001 quality management system
2.Own test laboratory
3.To provide the corresponding product components
4.The technical performance is accordding to IEC60099-4 and IEEE(ANSI)C62.11
Main Technical Parameter
Rated voltage r.m.s: 9kV
Nominal discharge current:5kA
Maximun continous operating voltage(Uc)(kV):7.65kV
Residual voltage at:
1/4μ s lightning current impulse residual voltage(kV):28.5(5kA)
8/20μ s lighting current impulse residual voltage(kV):25.9(5kA)
30/60μ s switching current impulse residual voltage(kV): 21.8(5kA)
Long duration current impulse withstand:
2ms rectangular current(A):100(5kA)
Operating duty:
4/10u s high current impulse(kA):65(5kA)
Creepage distance(mm):270mm
Dimension:240*200
Any trial order in small quantity is welcomed.
|
Type |
|
|
|
Current with stand |
Residual voltage |
|
H×B |
|||
|
2ms |
4/10us |
30/60us
|
8/20us
|
1/4us
|
||||||
|
Rated voltage |
MCOV |
Nominal discharge current |
2ms rectanglar current impulse withstand |
4/10us high current impulse withstand |
30/60us switching current impulse |
8/20us lightning current impulse |
1/4us lightning current impulse |
Creepage distance |
Size |
|
kV |
kV |
kA |
A |
kA |
kVp |
kVp |
kVp |
mm |
mm |
|
YH 5W-3 |
3 |
2.55 |
5 |
100 |
65 |
7.2 |
8.6 |
9.5 |
180 |
210×200 |
YH 5W-6 |
6 |
5.1 |
14.7 |
17.3 |
19.0 |
270 |
240×200 |
|||
YH 5W-9 |
9 |
7.65 |
21.8 |
25.9 |
28.5 |
270 |
240×200 |
|||
YH 5W-12 |
12 |
10.2 |
29.1 |
34.6 |
38.1 |
360 |
270×200 |
|||
YH 5W-15 |
15 |
12.8 |
36.3 |
43.2 |
47.5 |
450 |
300×200 |
|||
YH 5W-18 |
18 |
15.3 |
43.5 |
51.8 |
57.0 |
540 |
330×200 |
|||
YH 5W-21 |
21 |
17.9 |
50.7 |
60.4 |
66.4 |
630 |
375×206 |
|||
YH 5W-24 |
24 |
20.4 |
58.1 |
69.1 |
76.0 |
720 |
405×206 |
|||
YH 5W-27 |
27 |
23 |
65.3 |
77.7 |
85.5 |
810 |
435×206 |
|||
YH 5W-30 |
30 |
25.5 |
72.5 |
86.3 |
95.0 |
900 |
465×206 |
|||
YH 5W-33 |
33 |
28.1 |
79.8 |
95.0 |
104.5 |
900 |
465×206 |
|||
YH 5W-36 |
36 |
30.6 |
87.0 |
103.6 |
114.0 |
990 |
495×206 |
|||
Please contact us now if you have any questions or requirements.
