Low Voltage Surge Arrester,YH1.5W-0.28/1.3,Overvoltage Protector,Thunder Protection

Low Voltage Surge Arrester,YH1.5W-0.28/1.3,Overvoltage Protector,Thunder Protection thumbnail-1
Low Voltage Surge Arrester,YH1.5W-0.28/1.3,Overvoltage Protector,Thunder Protection photo-1
US$ 2 - 20 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
REGA
Model Number:
Model:YH1.5W-0.28/1.3
Contact Supplier Request Quote Chat Now
Jiaxing Rega Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name REGA
Model Number Model:YH1.5W-0.28/1.3

Specifications

1.Passed ISO9001 and IEC60099-4 standard.
2.The pass rate is up to 99.9%
3.OEM and sample is available.

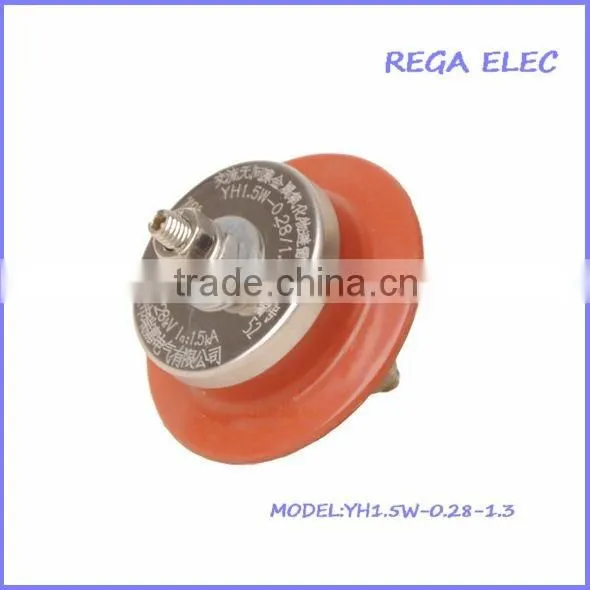

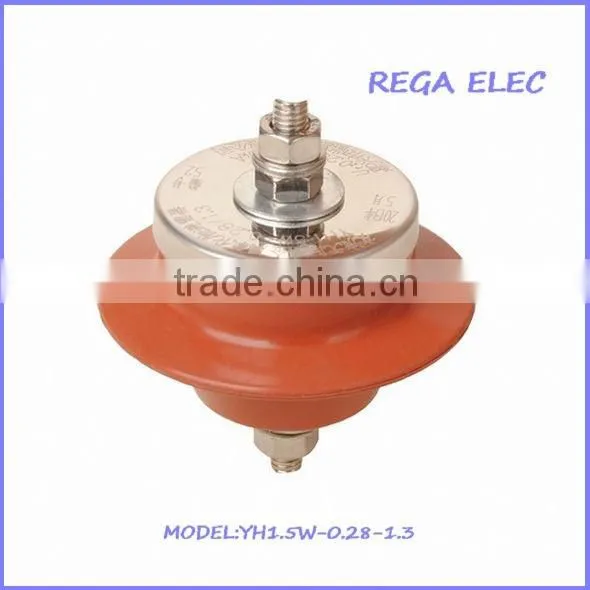

Metal -oxide surge arrester(Lightning arrster, polymer surge arrester)

Model: YH1.5W-0.28/1.3

Specification:
1)Rated voltage:0.28kV
2)Continuous working voltage:0.24kV
3)DC reference voltageNo less than:0.6KV

Manufacturing standard:
Chinese National Standard
Accord with Chinese national technical requirements GB 11032-2000 JB/T8952-2005, JB/T 10497-2005, DL/T815-2002

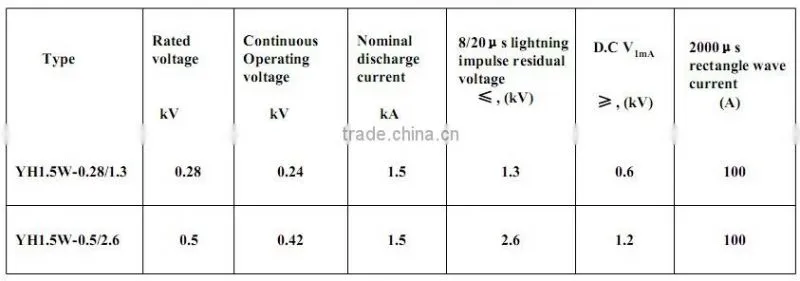

More Technical Parameters as below





Type



Rated

voltage





MCOV



Nominal discharge current

8/20us

lightning current impulse



D.C

1mA

voltage

2ms

rectanglar current impulse withstand



Leaking

current



kV

kV

kA

kVp

kV

A

uA

YH 1.5W-0.28/1.3

0.28

0.24

1.5

1.3

0.6

100

15

YH 1.5W-0.5/2.6

0.5

0.42

1.5

2.6

1.2

100

15



Any trial order in small quantity is welcomed.Low voltage Surge Arrester,YH1.5W-0.28/1.3,Overvoltage Protector,Thunder Protection



 Low voltage Surge Arrester,YH1.5W-0.28/1.3,Overvoltage Protector,Thunder Protection



Low voltage Surge Arrester,YH1.5W-0.28/1.3,Overvoltage Protector,Thunder Protection



 Low voltage Surge Arrester,YH1.5W-0.28/1.3,Overvoltage Protector,Thunder Protection



 Low voltage Surge Arrester,YH1.5W-0.28/1.3,Overvoltage Protector,Thunder Protection



Low voltage Surge Arrester,YH1.5W-0.28/1.3,Overvoltage Protector,Thunder Protection



Low voltage Surge Arrester,YH1.5W-0.28/1.3,Overvoltage Protector,Thunder Protection



Low voltage Surge Arrester,YH1.5W-0.28/1.3,Overvoltage Protector,Thunder Protection







Low voltage Surge Arrester,YH1.5W-0.28/1.3,Overvoltage Protector,Thunder Protection



Low voltage Surge Arrester,YH1.5W-0.28/1.3,Overvoltage Protector,Thunder Protection







Please contact us now if you have any questions or requirements.

Low voltage Surge Arrester,YH1.5W-0.28/1.3,Overvoltage Protector,Thunder Protection



Low voltage Surge Arrester,YH1.5W-0.28/1.3,Overvoltage Protector,Thunder Protection
