Specifications
1.Passed ISO9001 and IEC60099-4 standard.2.The pass rate is up to 99.9%
3.OEM and sample is available.

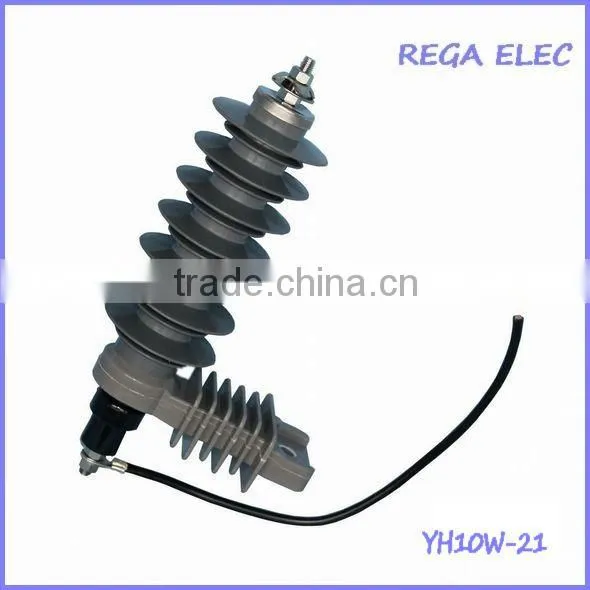

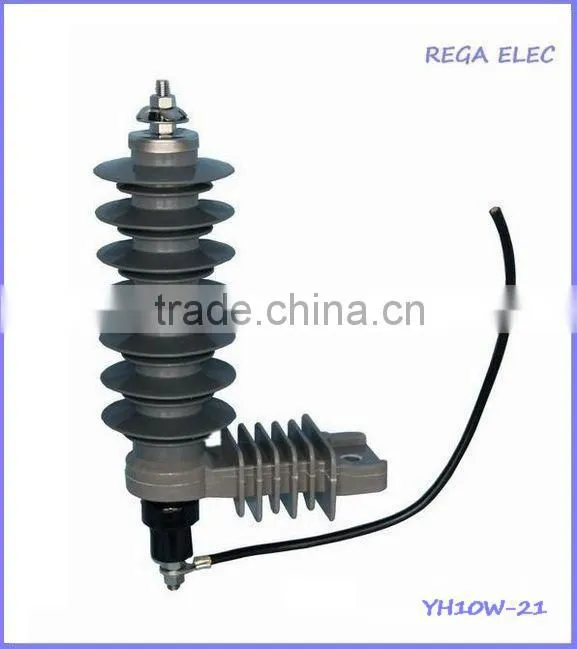

Metal -oxide surge arrester(Lightning arrster, polymer surge arrster)
Model:YH10W-21
Specifications:
1.ISO9001 quality management system

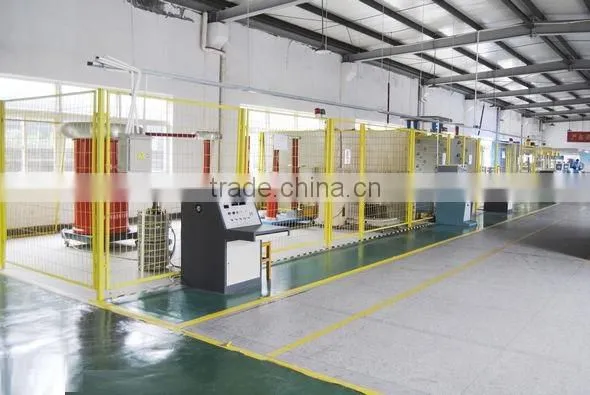

2.Own test laboratory
3.To provide the corresponding product components
4.The technical performance is accordding to IEC60099-4 and IEEE(ANSI)C62.11
Main Technical Parameter
Rated voltage r.m.s: 21kV
Nominal discharge current:10kA
Maximun continous operating voltage(Uc)(kV):17.9kV
Residual voltage at:
1/4μ s lightning current impulse residual voltage(kV):68.3
8/20μ s lighting current impulse residual voltage(kV):62.1
30/60μ s switching current impulse residual voltage(kV): 52.2
Long duration current impulse withstand:
2ms rectangular current(A):250
Operating duty:
4/10u s high current impulse(kA):100
Creepage distance(mm):700mm
Dimension:375*211mm
Any trial order in small quantity is welcomed.
Export-oriented Lightning Arrester Technical Parameters
|
Type |
Rated voltage |
MCOV |
Nominal discharge current |
2ms rectanglar current impulse withstand |
4/10us high current impulse withstand |
30/60us switching current impulse |
8/20us lightning current impulse |
1/4us lightning current impulse |
Creepage distance |
Size |
kV |
kV |
kA |
A |
kA |
kVp |
kVp |
kVp |
mm |
mm |

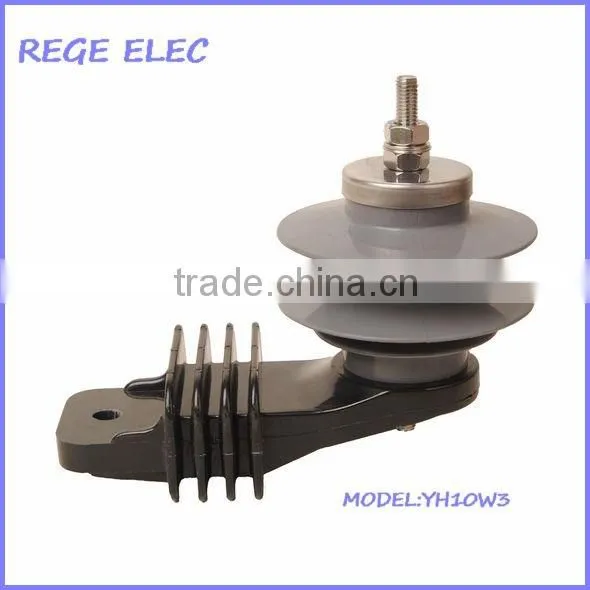

YH 10W-3 |
3 |
2.55 |
10 |
250 |
110 |
7.5 |
8.9 |
9.8 |
200 |
210×204 |

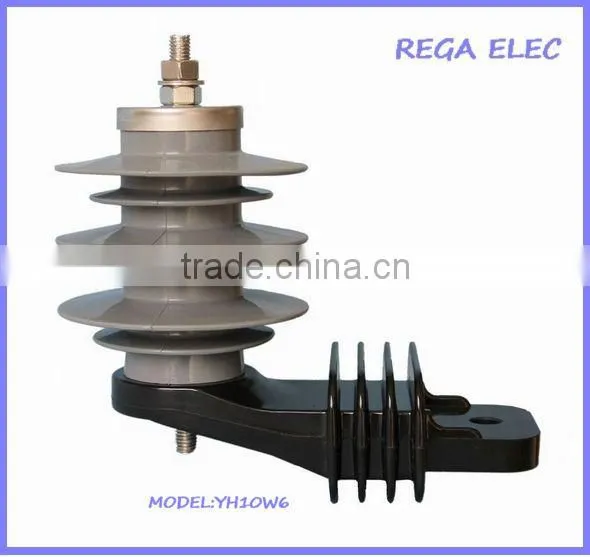

YH 10W-6 |
6 |
5.1 |
14.9 |
17.7 |
19.5 |
300 |
240×204 |
|||

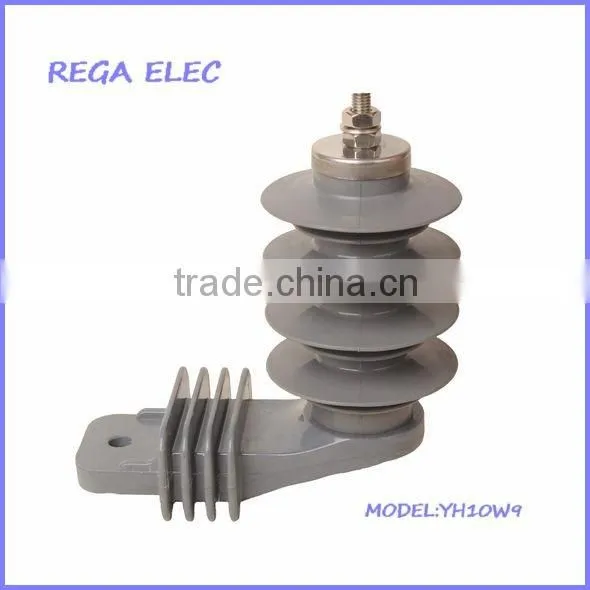

YH 10W-9 |
9 |
7.65 |
22.3 |
26.6 |
29.3 |
300 |
240×204 |
|||
YH 10W-12 |
12 |
10.2 |
29.8 |
35.5 |
39.1 |
400 |
270×204 |
|||

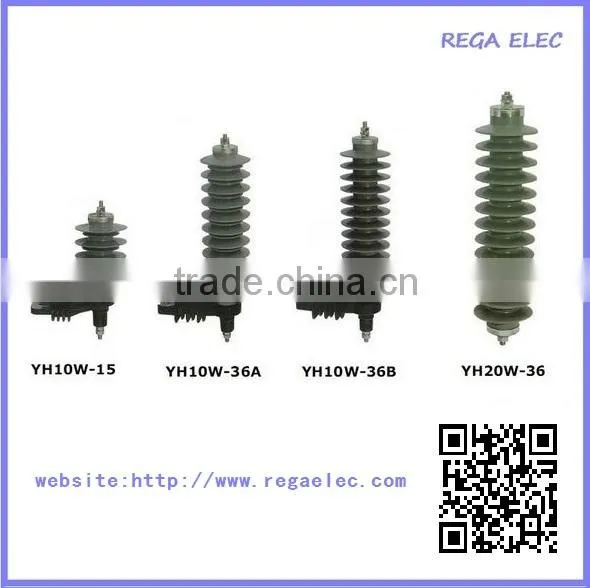

YH 10W-15 |
15 |
12.8 |
37.2 |
44.3 |
48.7 |
500 |
300×204 |
|||

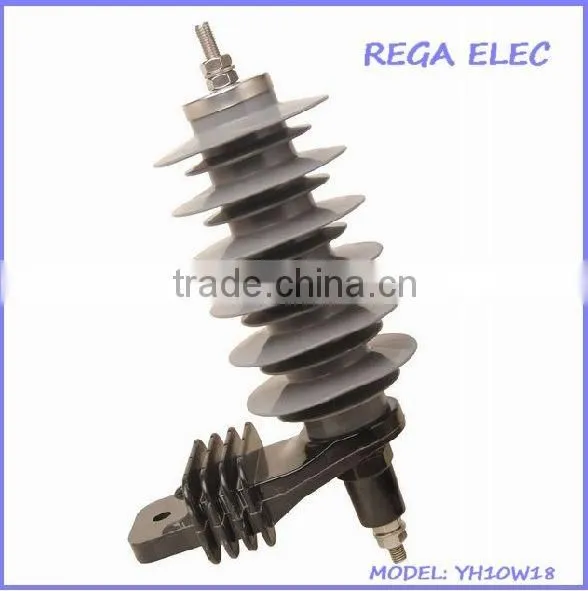

YH 10W-18 |
18 |
15.3 |
44.7 |
53.2 |
58.5 |
600 |
330×204 |
|||
YH 10W-21 |
21 |
17.9 |
52.2 |
62.1 |
68.3 |
700 |
375×211 |
|||

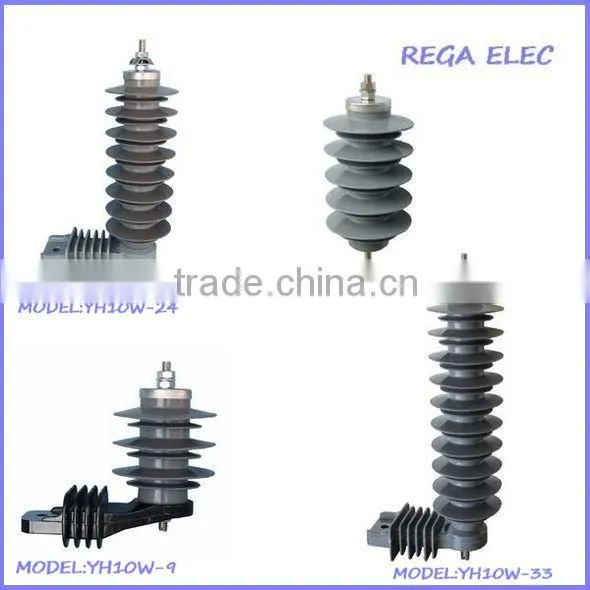

YH 10W-24 |
24 |
20.4 |
59.6 |
71.0 |
78.1 |
800 |
405×211 |
|||
YH 10W-27 |
27 |
23.0 |
67.0 |
79.8 |
87.8 |
900 |
435×211 |
|||
YH 10W-30 |
30 |
25.5 |
74.5 |
88.7 |
97.6 |
1000 |
465×211 |
|||
YH 10W-33 |
33 |
28.1 |
81.9 |
97.5 |
107.3 |
1000 |
465×211 |
|||
YH 10W-36 |
36 |
30.6 |
89.4 |
106.4 |
117.0 |
1100 |
495×211 |
Please contact us now if you have any questions or requirements.
