Specifications
1.ISO9001 quality management system2.Own test laboratory
3.accordding to IEC60099-4 and IEEE(ANSI)C62.11
vide component
Distribution, Power Station Type Lightning Arrester Technical Parameters

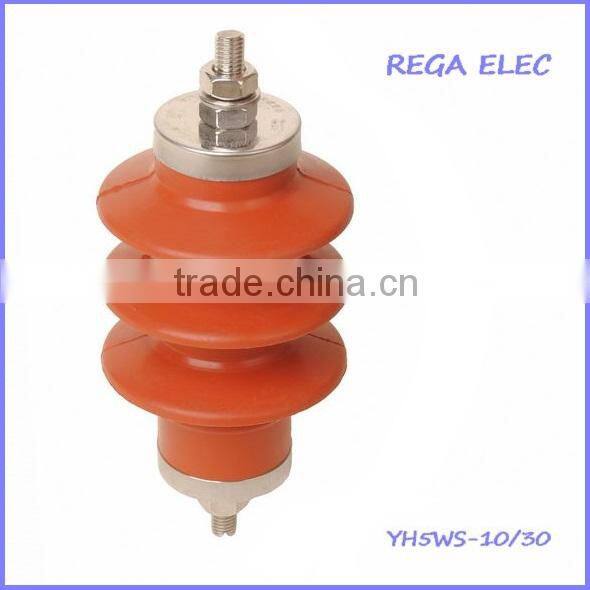

Model: YH5WS-10/30
Specification:
1)Rated voltage:6kV
2)Continuous working voltage:8kV
3)DC reference voltageNo less than:5KV
Manufacturing standard:
Chinese National Standard
Accord with Chinese national technical requirements GB 11032-2000 JB/T8952-2005, JB/T 10497-2005, DL/T815-2002
More Technical Parameters as below:
Any trial order in small quantity is welcomed.
|
Type |
Nominal System voltage |
Rated voltage |
MCOV |
Nominal discharge current |
D.C 1mA voltage |
30/60us switching current impulse |
8/20us lightning current impulse |
1/4us lightning current impulse |
2ms rectanglar current impulse withstand |
4/10us high current impulse withstand |
kV |
kV |
kV |
kA |
kV |
kVp |
kVp |
kVp |
A |
kA |
|
YH5WS-10/30 |
6 |
10 |
8.0 |
5 |
15 |
25.5 |
30 |
34.5 |
100 |
65 |

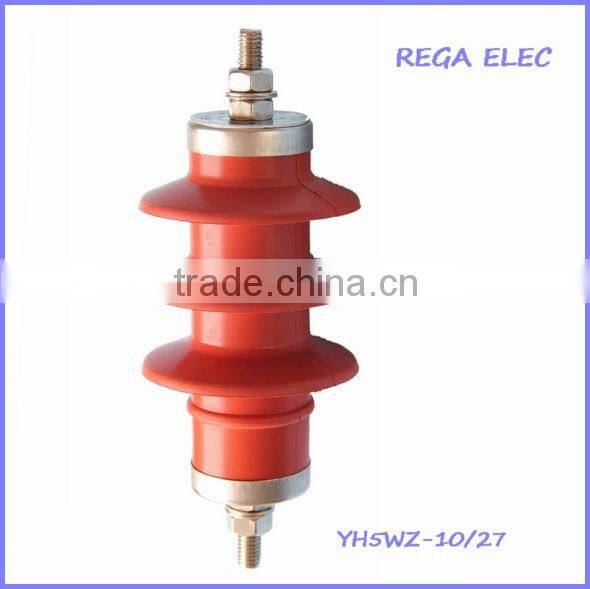

YH5WZ-10/27 |
6 |
10 |
8.0 |
5 |
14.4 |
23.0 |
27 |
31.0 |
150 |
65 |

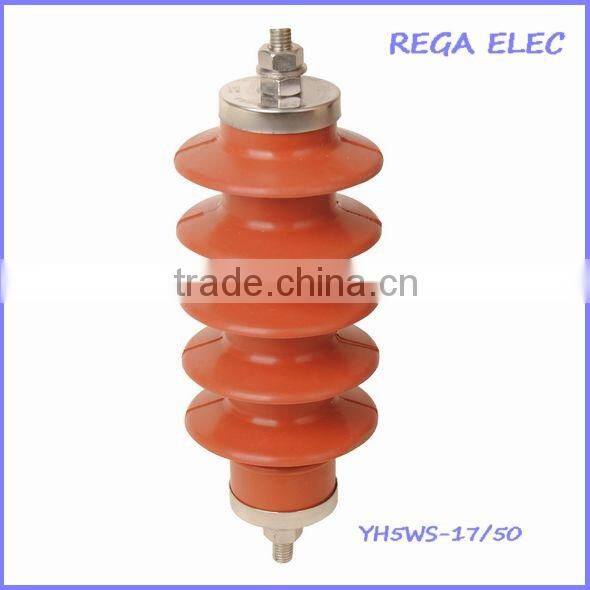

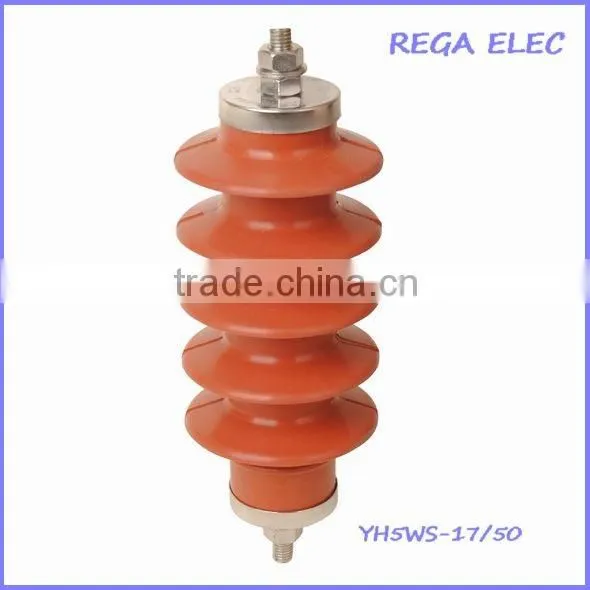

YH5WS-17/50 |
10 |
17 |
13.6 |
5 |
25 |
42.5 |
50 |
57.5 |
100 |
65 |
YH5WZ-17/45 |
10 |
17 |
13.6 |
5 |
24 |
38.3 |
45 |
51.8 |
150 |
100 |
YH5WZ-51/134 |
35 |
51 |
40.8 |
5 |
74.0 |
114 |
134 |
154 |
300 |
100 |
Please contact us now if you have any questions or requirements.
