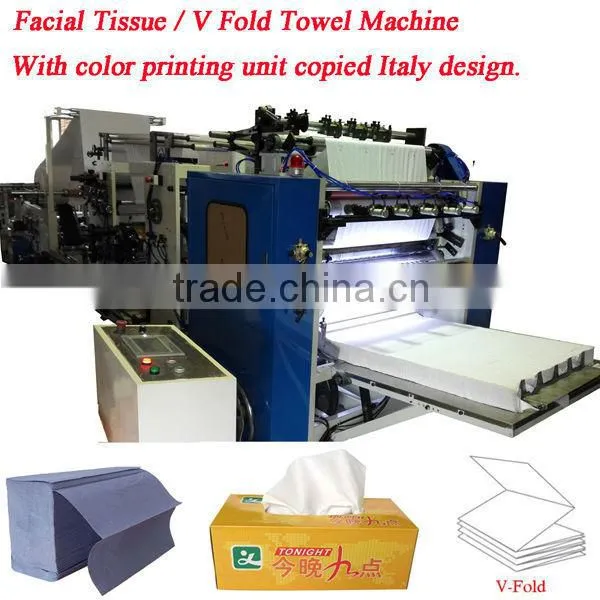

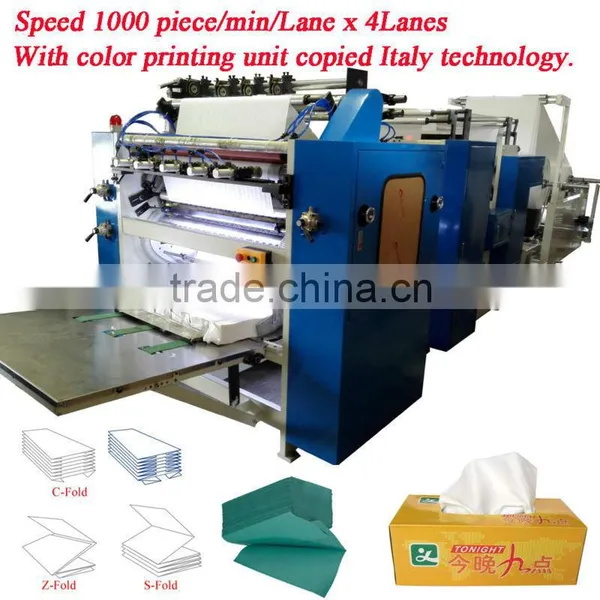

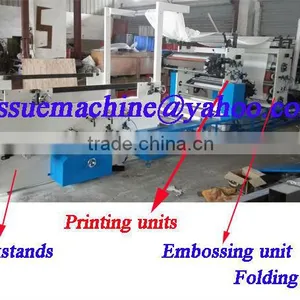

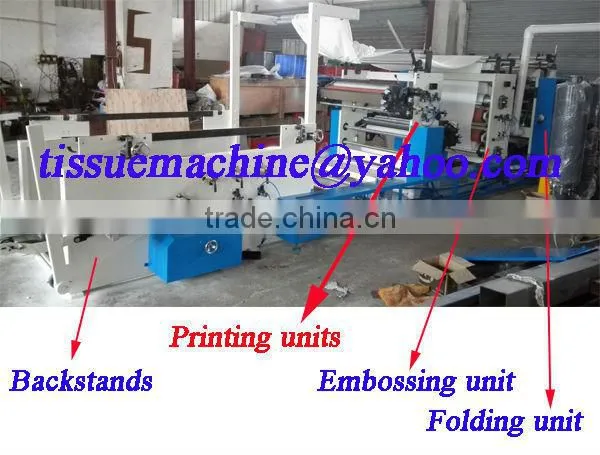

Italy Design Embossing Laminating Printing High Speed Automatic Home Use Tissue Machine

Model

VTM-4L-P

Use

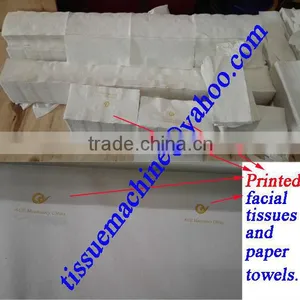

Production of facial tissues and interfold V fold hand towel. Two produced by One machine

Raw material

13-45gsm 2-ply or 1-ply virgin tissue or other tissues.

Jumbo roll size

840mm width x 1100 mm diameter. Other sizes available. Width can be up to 2500mm.

Unfolded size

200±2mm x 210mm. Other size 190x190mm, 210x210mm, 230x250mm etc. available. Please specify.

Folded size

100±2mm x 210mm. One cutting size is adjustable

Folding Type

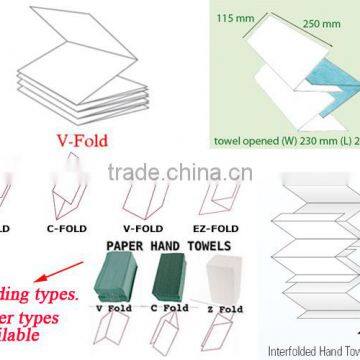

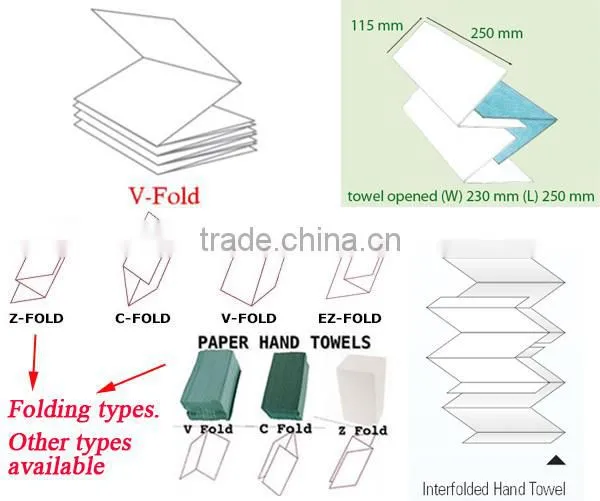

V fold/Interfold/vacuum fold.

Other folding like N/Z/W/M/C folds are available.

Folding and Cutting Section

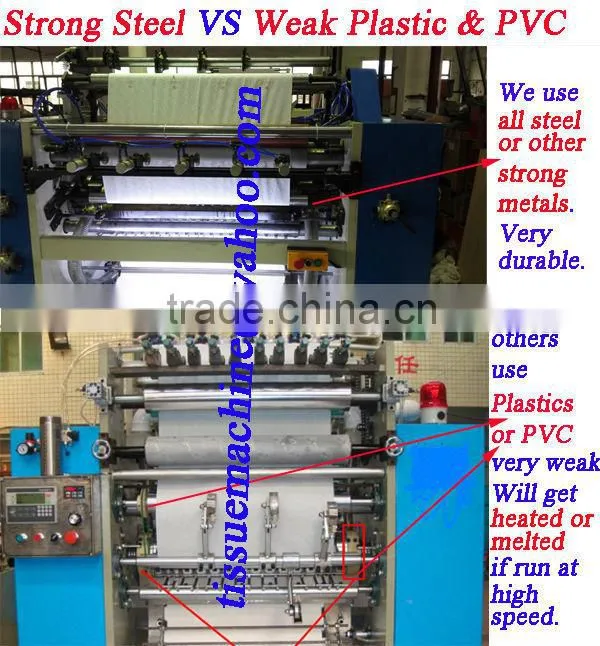

Thickened Floor standing wallboard structure(Full steel plate) so that the machine is running at high speed without vibration.

With automatic left-right stagger counting system, each stack of 50sheets, 100sheets, 200sheets etc. adjustable.

With variable speed hand wheels to control web tension.

With slitting blades on the top of the machine to cut the tissues, sizes adjusted flexibly.

With Static Eliminator to prevent static from tissue paper tansferring to machine and operator.

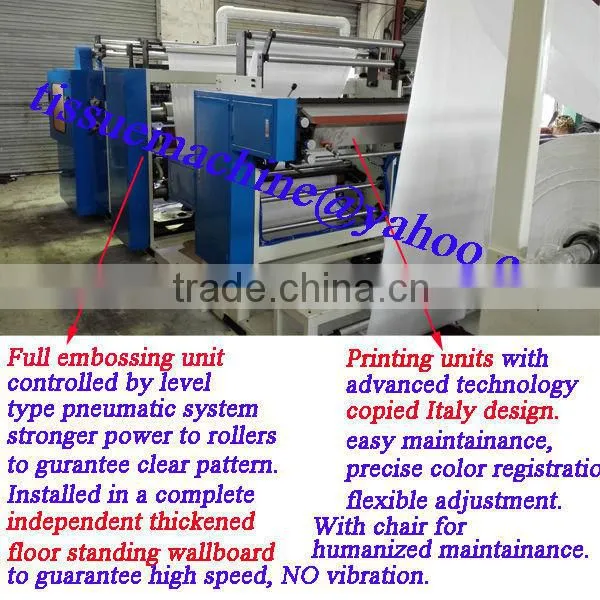

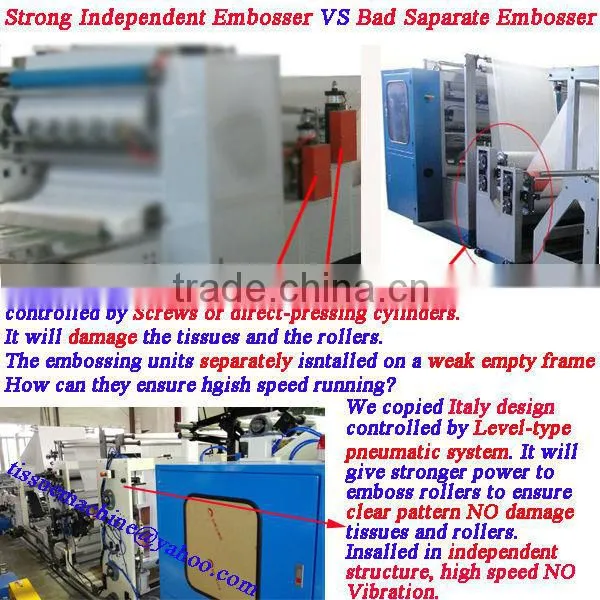

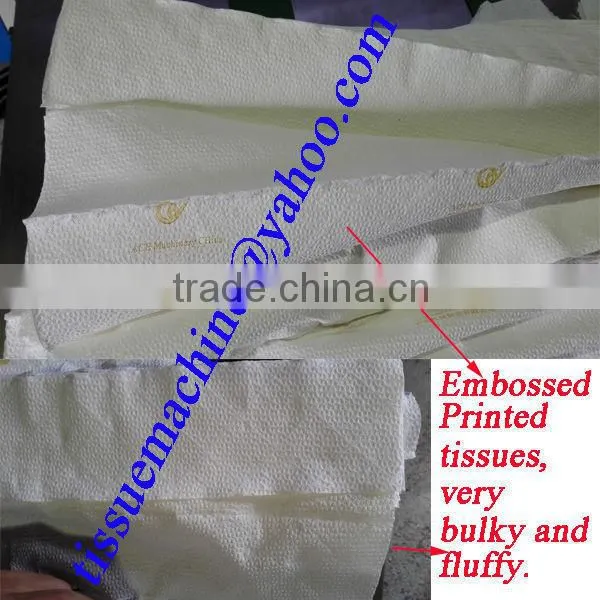

Full Embossing Section

With 2 set of steel-to-rubber embossing rollers(Pattern provided by client)

Embossing units installed in a complete Thickened Floor-standing wallboard structure(Full steel plate), to ensure high speed running NO vibration.

Controlled by NEW design level-type pneumatic system copied Italy technology, not traditional old design controlled by screws or direct-pressing cylinders.

Edge embossing Section

Optional NEW design copied Italy technology.

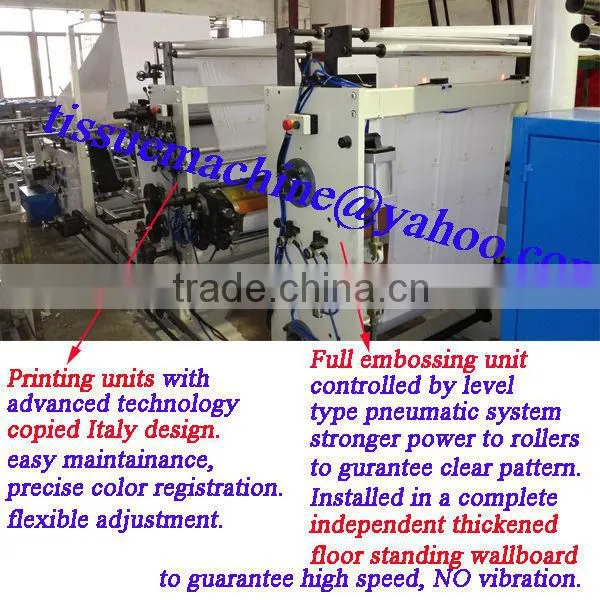

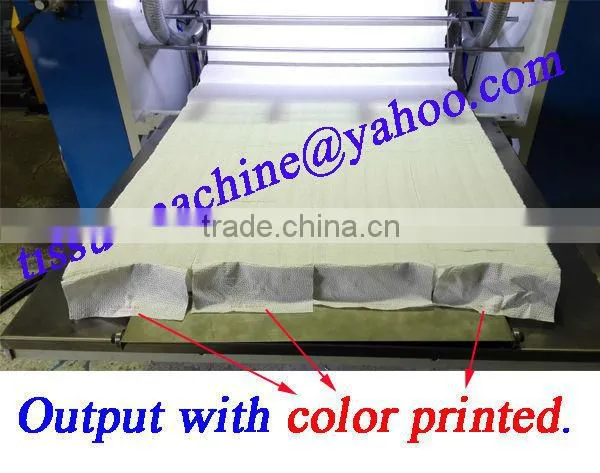

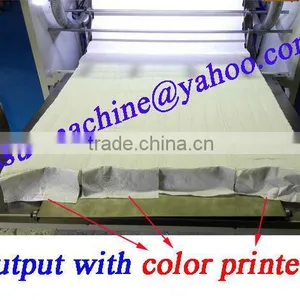

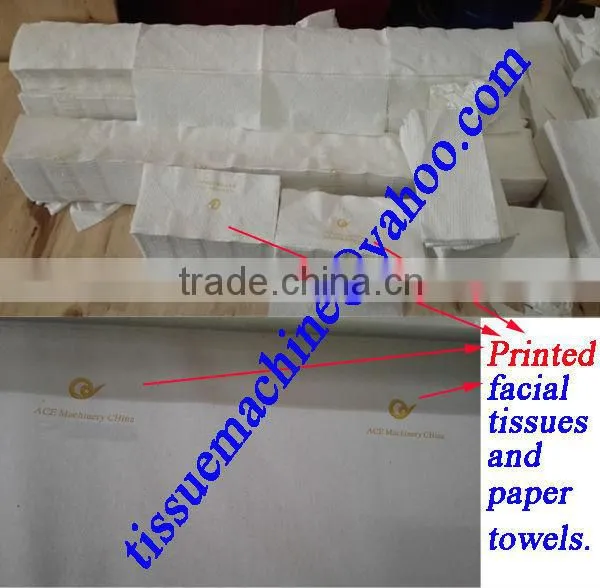

Printing Section

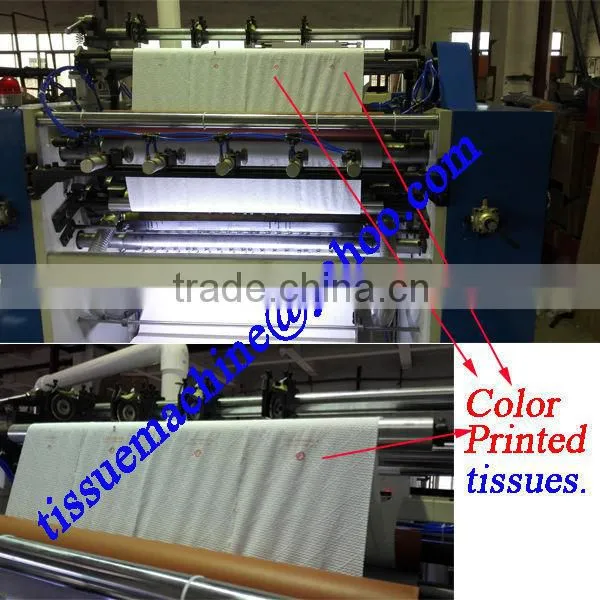

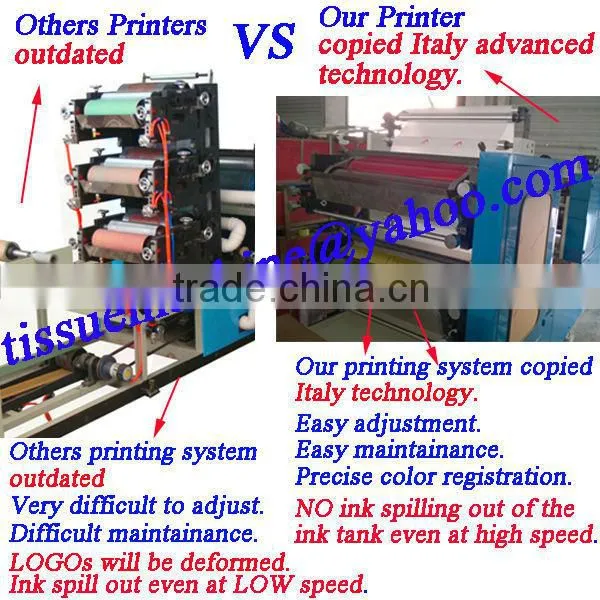

With single color(2 sets) flexo-graphic printer section. 2, 3, 4 colors optional.

Printing unit with driven by timing belts to make printing more precise.

Between printing color to color location which will accept ±1-2 mm tolerance.

With New Register device, Register adjustment color to color position will use 360° rotation speed modulators device which is easy to adjust.

Simple and easy adjustment of horizontal and longitudinal registration by turning hand wheel.

Laminating unit

Optional

Unwind stand

2 unwind stands, controlled pneumatic cylinders, with feeding belts.

With pneumatic system to load the jumbo rolls automatically.

With paper web tension control systems to adept the machine to jumbo rolls of different quality and gsm.

Equipped with hand wheel or independent motor to adjust the jumbo roll to the left/right.

Equipped with sensors to dectect the jumbo roll, if finished, machine will automatically alarm and stop.

Auto Web tension control system is optional.

Auto edge guiding system is optional.

Control system

Main motor controlled by inverter, international brands from Taiwan, Japan, Germany etc.

Frequency speed control

With JOG devices (step by step for passage and adjusting paper).

Emergency stop if paper breaks or finished.

Start machine with alarm beeper.

Air pressure:0.5Mpa(buyer supply)

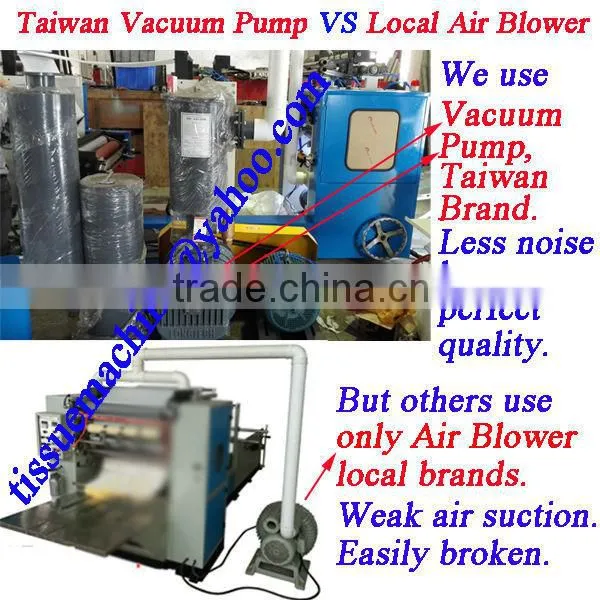

Installed Power

4KW main motor, 15KW vacuum pump 3-phase AC380V 50HZ or 3-phase 220V 60Hz, or customized.

Machine Size

6000x1500x1900mm

Weight

4500KG
